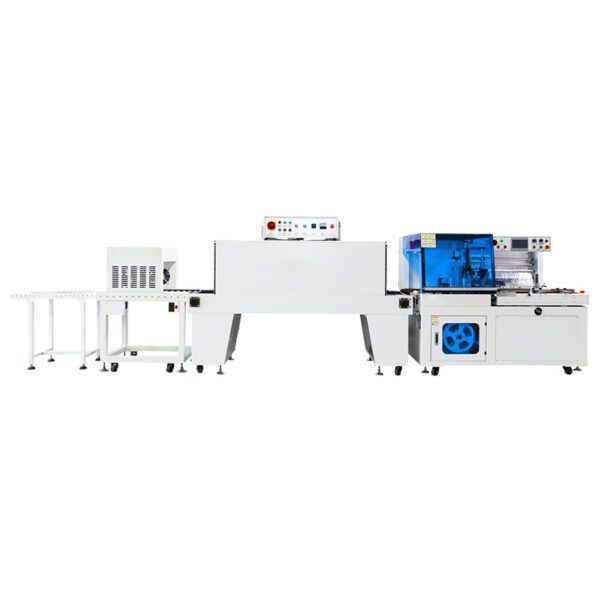

Basic parameters of the Edge Sealing Machine + Heat Shrink Machine + Fan Cooling
Product name | Edge Sealing Machine | Heat Shrink Machine |
Dimensions | L1950mm×W1360mm×H1550mm | L2400mm×W1000mm×H1700mm |
Maximum sealing size | L700mm | |
Maximum packaging size | Unlimited L×W580mm×H200W+H<650mm | |
Heat shrink oven size | L1500mm×W600mm×H300mm | |
Packaging speed | 20-30pcs/min | 2500-3500pcs/h |
Net weight | 450kg | 650kg |
Power | 2.5kw | 22kw |
Power supply | 3φ380V 50/60Hz | 3φ380V 50/60Hz |
Applicable gas source | 5.5kg/cm² |
Features
- Anti-stick and high-temperature sealing knife. The surface of the sealing knife is coated with Teflon, which is anti-stick and high-temperature resistant, and the seal will not crack or scorch. No smoke and zero pollution, the sealing and cutting lines are thin and the effect is beautiful.
- Stainless steel multi-position hole punch. It is convenient for the air in the bag to be quickly discharged when the product is heat-shrunk, making the packaging effect smooth and beautiful.
- Adjust the height and width of the sealing and cutting machine according to the size of the product, and the operation is simple and convenient.
- Pouching, sealing and cutting, and heat shrinking are all done in one step. Fully automated operation greatly improves packaging efficiency and can be used in conjunction with the packaging assembly line.
- It has wide application range, high economic benefit and good packaging effect. Widely used in food, beverages, daily chemicals, medicine, and cosmetics
- Electronics, electrical appliances, hardware products and other industries.
