Drinking Water Filling Line Manufacturer Bottling System

Product introduction for Drinking Water Filling Line

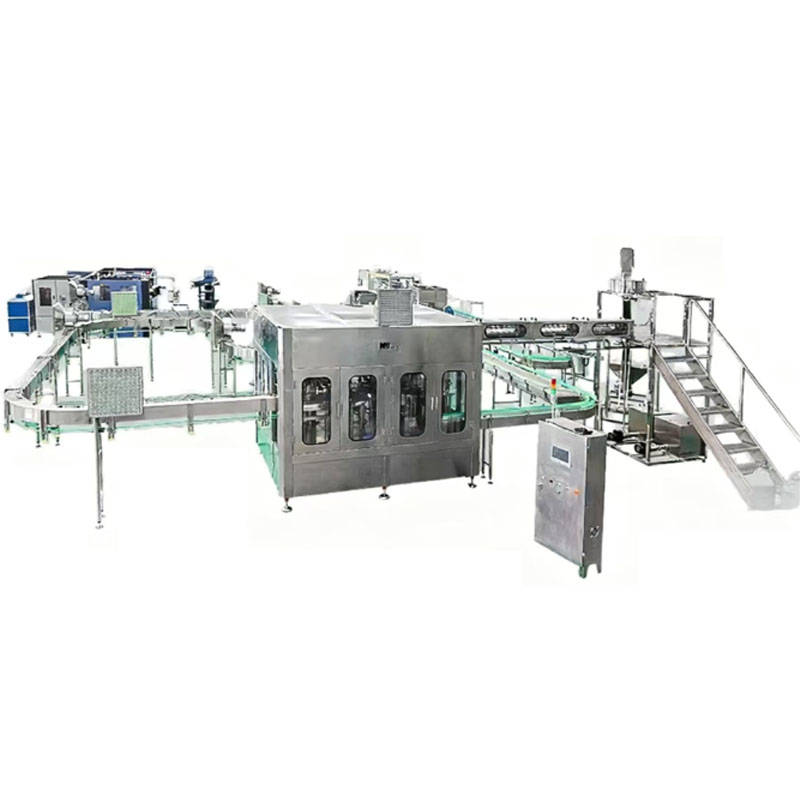

The drinking water filling line is an advanced automatic bottling system integrating rinsing, filling, and capping into a single monoblock machine. It is widely used in purified water production plants, mineral water factories, and beverage manufacturing industries.

The system adopts advanced bottle-neck suspending technology, allowing stable high-speed operation while supporting multiple bottle types with minimal changeover parts. Equipped with PLC control and human-machine interface touch screen, it ensures intelligent automation and production stability.

Working principle

Step 1: Bottle Feeding & Positioning

Empty bottles are automatically conveyed and positioned by the bottle-neck suspending system.

Step 2: Bottle Inversion & Rinsing

Bottles are inverted 180° and rinsed internally using SS grab system without contact contamination.

Step 3: Bottle Repositioning

After rinsing, bottles are rotated back to upright position for filling.

Step 4: Gravity Filling Process

Liquid is filled using advanced gravity filling technology for stable and accurate volume control.

Step 5: Capping Transfer

Filled bottles are transferred via star wheel system to capping station.

Step 6: Magnetic Torque Capping

Caps are applied using magnetic torque system with adjustable force control.

Step 7: Final Output

Finished bottles are discharged to next packaging or labeling process.

Product Parameter Table

Parameter	Specification
Heads of washing, filling, sealing	14-12-5
Production capacity	3000-4000 BPH
Suitable bottle diameter	φ=50-100 mm, H=170-330 mm
Spraying pressure	0.2-0.25 MPa
Motor power	2.2 kW
Stainless steel	SS304
Electric voltage	220/380 V, 50/60 Hz
PLC	Mitsubishi
Frequency converters	Mitsubishi
Touch screen	Mitsubishi
Circuit contactor	Siemens
Overall dimension	2400×1600×2500 mm
Weight	2500 kg

Main Features

• Suspended bottle-neck design ensures stable high-speed conveying
• SS grab rinsing system avoids bottle thread contamination
• No-contact bottle handling ensures hygienic internal cleaning
• Advanced gravity filling technology ensures accuracy and stability
• Magnetic torque screw capping with adjustable pressure control
• PLC + touchscreen control for intelligent automation system
• International brand electrical components ensure reliability
• All water-contact parts made of high-grade stainless steel
• Flexible design supports multiple bottle types and sizes
• Fully integrated rinsing, filling, and capping 3-in-1 system

Why Choose Our Drinking Water Filling Line

Compared to Traditional Filling Machines

• More stable high-speed operation with bottle-neck suspension
• Higher filling accuracy using gravity filling system
• Lower contamination risk due to no-contact rinsing design

Compared to Low-Cost Semi Automatic Lines

• Fully automated PLC control reduces labor cost
• Magnetic torque capping ensures consistent sealing quality
• Industrial-grade stainless steel improves durability

Compared to Standard 3-in-1 Machines

• Advanced SS grab rinsing system improves hygiene level
• Supports multiple bottle types with fast changeover
• Higher production stability under continuous operation

Application Scenarios

• Bottled drinking water production factories
• Mineral water bottling and packaging plants
• Purified water filling and processing lines
• Beverage manufacturing industries
• Small and medium scale water bottling factories
• Turnkey bottled water production projects
• High-speed industrial water filling operations
• OEM bottled water production facilities

Buying Guide

Before purchasing a drinking water filling line, consider:

• Required capacity (e.g., 1000–4000 BPH or higher)
• Bottle type (PET bottle, different shapes and sizes)
• Product type (purified water, mineral water, beverage)
• Level of automation required (semi or fully automatic)
• Factory layout and installation space
• Electrical control system preference (PLC brand requirement)

A turnkey solution is recommended for stable long-term production and lower operational cost.

FAQ

Q1: What is a drinking water filling line used for?

A: It is used for automatic rinsing, filling, and capping of bottled drinking water and beverages.

Q2: Can this filling line handle different bottle types?

A: Yes, it supports various PET bottle shapes and sizes with quick changeover.

Q3: What filling technology is used in this system?

A: It uses advanced gravity filling technology for stable and accurate filling.

Q4: Is this a fully automatic water bottling line?

A: Yes, it is a fully automatic 3-in-1 rinsing, filling, and capping system.

Q5: What is the capping system used in this machine?

A: It uses magnetic torque screw capping with adjustable force control.

Q6: Does the system ensure hygiene during production?

A: Yes, SS grab no-contact rinsing ensures internal bottle cleanliness.

Q7: What industries use this drinking water filling line?

A: It is widely used in bottled water, mineral water, and beverage industries.

Q8: Can the machine be customized for production needs?

A: Yes, it can be customized for capacity, bottle type, and configuration.

Summary

This drinking water filling line is a high-performance turnkey bottling solution integrating rinsing, filling, and capping in one system. With advanced SS grab rinsing, gravity filling technology, and magnetic torque capping, it ensures high efficiency, hygiene, and stability. It is an ideal choice for modern bottled water production plants seeking automation and long-term reliability.
