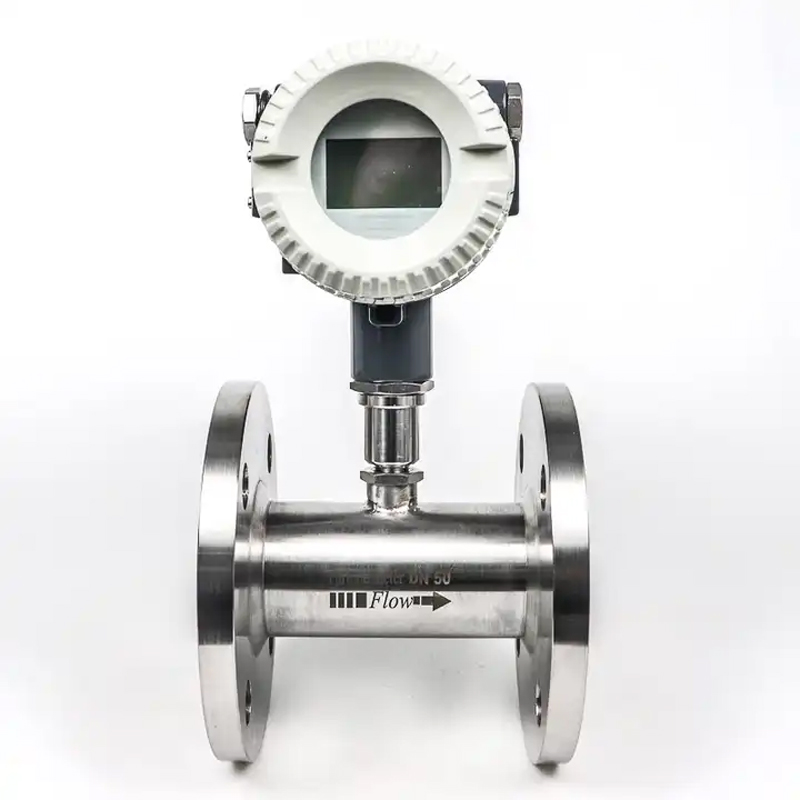

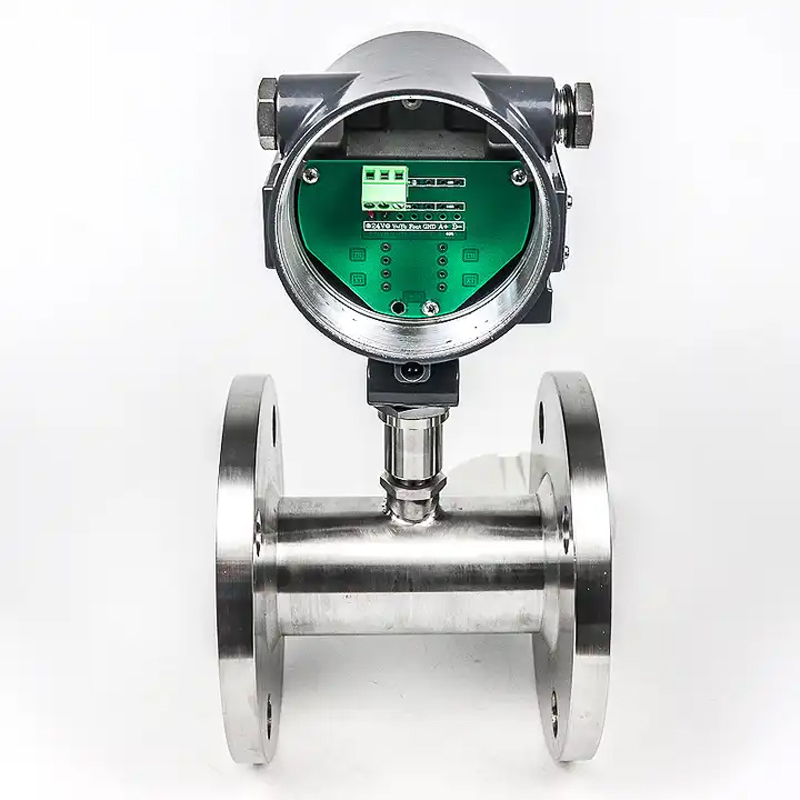

DN80 Pipeline Flanged Pulse Output Turbine Flow Meter For Alcohol
DN80 Pipeline Flanged Pulse Output Turbine Flow Meter For Alcohol - Image 2
DN80 Pipeline Flanged Pulse Output Turbine Flow Meter For Alcohol - Image 3
DN80 Pipeline Flanged Pulse Output Turbine Flow Meter For Alcohol - Image 4

DN80 Pipeline Flanged Pulse Output Turbine Flow Meter For Alcohol

Compare

The HG-LTFM Turbine Flow Meter is a type of Impeller Flowmeter used for the precise measurement of low-viscosity fluids such as tap and demineralised water, light fuel oil, liquefied gases, ethanol gasoline, Pharmaceutical fluids, non-corrosive chemicale solvents etc.

$468.00

Compare
Line Size  4mm-200mm
Working Temperature  -20 – 150 Deg.C
Working Pressure  up to 42 Mpa
Accuracy  Standard: ±1% of reading

 Optional: ±0.5% of reading
Housing Material  Standard: 304 Stainless Steel

 Optionl: 316 Stainless Steel
Rotor Material  Standard: 2Cr13  Stainless Steel

 Optioanl: Alloy CD4Mcu, Teflon etc
Power Supply  DC12-24V

 3.6V Lithium Battery
Transmitter Connection  M20*1.5 Female
Protection Class  IP 65
Explosion Proof  ExdII BT 6 / ExiaII CT4
Signal Output  Pulse / 4-20mA / RS 485
Process Connection  Flange / Thread / Tri-clamp On

 NPT thread for less than DN 40

 DIN flange for bigger than DN 15

 Optioanl: G” thread, ANSI Flang. JIS Flange
Relative Humidity  5% -95%R.H.
Ambient Temperature  -20 – 55 Deg.C
Ambient Pressure  86 -106 Kpa
