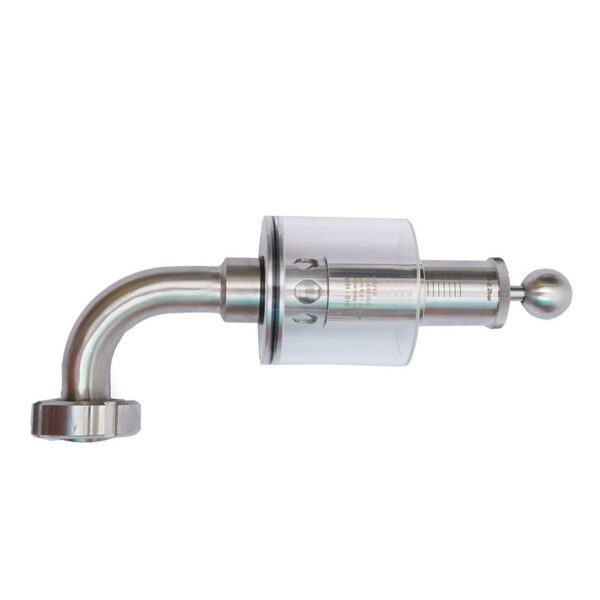

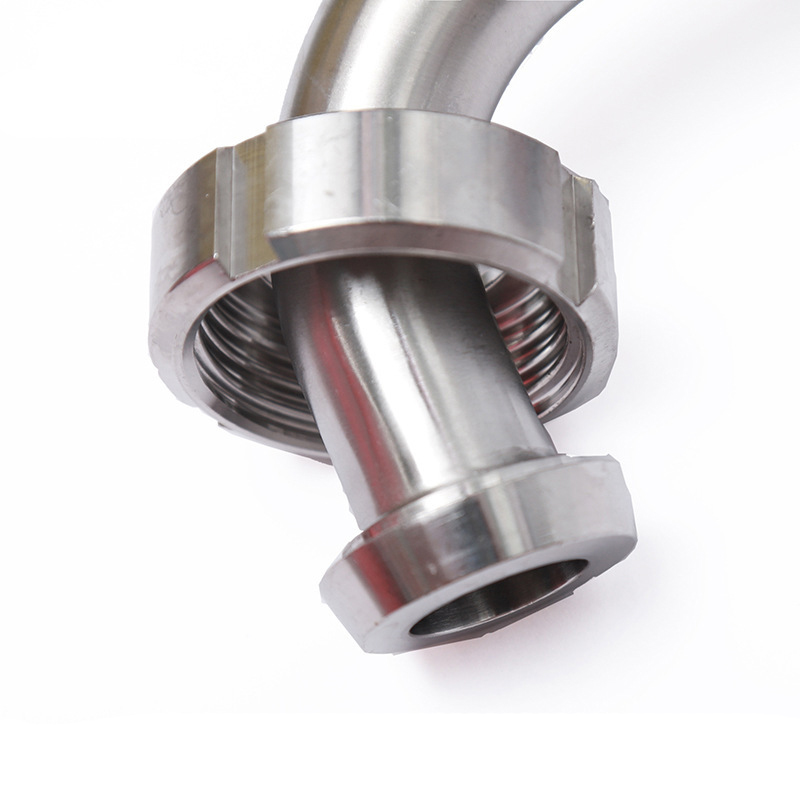

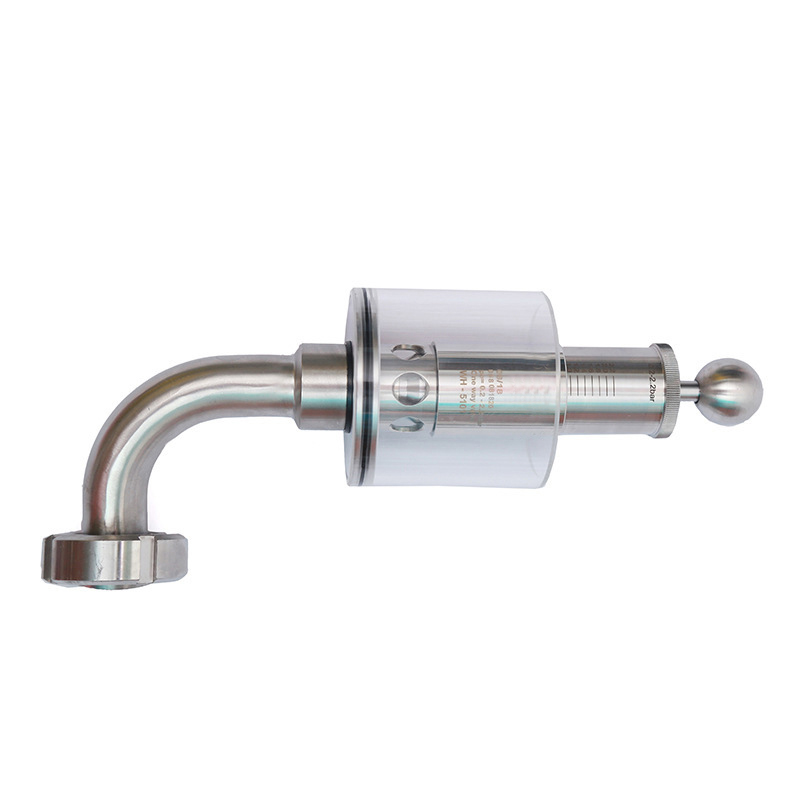

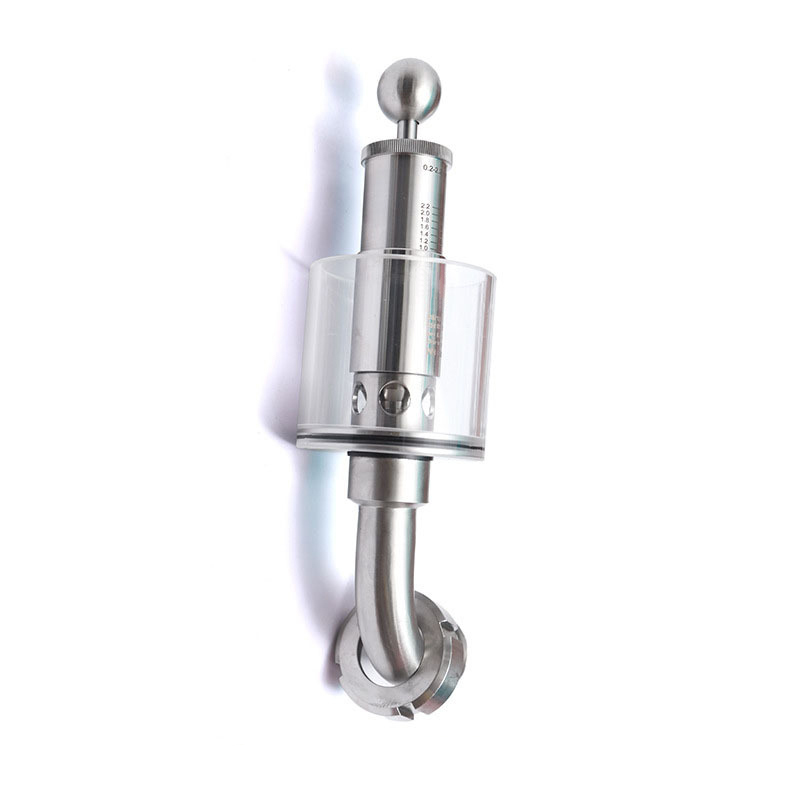

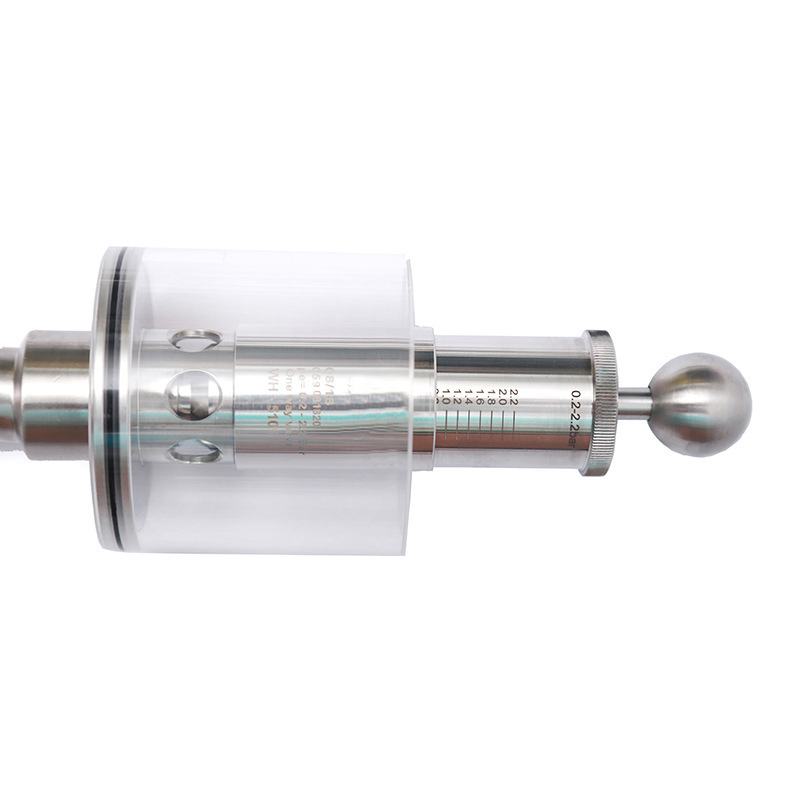

DN25 pressure regulating valve 5101C carbon dioxide regulating valve beer can sanitary safety valve
The valve is used in pressure vessel piping system . Adjust the one-way exhaust valve to protect the container from excessively high pressure. It can be exhausted when the pressure is higher than the set pressure (standard 1BAR). It is easy to use, accurate in scale, and can also meet the needs of various production processes. It is suitable for various industrial fields such as food processing, beer, beverage, and pharmaceuticals.
$400.99
Compare
Technical Parameters:
Working pressure: pressure adjustment range 0.2-2.2bar 1.1-3.2bar
Working temperature: -30 degrees +130 degrees
|
Serial number NO |
name |
material |
|
1 |
seat |
SS304 |
|
2 |
sealing ring |
EPDN |
|
3 |
O-ring |
EPDN |
|
4 |
valve body |
SS304 |
|
5 |
glass cover |
PMMA |
|
6 |
O-ring |
EPDN |
|
7 |
Spool |
SS304 |
|
8 |
Spring pad |
SS304 |
|
9 |
Spacer |
SS304 |
|
10 |
spring |
SS304 |
|
11 |
Adjusting lever |
SS304 |
|
12 |
Tie rod |
SS304 |
|
13 |
pull the ball |
SS304 |
