The decanter centrifuge for oil and gas drilling mud separation is designed for efficient solid-liquid separation in drilling fluid treatment systems. By generating high centrifugal force, the machine separates fine solids from drilling mud, improving fluid recovery and reducing waste disposal costs. It is widely used in oil drilling operations, drilling fluid recycling systems, and industrial sludge treatment projects.
The decanter centrifuge for oil and gas drilling mud separation is a high-efficiency industrial separation machine used for removing solid particles from drilling fluids and slurry mixtures. The equipment adopts horizontal decanter centrifuge technology, which enables continuous solid-liquid separation during operation.
The centrifuge consists of a rotating bowl, screw conveyor, differential drive system, and control unit. When drilling mud enters the rotating bowl, the bowl spins at high speed to generate strong centrifugal force. Due to density differences, heavier solid particles move outward toward the bowl wall while the clarified drilling fluid flows toward the center and exits through the liquid outlet.The screw conveyor rotates at a differential speed relative to the bowl and continuously transports separated solids toward the discharge port. This process ensures stable operation and efficient separation.
This centrifuge is widely used in oil and gas drilling sites, drilling fluid treatment systems, and environmental protection projects. It helps improve drilling fluid recycling efficiency, reduce drilling waste, and maintain optimal drilling performance.
Technical Specifications
Parameter
Value
Set speed
3000 RPM
Bowl diameter
360 mm
Bowl length
1320 mm
Maximum speed
3200 rpm
Capacity
5-20 m³/h
Main motor
30 kW
Material
304/316 stainless steel

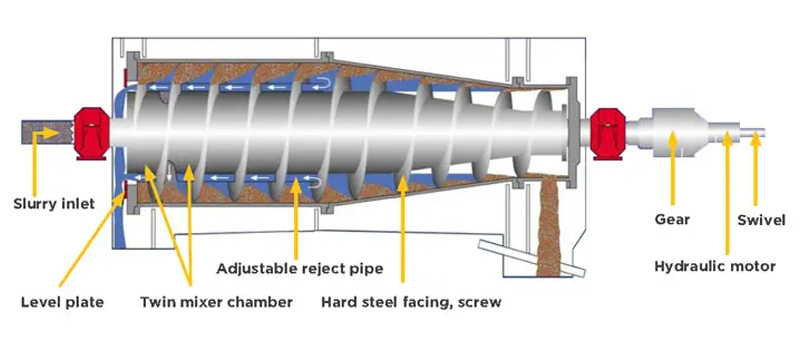

Working Principle
The decanter centrifuge operates based on centrifugal sedimentation principles.
During operation, drilling mud enters the centrifuge through the feed pipe and flows into the rotating bowl. The bowl rotates at high speed, generating centrifugal force thousands of times greater than gravity.Under this strong force, solid particles with higher density move outward toward the bowl wall while the lighter liquid phase moves toward the center of the bowl.
The screw conveyor rotates at a slightly different speed from the bowl and continuously pushes accumulated solids toward the conical end of the bowl where they are discharged from the centrifuge.This continuous process allows the centrifuge to efficiently separate solids from drilling mud in large-scale drilling operations.
Key Features
High-speed centrifugal separation efficiently removes fine solids from drilling mud and slurry mixtures.
Stainless steel construction provides excellent durability and corrosion resistance in harsh industrial environments.
PLC automatic control system allows operators to monitor operating parameters and maintain stable separation performance.
Optimized bowl and screw design improves separation efficiency and increases processing capacity.
Compact structure allows easy integration into drilling fluid recycling systems.
Applications
The decanter centrifuge for drilling mud separation is widely used in industries that require efficient solid-liquid separation.
Typical applications include:
oil and gas drilling mud treatment
drilling fluid recycling systems
mining slurry separation
industrial sludge dewatering
construction mud treatment
wastewater sludge separation
By removing fine solids from drilling fluids, the centrifuge helps improve drilling efficiency, reduce waste disposal costs, and enhance environmental protection.
