Custom Distillery System Manufacturer for Craft Spirits Production

Custom Distillery System Product Introduction

As a professional distillery system manufacturer, we provide custom-designed distilling solutions for craft and commercial spirits production. Our systems are engineered to deliver high efficiency, precise process control, and consistent product quality for distilleries producing whisky, gin, vodka, rum, brandy, and other spirits.

The custom distillery system integrates fermentation, distillation, cooling, and storage processes into a complete production line. Designed with flexibility and scalability in mind, the system can be tailored to match your production capacity, raw materials, and product goals. We also provide complete distillery system integration including fermentation, distillation, and storage solutions to support your full production line.

System Overview

• The system includes fermentation units, distillation equipment, condenser systems, and storage tanks

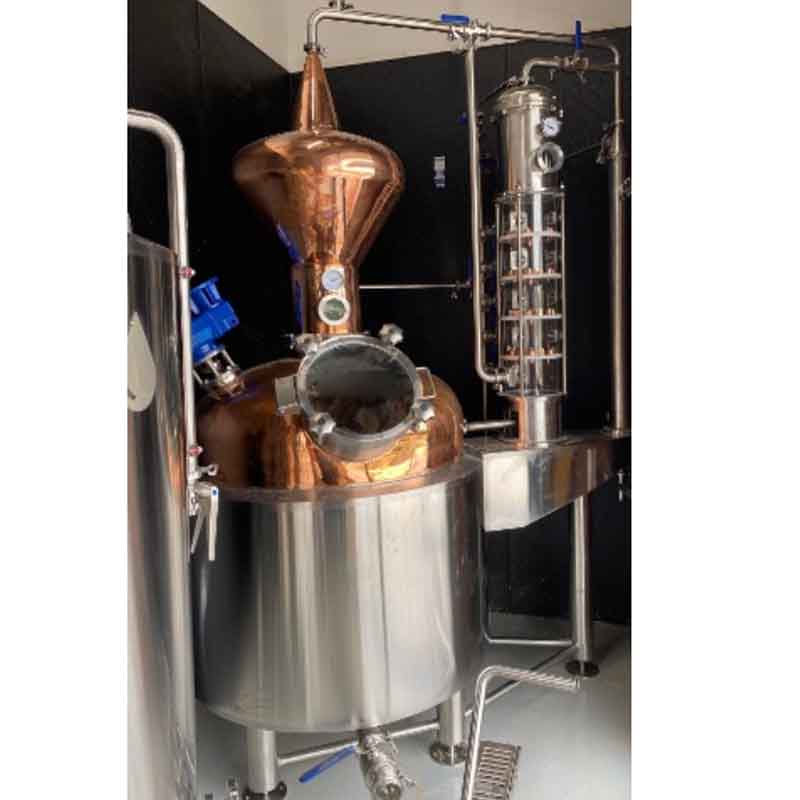

• Supports both pot still and hybrid distillation configurations for flexible production

• Designed for craft distilleries as well as commercial-scale operations

• Modular system allows customization and future expansion

• Integrated control system ensures stable and efficient operation

• Suitable for producing a wide range of spirits with consistent quality

Production Process Description

• Raw materials such as grains, fruits, or molasses are processed and fermented into alcohol wash

• Fermented liquid is transferred into the distillation system

• Controlled heating vaporizes alcohol and volatile compounds

• Vapor passes through column or pot still for separation and purification

• Condenser converts vapor into liquid distillate

• Distillate is separated into heads, hearts, and tails

• Final product is stored or transferred for aging and packaging

Working Principle

• The system operates based on controlled heating and condensation to separate alcohol from water and other compounds

• Pot still components preserve flavor and aroma, while column sections improve purity

• Reflux control allows adjustment of alcohol concentration and product profile

• Cooling systems stabilize temperature and ensure efficient condensation

• Integrated process control ensures repeatable production and consistent quality

Why This System Is Designed This Way

• Designed to balance flexibility, efficiency, and product quality

• Modular structure allows customization for different spirit types

• Integrated system reduces installation complexity and improves workflow

• High-quality materials ensure durability and hygiene

• Scalable design supports future production expansion

Technical Specifications

System type	Custom distillery system (turnkey solution)
Production capacity	100L–5000L per batch (customizable)
Daily output	100–10,000L (depending on configuration)
Annual production capacity	50–3000 tons
Distillation type	Pot still / Hybrid still / Column still
Still capacity	100L–2000 gallon (customizable)
Column configuration	Plate column / Packed column
Plate quantity	4–20 plates optional
Reflux control	Manual / Automatic adjustable
Material (main unit)	Copper + SS304 / Optional SS316
Copper thickness	2–4 mm
Stainless steel thickness	3–6 mm
Heating method	Steam / Electric / Gas / Direct fire
Steam consumption	50–400 kg/h
Electric heating power	20–200 kW
Operating temperature	78–100°C
Distillation cycle time	4–12 hours per batch
Alcohol output strength	40–96% adjustable
Condenser type	Shell & tube / Coil
Cooling system	Water cooling / Cooling tower
Cooling water consumption	2–20 m³/h
Fermentation system	Optional (100L–5000L fermenters)
Fermenter type	Conical / Open-top
Fermentation temperature	15–35°C
Storage system	Optional stainless steel tanks
CIP system	1-tank / 2-tank / 3-tank optional
CIP tank volume	100–1000L
Cleaning pressure	2–3 bar
Control system	Manual / Semi-auto / PLC (Siemens optional)
Automation level	Customizable
Power supply	220V / 380V / 415V / 50Hz
Explosion-proof option	Available for alcohol production
Installation area	30–200 m²

Note：All configurations can be customized based on production requirements and project scale

Industry Applications

• Craft distilleries producing premium spirits

• Commercial distilleries with scalable production needs

• Beverage companies entering spirits production

• Industrial alcohol production facilities

• Distillery expansion and upgrade projects

Solution Composition

• Fermentation system for raw material processing

• Distillation system including pot still or hybrid still

• Condenser and cooling system

• Storage and aging tanks

• Pipeline and valve system

• Control system for process automation

• Optional filtration and purification system

• Complete turnkey distillery solution

Main Features

• Customizable design for different production requirements

• Integrated system for efficient operation

• Flexible configuration for multiple spirit types

• High efficiency and stable performance

• Durable construction with long service life

• Suitable for both small and large-scale production

Key Engineering Advantages

• Hybrid design options improve both flavor retention and alcohol purity

• Advanced control systems ensure consistent production

• Efficient heat transfer reduces energy consumption

• High-quality materials ensure durability and hygiene

• Modular structure allows easy expansion and maintenance

Application Scenarios

• Craft distilleries producing small-batch premium spirits

• Commercial distilleries scaling production

• Distillery startup projects

• Multi-product distillery operations

• Export-oriented spirits production facilities

Why Choose This Machine

• Direct manufacturer with strong customization capability

• Complete turnkey solution provider

• High-quality materials and strict quality control

• Reliable performance and long service life

• Professional engineering support

• Flexible configuration and scalability

• High return on investment

FAQ

What is a custom distillery system?
It is a complete system including fermentation, distillation, and storage designed for producing spirits.

Can the system be customized?
Yes, all configurations can be adjusted based on your requirements.

What types of spirits can be produced?
Whisky, gin, vodka, rum, brandy, and other spirits.

Is the system suitable for commercial production?
Yes, it is designed for both craft and commercial distilleries.

Do you provide complete solutions?
Yes, we provide full system integration and turnkey solutions.

Contact us to get your quotation now.

Get in touch with our engineering team.
