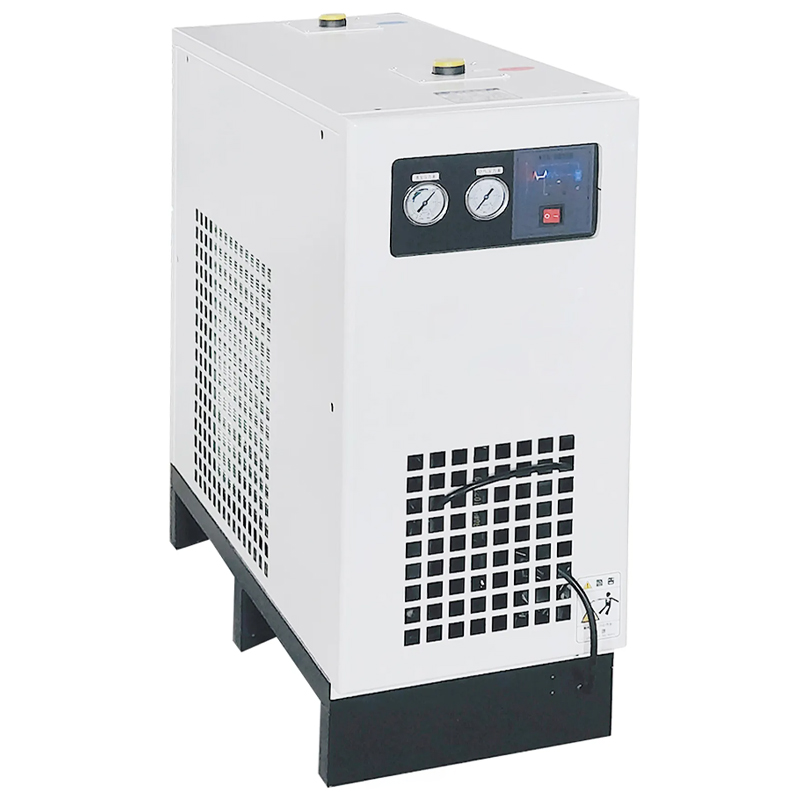

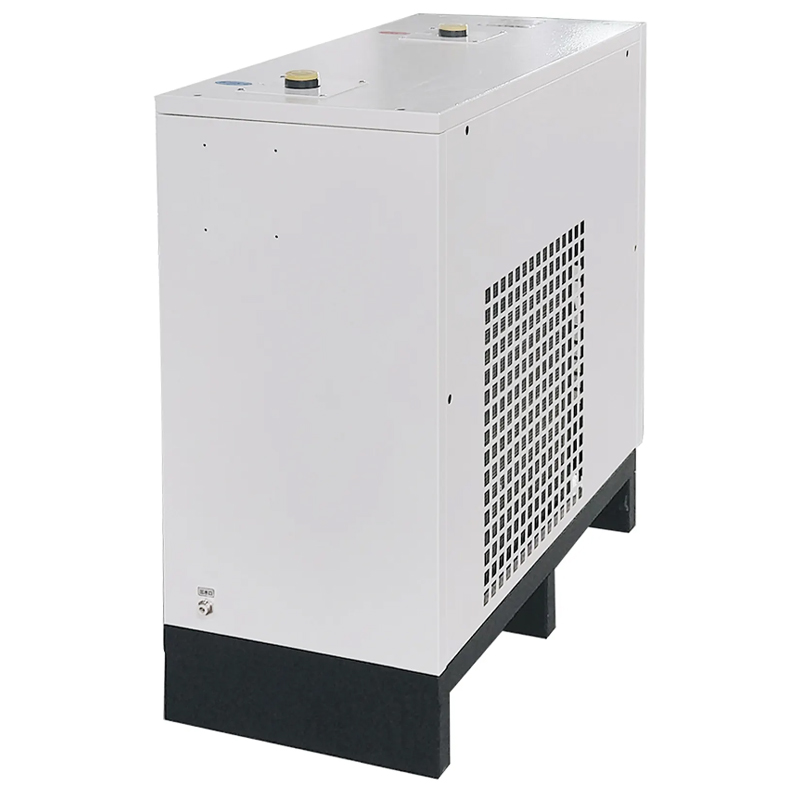

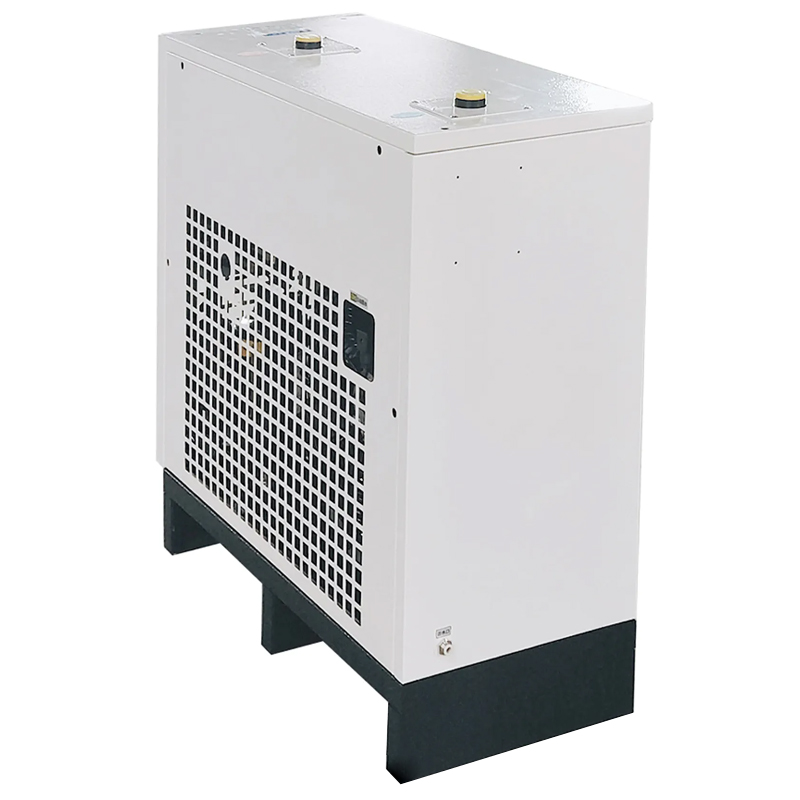

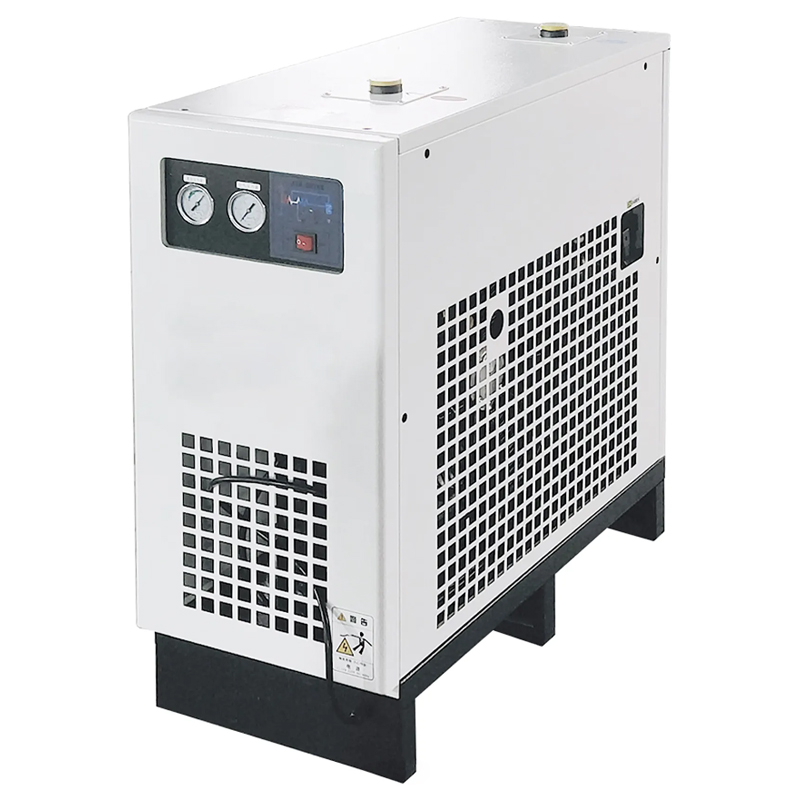

Compressed Air Dryer Low Noise Air Compressor with Dryer Cool Freeze Compressed Refrigerant Air Dryers

Add to wishlist
Compare

The amount of water vapor in the compressed air is determined by the water content of the compressed air. Under the condition that the compressed air pressure is kept basically unchanged, when the temperature drops, the water-holding capacity of the air also decreases, and the water that was originally a gas will become a liquid. Based on this dehumidification principle, the refrigerated dryer uses a refrigeration device to cool the compressed air to a certain dew point temperature, so that the gaseous water in it is condensed into a liquid state. Then, the gas and liquid are separated through the separator and the water is discharged through the white dynamic drain, so that the compressed air is dried.

The cooling and cooling device of the air-cooled refrigerated dryer is an air-cooled radiator.The heat in the high-pressure part of the refrigeration system is blown and cooled by the fan, and taken away with the air volume blown by the fan.

$375.00

Compare

Technical Parameters of the Compressed Air Dryer

  • Inlet temperature: ≤60℃
  • Cooling method: Air-cooling
  • Ambient temp: 2～45℃
  • Pressure dew point: 2～10℃
  • Working pressure: 0.6～1.0MPa
  • Refrigerant: R22
  • Pressure drop: ≤0.02MPa

Models

AIR handling

Capacity

 Refrigeration

Compressor power

 Power Supply INLET/OUTLET Dimensions

L×W×H(mm)

 Matched air

compressor power

 Weight
1.5 Nm³/min 0.59 kw 220 V G1″ 730×430×770 7.5 kw 61 kg
2 Nm³/min 0.59 kw 220 V G1″ 730×430×770 11 kw 61 kg
2.6 Nm³/min 0.75 kw 220 V G1″ 730×430×800 15 kw 68 kg
3.8 Nm³/min 0.88 kw 220 V G1-1/2″ 780×540×1010 22 kw 102 kg
6.9 Nm³/min 1.24 kw 220 V G1-1/2″ 1000×540×1010 37 kw 138 kg
11.0 Nm³/min 1.73 kw 220 V G2″ 1240×650×1140 55 kw 205 kg
14.0 Nm³/min 2.6 kw 380 V G2-1/2″ 1240×650×1140 75 kw 215 kg
18.0 Nm³/min 2.8 kw 380 V G2-1/2″ 1400×700×1260 90 kw 283 kg
22.0 Nm³/min 3.0 kw 380 V DN80 1450×700×1340 110 kw 324 kg
28.0 Nm³/min 3.75 kw 380 V DN80 1450×700×1340 150 kw 358 kg
32.0 Nm³/min 4.66 kw 380 V DN80 1550×750×1400 160 kw 408 kg
38.0 Nm³/min 6.49 kw 380 V DN100 1900×950×1620 200 kw 585 kg
46.0 Nm³/min 8.85 kw 380 V DN100 1900×950×1620 250 kw 630 kg
55.0 Nm³/min 9.98 kw 380 V DN125 2100×1000×1790 315 kw 815 kg
67.0 Nm³/min 10.5 kw 380 V DN150 2100×1400×2000 355 kw 1106 kg
75.0 Nm³/min 11.25 kw 380 V DN150 2100×1450×2150 400 kw 1223 kg
85.0 Nm³/min 13.5 kw 380 V DN150 2100×1450×2250 450 kw 1685 kg
