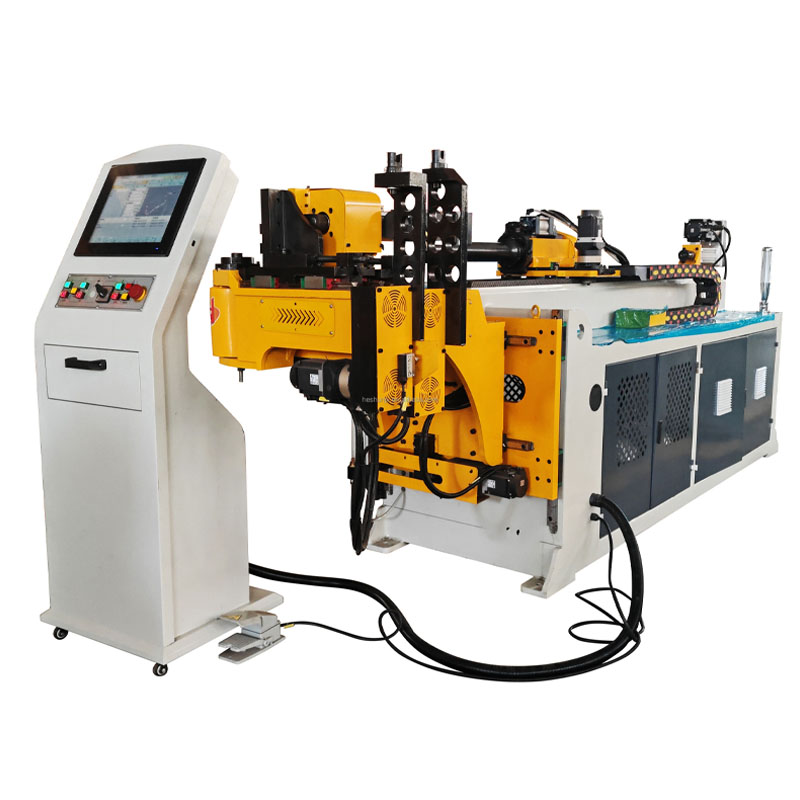

CNC Bending Plant Machine for Steel Pipe, Bar, Tubing Processing
This CNC bending machine features a touch screen display and computer-controlled operation, capable of storing 200 memory groups. It provides real-time error messages on the screen to assist operators in troubleshooting quickly. The feeding and rotation angles are servo-controlled, while the elbow is managed by an oil cylinder. Additionally, the machine includes slow bending and slow core-pulling functions for improved precision and control during complex bending operations.
Compare
Product Description of CNC Bending Plant Machine
This CNC bending machine features a touch screen display and computer-controlled operation, capable of storing 200 memory groups. It provides real-time error messages on the screen to assist operators in troubleshooting quickly. The feeding and rotation angles are servo-controlled, while the elbow is managed by an oil cylinder. Additionally, the machine includes slow bending and slow core-pulling functions for improved precision and control during complex bending operations.
Product Parameter Table
| CNC / Full Automatic 2/3A | Hydraulic/Electric Bending 1S:1 Stack |
| Max. Bending Capacity | 130 ×4mm |
| Bending Degree | 0-190° |
| Bending Radius | 30-300mm (for machine) |
| Min Bending Radius | R≥1.2D (for pipe) |
| Mandrel Length | 3800mm(can be customized) |
| Max. Bending Speed | 80°/s |
| Max. Bending Speed | 180°/s |
| Max. Feeding Speed | 800mm/s |
| Bending Accuracy | ±0.1°/±0.05° |
| Rotating Accuracy | ±0.05° |
| Feeding Accuracy | ±0.05mm |
Main features
-
Advanced Touch Screen Display
User-friendly interface with real-time error messages and 200 memory group storage. -
CNC Computer Operation
Precision control with automated functions for consistent and efficient bending operations. -
Servo-Controlled Feeding & Rotation
Ensures accurate feeding and rotation angles for precise tube and pipe bending. -
Oil Cylinder Controlled Elbow
Provides stable and reliable elbow control for complex bending tasks. -
Slow Bending & Core Pulling Functions
Enables controlled bending and core pulling, improving accuracy and reducing material stress.
Application scenarios
-
Metal Pipe and Tubing Bending
Ideal for industries requiring precise bending of steel, stainless steel, and aluminum pipes and tubes. -
Automotive & Aerospace Manufacturing
Perfect for bending metal parts in automotive, aerospace, and machinery production. -
Construction & HVAC Systems
Widely used in the fabrication of pipes and ducts for construction, plumbing, and HVAC systems. -
Custom Metal Fabrication
Suitable for creating custom bends in pipes and tubes for specialized industrial applications.
Contact us to get your quotation now.
