Laboratory Circulators & Water Baths
Circulator -10ºC~100ºC 30L Lab Refrigerated and Heating Circulator PID Temperature Control System Thermostatic Water Bath
- Temperature range: -10～100ºC
- Tank volume: 30L
- Slot opening: 330*280mm
- Slot depth: 230mm
- Dimensions: 450*645*990mm
NOTE: Prices may vary by product model and material.
$3,950.00
CompareDescription of Lab Refrigerated and Heating Circulator

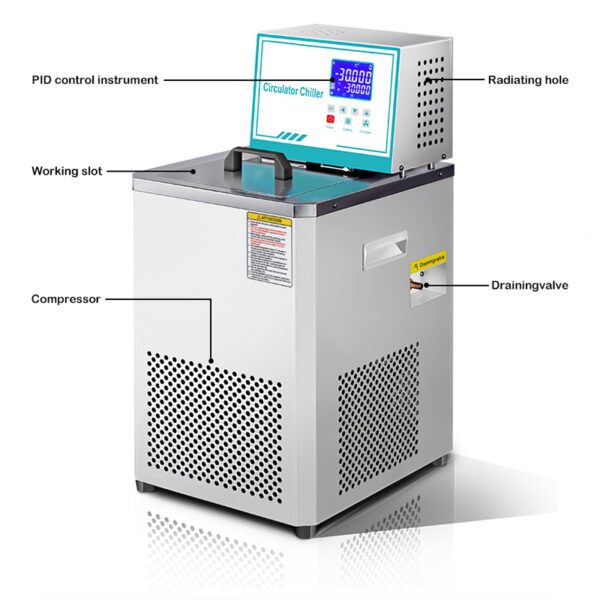

BD series Lab Refrigerated and Heating Circulator adopts an advanced fluorine-free refrigeration system.
This series of instruments is mainly developed for low-temperature experiments in scientific research, biology, physics, medicine, chemical and other departments with high requirements for constant temperature accuracy.
It has the characteristics of making the temperature in the tank uniform and intelligent temperature control more accurate (temperature fluctuation range: ± 0.005- ± 0.01 ℃). It can also be used for calibration purposes in the manufacturing of ordinary thermometers and other temperature measuring instruments.
| Model | Temp range (℃) | Resolution (℃) | Volatility (±℃) | Tank volume (L) | Slot opening (mm) | Slot depth (mm) | Circulation way | Dimensions (mm) |
| BD-0506 | -5~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*675 |
| BD-0510 | 10 | 180*150 | 200 | 320*370*765 | ||||
| BD-0515 | 15 | 235*180 | 200 | 400*450*940 | ||||
| BD-0520 | 20 | 235*180 | 300 | 400*450*1050 | ||||
| BD-0530 | 30 | 330*280 | 230 | 450*645*990 | ||||
| BD-1006 | -10~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*675 |
| BD-1010 | 10 | 180*150 | 200 | 320*370*765 | ||||
| BD-1015 | 15 | 235*180 | 200 | 400*450*940 | ||||
| BD-1020 | 20 | 235*180 | 300 | 400*450*1050 | ||||
| BD-1030 | 30 | 330*280 | 230 | 450*645*990 | ||||
| BD-2006 | -20~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*675 |
| BD-2010 | 10 | 180*150 | 200 | 320*370*765 | ||||
| BD-2015 | 15 | 235*180 | 200 | 400*450*940 | ||||
| BD-2020 | 20 | 235*180 | 300 | 400*450*1050 | ||||
| BD-2030 | 30 | 330*280 | 230 | 450*645*990 | ||||
| BD-3006 | -30~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*765 |
| BD-3010 | 10 | 180*150 | 200 | 320*370*765 | ||||
| BD-3015 | 15 | 235*180 | 200 | 400*450*940 | ||||
| BD-3020 | 20 | 235*180 | 300 | 450*645*1090 | ||||
| BD-3030 | 30 | 330*280 | 230 | 450*645*990 | ||||
| BD-4006 | -40~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 400*450*940 |
| BD-4010 | 10 | 180*150 | 200 | 400*450*940 | ||||
| BD-4015 | 15 | 235*180 | 200 | 450*540*990 | ||||
| BD-4020 | 20 | 235*180 | 300 | 450*645*1090 | ||||
| BD-4030 | 30 | 330*280 | 230 | 450*645*990 | ||||
| BD-5006 | -50~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
| BD-5010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
| BD-5015 | 15 | 235*180 | 200 | 550*655*1070 | ||||
| BD-5020 | 20 | 235*180 | 300 | 550*655*1170 | ||||
| BD-5030 | 30 | 330*280 | 230 | 550*655*1070 | ||||
| BD-6006 | -60~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
| BD-6010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
| BD-6015 | 15 | 235*180 | 200 | 550*655*1070 | ||||
| BD-6020 | 20 | 235*180 | 300 | 550*655*1170 | ||||
| BD-6030 | 30 | 330*280 | 230 | 550*655*1070 | ||||
| BD-7006 | -70~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
| BD-7010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
| BD-7015 | 15 | 235*180 | 200 | 550*655*1070 | ||||
| BD-7020 | 20 | 235*180 | 300 | 635*855*1350 | ||||
| BD-7030 | 30 | 330*280 | 230 | 635*855*1200 | ||||
| BD-8006 | -80~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
| BD-8010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
| BD-8015 | 15 | 235*180 | 200 | 635*855*1200 | ||||
| BD-8020 | 20 | 235*180 | 300 | 635*855*1350 | ||||
| BD-8030 | 30 | 330*280 | 230 | 635*855*1200 |
