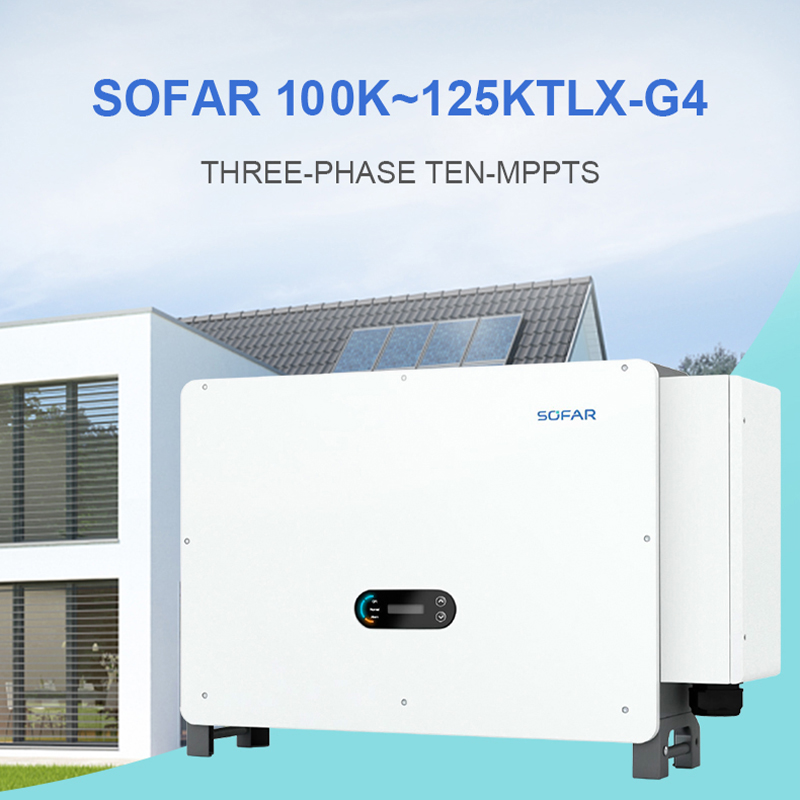

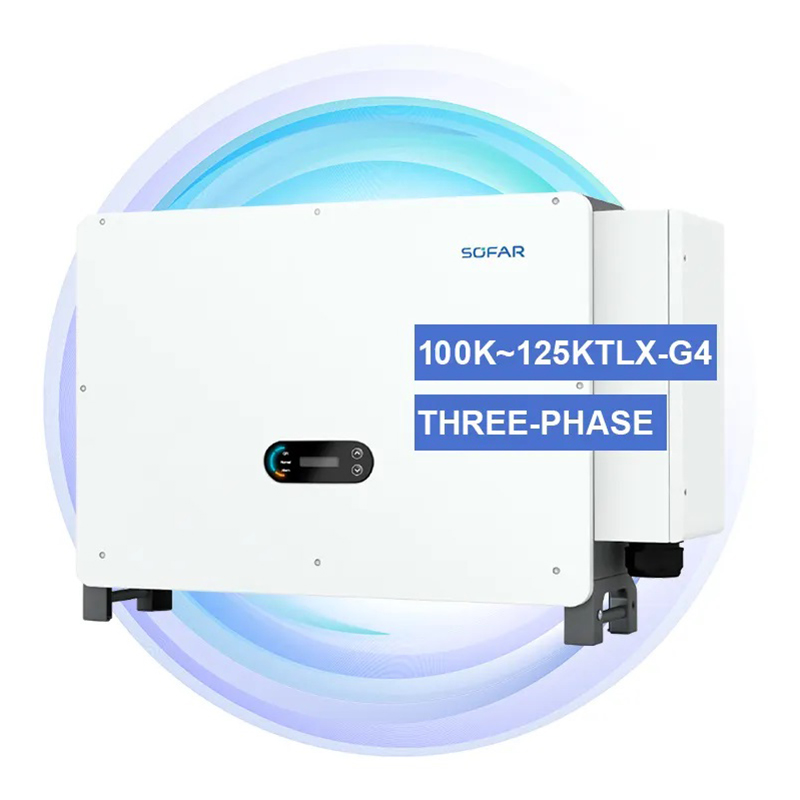

C&I Storage Inverters SOFAR 100K~125KTLX-G4 Three-Phase Ten Mppts Ess Ready PV Inverter Solar Battery Sofar Lithium Inverter

Add to wishlist
Compare
  • Three-phase
  • 10 MPPTS
  • ESS READY
  • Max. efficiency up to 98.6%
  • IP66 & C5 design for outdoor

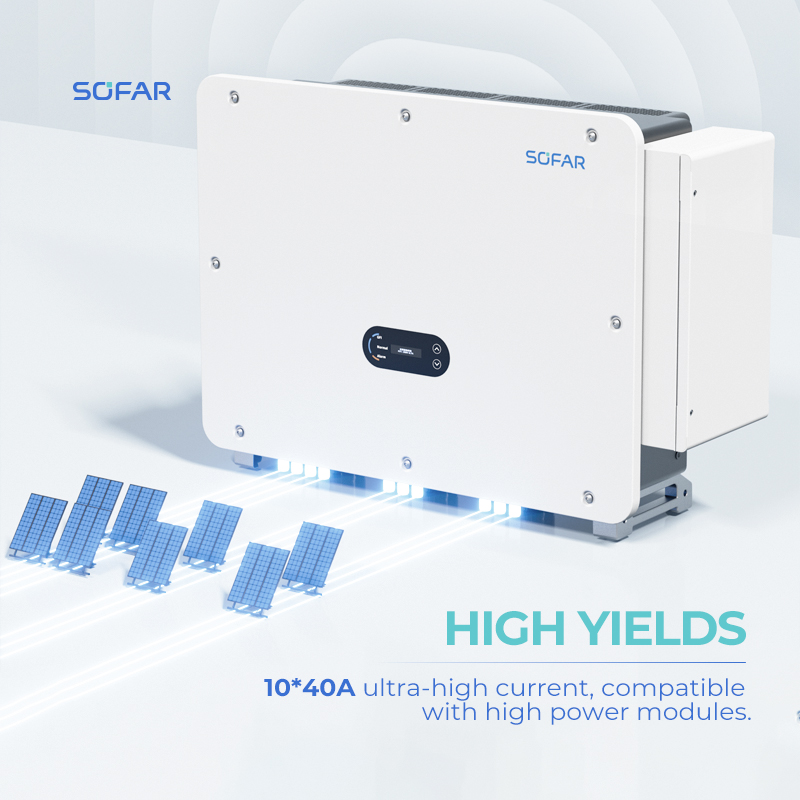

  • Maximum 10 MPPTs, 40A per MPPT
  • Type I + II SPD for DC
  • I-V curve scanning function

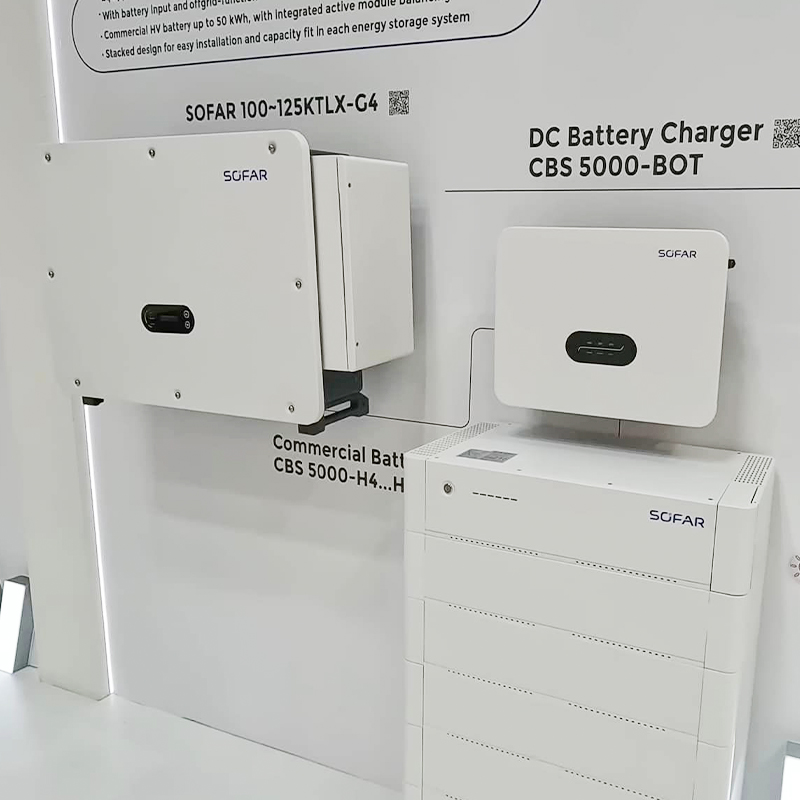

  • Battery connector for ESS, DC coupled

$4,522.00

Compare

General Data of the C&I Storage Inverters  SOFAR 100K~125KTLX-G4

  1. Dimension(W*H×D): 970×695×325mm
  2. Weight: 75kg
  3. Ambient temperature range: -30°C～+60°C
  4. Topology: Transformerless
  5. Degree of protection: IP66
  6. Allowable relative humidity range: 0~100%
  7. Max.operating altitude: 4000m(>3000m derating)
  8. Cooling: Smart air cooling
  9. Display: LCD & Bluetooth +APP
  10. Communication: RS485 / WiFi
  11. Standard: EN/IEC 62109-1/2, EN/IEC 61000-6-2/-4, IEC 61000-3-4/-5, EN 50530, EN 50549, IEC62116, IEC 61727, IEC 61683,IEC 60068-2-1/2/14/30, VDE V 0126-1-1, UTE C15-712-1, VDE-AR-N 4105/4110, CEI 0-21/16, NTS 631, UNE 217001, UNE 217002

Model SOFAR 100KTLX-G4 SOFAR 110KTLX-G4 SOFAR 125KTLX-G4
Input (DC)
Max. input voltage 1100V 1100V 1100V
Rated input voltage 625V 625V 625V
Start-up voltage 200V 200V 200V
MPPT operating voltage range 180V～1000V 180V～1000V 180V～1000V
Number of MPP trackers 10 10 10
Number for DC inputs 20 20 20
Max. input MPPT current 10*40A 10*40A 10*40A
Max. input short circuit current 10*50A 10*50A 10*50A
AC Output(On Grid)
Rated output power 100kW 100kW 110kW
Max. apparent power 100kVA@45°C / 90kVA@50°C 110kVA@45°C / 100kVA@50°C 125kVA@45°C / 110kVA@50°C
Max. output current 152A@380V / 145A@400V / 139.2A@415V 167.2A@380V / 159.5A@400V / 153.1A@415V 190A@380V / 181.2A@400V / 174A@415V
Rated output voltage 3/N/PE，380V / 400V / 415V 3/N/PE，380V / 400V / 415V 3/N/PE，380V / 400V / 415V
Output voltage range 310~480V 310~480V 310~480V
Rated output frequency 50/60Hz 50/60Hz 50/60Hz
Output frequency range 45~55Hz/55~65Hz 45~55Hz/55~65Hz 45~55Hz/55~65Hz
Active power adjustable range 0~100% 0~100% 0~100%
THDi <1%(@100%P) <1%(@100%P) <1%(@100%P)
Power factor 1 (+/-0.8 adjustable) 1 (+/-0.8 adjustable) 1 (+/-0.8 adjustable)
ESS Parameter
DC voltage range 200~1100V 200~1100V 200~1100V
Max. charge / discharge current 100A / 100A 100A / 100A 100A / 100A
Max. power(charge / discharge) 62.5kW / 62.5kW 62.5kW / 62.5kW 62.5kW / 62.5kW
BMS communication CAN CAN CAN
AC Output(Off Grid)
Rated output power 100kW 100kW 110kW
Max. apparent power 100kVA@45°C / 90kVA@50°C 110kVA@45°C / 100kVA@50°C 125kVA@45°C / 110kVA@50°C
Max. output current 152A@380V / 145A@400V / 139.2A@415V 167.2A@380V / 159.5A@400V / 153.1A@415V 190A@380V / 181.2A@400V / 174A@415V
Rated output voltage 3/N/PE，380V / 400V / 415V 3/N/PE，380V / 400V / 415V 3/N/PE，380V / 400V / 415V
Rated output frequency 50/60Hz 50/60Hz 50/60Hz
THDV <3%(Linear Load) <3%(Linear Load) <3%(Linear Load)
Efficiency (PV)
Max. efficiency 98.60% 98.60% 98.60%
European efficiency 98.30% 98.30% 98.30%
