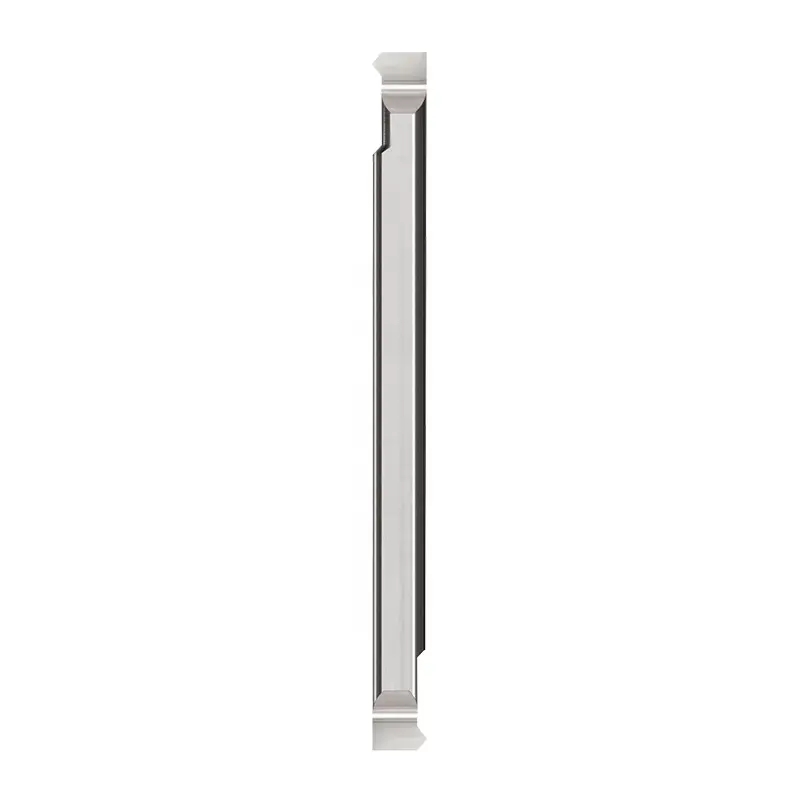

This product line contains solid carbide bars designed to machine profiling and boring applications, they can also be used in general turning jobs.
Material
|
Tungsten carbide
|
Type
|
Tailor-made
|
Product name
|
Tiny boring tools, small boring tool, miniture boring tool
|
Material classification level 1
|
PMNS
|
Tool cutting edge angle
|
98 deg
|
Tool lead angle
|
-8 deg
|
Corner radius
|
0.15mm
|
Depth of cut maximum
|
0.3mm
|
Maximum ramping angle
|
17 deg
|
Minimum bore diameter
|
4.2 mm
|
Maximum overhang
|
18 mm
|
Usable length
|
15 mm
|
Hand
|
R
|
Substrate
|
HC
|
Coating
|
no coating
|
Coolant entry style:
|
Without coolant
|
Coolant exit style:
|
No coolant exit
|
Connection diameter(
|
4 mm
|
Overall length
|
40-70 mm
|
Weight of item
|
0.015 kg
|
Diameter
|
0.15-12
|
Cutting Diameter
|
φ1-φ8
|
Product features
|
Almost all cutting edge geometry can be specified
|
Cutting diameter
|
0.5mm to 8mm
|
Shank diameter
|
3mm to 8 mm, or inch size
|
Shank type
|
Weldon, or round shank
|
Machine type
|
Lathe
|
Machining type
|
Internal step, profile, thread, groove
|
Face groove turning
|
Available
|
Cutting length
|
0.2-80mm
|
