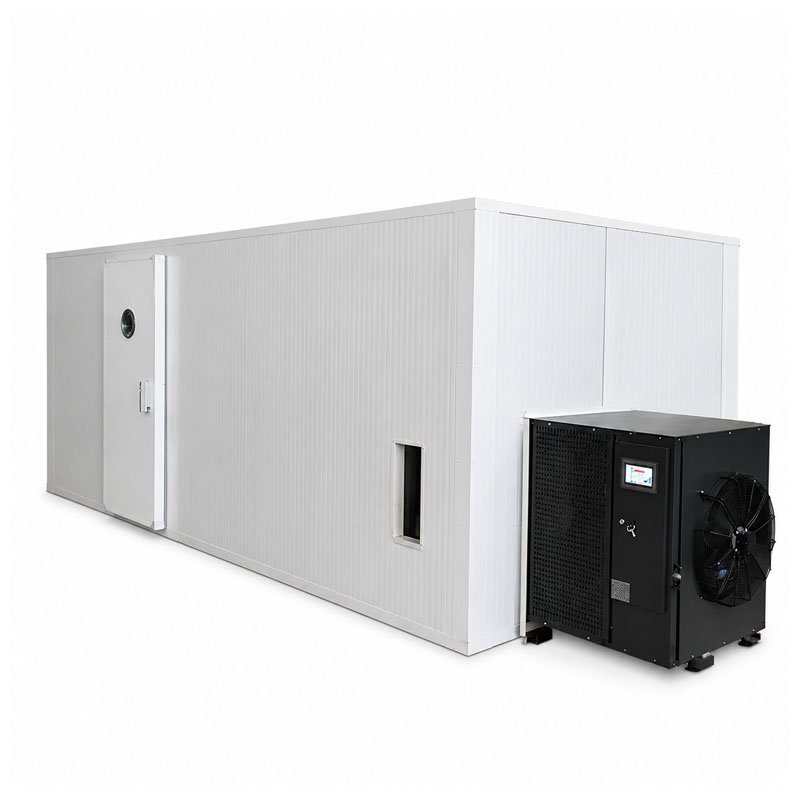

Product introduction of Automatic Vegetable Dryer

The vegetable drying machine is a professional dehydration solution designed for modern food processing industries. It adopts advanced heat pump drying technology based on the reverse Carnot cycle principle, absorbing low-temperature heat energy from the surrounding air and converting it into high-temperature drying energy.

Unlike traditional high-temperature drying methods, this vegetable dryer operates at a lower drying temperature to gently remove moisture while maintaining the original color, texture, aroma, and nutritional value of vegetables and other food materials.

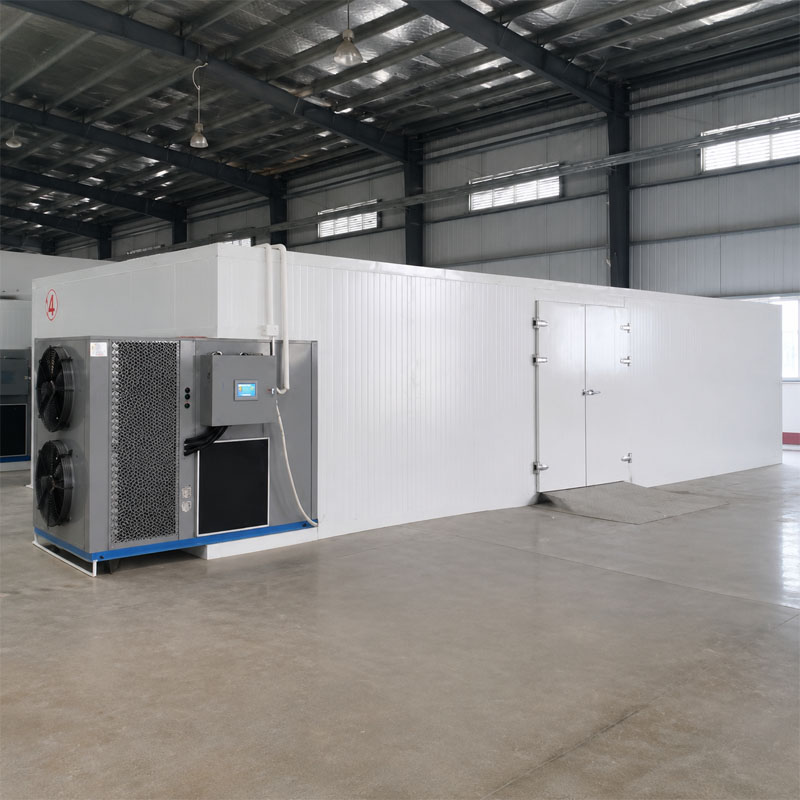

The equipment consists of a heat pump drying unit, insulated drying chamber, circulation fan system, and stainless steel drying trays with trolleys. Hot air is evenly circulated inside the chamber, allowing materials to be dried uniformly with high efficiency and stable quality.

This industrial vegetable drying machine is widely used in central kitchen processing, prepared food production, dehydrated vegetable manufacturing, agricultural product processing, and food ingredient production. It provides an environmentally friendly, energy-saving, and reliable drying solution for businesses requiring consistent product quality and automatic operation.

Equipment Structure

The complete vegetable drying machine mainly consists of:

Heat Pump Drying Unit

Provides efficient heat generation and energy-saving drying performance by extracting heat energy from the air.

Drying Chamber

The insulated drying room is designed with high-quality insulation materials to reduce heat loss and improve drying efficiency.

Circulation Fan System

Provides strong airflow circulation to ensure uniform temperature distribution throughout the drying chamber.

Stainless Steel Trolley and Tray

Food-grade stainless steel trays allow convenient loading, unloading, and cleaning.

Intelligent Control System

Automatically controls drying temperature, operation time, and drying parameters according to different products.

Working principle

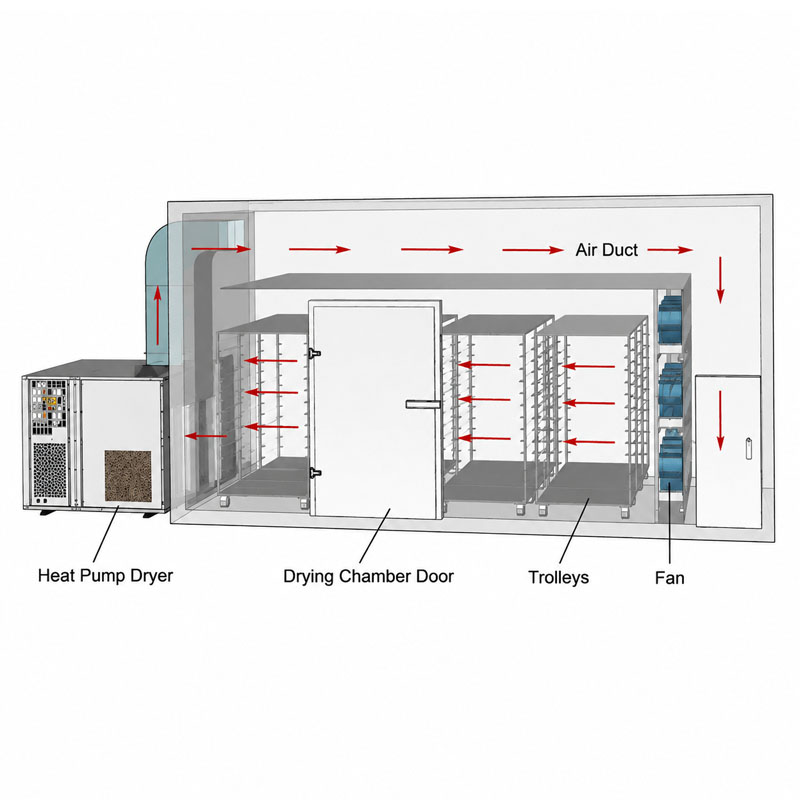

The heat pump vegetable dryer works according to the reverse Carnot cycle principle. The heat pump system absorbs heat energy from the surrounding air and converts it into usable drying heat.

During operation, heated air is circulated continuously inside the drying chamber by fans. The hot air passes evenly through the materials placed on stainless steel trays, removing moisture while maintaining product quality.

The humid air generated during drying is discharged through the dehumidification system, while the temperature and drying conditions are automatically controlled by the intelligent control system.

By using low-temperature heat pump drying technology, the machine reduces energy consumption and prevents damage caused by excessive heat, making it suitable for drying vegetables, fruits, herbs, spices, seafood, meat products, and other materials.

Drying Process

1. Material Selection

Select fresh and suitable vegetables or food materials according to quality and maturity requirements.

2. Cleaning Process

Clean the materials to remove surface dirt and impurities. For large-scale production, professional vegetable washing equipment can be integrated.

3. Cutting and Preparation

Cut vegetables into suitable sizes and shapes according to final product requirements.

4. Tray Loading

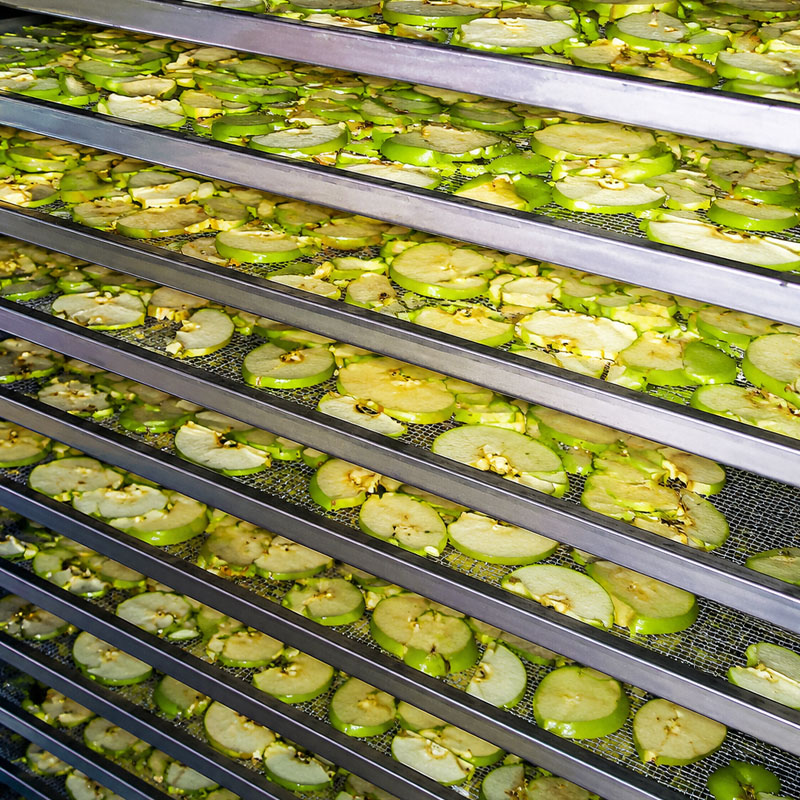

Spread the prepared materials evenly onto stainless steel drying trays and place the trays onto the trolley.

5. Drying Operation

Set suitable drying temperature and time according to material characteristics. The heat pump dryer removes moisture through continuous hot air circulation.

6. Packaging and Storage

After drying, products should be sealed or vacuum packed to prevent moisture absorption and maintain quality.

Product Parameter Table

Main Features

1. Energy-Efficient Heat Pump Technology

The vegetable drying machine uses heat pump technology to recycle heat energy from the air, significantly reducing energy consumption compared with traditional drying methods.

2. Low-Temperature Drying for Better Quality

The drying process operates at a controlled low temperature, helping preserve the natural color, flavor, shape, and nutritional content of vegetables and food products.

3. Uniform Drying Performance

The powerful circulation fan system creates even airflow inside the drying chamber, ensuring consistent drying results for different batches of materials.

4. Automatic Temperature Control

The intelligent control system allows precise temperature adjustment and automatic operation, reducing manual operation requirements.

5. Wide Material Compatibility

The equipment can dry various products including vegetables, fruits, herbs, spices, grains, seafood, meat products, and agricultural materials.

6. Stainless Steel Food Grade Structure

The drying chamber adopts high-quality stainless steel trays and trolleys, providing corrosion resistance, easy cleaning, and hygienic operation.

7. Environmentally Friendly Operation

The heat pump drying system produces no direct combustion emissions and provides a cleaner drying solution for food processing industries.

8. Easy Operation and Maintenance

The integrated design allows simple installation, convenient operation, and reliable long-term performance.

Application Scenarios

1. Central Kitchen Processing

The vegetable drying machine is suitable for central kitchens producing prepared vegetables, meal ingredients, and ready-to-cook food products, helping extend shelf life and improve production efficiency.

2. Dehydrated Vegetable Production

Used for processing dried vegetables such as carrot, onion, spinach, cabbage, garlic, chili, and mushroom for food ingredient suppliers.

3. Fruit Drying Industry

Suitable for drying apple slices, mango slices, lemon, banana, peach, and other fruits while maintaining natural color and flavor.

4. Food Ingredient Manufacturing

Widely applied in seasoning factories and food ingredient plants for drying herbs, spices, grains, and other raw materials.

5. Agricultural Product Processing

Provides an efficient drying solution for farmers, agricultural processors, and food manufacturers handling seasonal products.

6. Meat and Seafood Processing

Can be used for drying sausage, beef, duck, fish, shrimp, and other products requiring controlled moisture removal.

Advantages for Central Kitchen

• Supports large-batch vegetable drying production
• Improves ingredient storage stability
• Reduces dependence on fresh supply chains
• Maintains vegetable appearance and nutritional value
• Suitable for prepared food and meal solution factories
• Easy integration with washing, cutting, cooking, and packaging systems

FAQ

Q1: What materials can be dried by the vegetable drying machine?

The machine can dry vegetables, fruits, herbs, spices, grains, seafood, meat products, and other food materials. Drying parameters can be adjusted according to different products.

Q2: What is the advantage of a heat pump dryer compared with traditional dryers?

Heat pump dryers use air energy recovery technology, providing lower energy consumption, cleaner operation, and better preservation of product quality.

Q3: Can the machine preserve vegetable color and nutrients?

Yes. The low-temperature drying process reduces damage caused by excessive heat and helps maintain the original color, shape, flavor, and nutrients.

Q4: How long does the drying process take?

The drying time depends on material type, thickness, moisture content, and required final moisture level. Normally, one batch can be completed within several hours.

Q5: Is the vegetable dryer suitable for central kitchen production?

Yes. It is designed for commercial food processing and can be integrated into central kitchen and prepared food production systems.

Q6: Can the drying temperature be adjusted?

Yes. The automatic control system allows precise temperature adjustment according to different drying requirements.

Q7: What materials are used for the drying chamber?

The drying chamber uses insulated panels and stainless steel food-grade components to ensure durability, hygiene, and easy cleaning.
