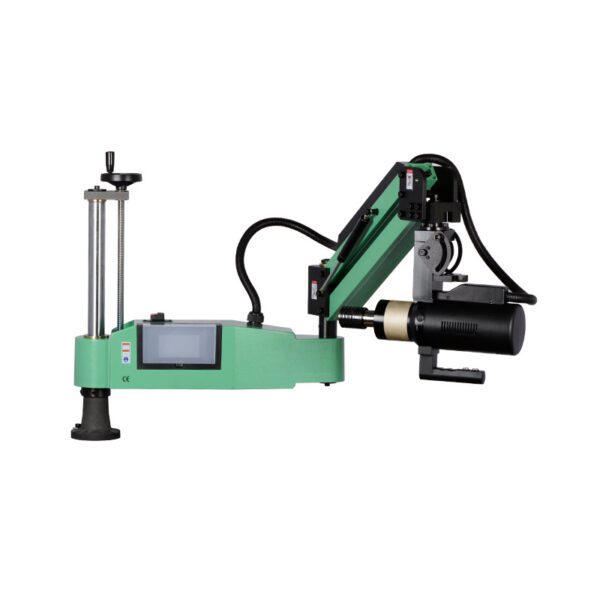

Automatic Tapping Machine M3-M48 Universal Folding Arm Tapping Machine Intelligent CNC Metalworking Machinery

Add to wishlist
Compare
  • Easily control a variety of materials, a wide range of applications. Steel tapping, aluminum tapping, copper tapping, iron tapping, wood tapping, plastic tapping, etc.
  • Intelligent control touch screen.
  • High power servo motor.
  • Flexible central axis, natural rotation.
  • Lift and lower the screw.

$1,039.00 – $4,141.00

Compare

Technical Parameters of the Automatic Tapping Machine

Model M3-M10 M3-M12 M3-M16 M3-M18 M3-M20
Tapping range M3-M10 M3-M12 M3-M16 M3-M18 M3-M20
working radius 1000mm 1000mm 1000mm 1000mm 1000mm
Motor Power 600w 600w 600w 600w 1200w
Maximum speed 1000r/min 550r/min 312r/min 250r/min 550r/min
Number of collets 5pcs 6pcs 8pcs 9pcs 9pcs
Weight 25kg 25kg 25kg 25kg 50kg
Model M6-M24 M6-M33 M6-M36 M33-M40 M12-M48
Tapping range M6-M24 M6-M33 M6-M36 M33-M40 M12-M48
working radius 1200mm 1300mm 1300mm 1300mm 1300mm
Motor Power 1200w 1200w 1200w 1200w 1200w
Maximum speed 200r/min 156r/min 125r/min 50r/min 50-250r/min
Number of collets 8pcs 10pcs 11pcs 3pcs 11pcs
Weight 50kg 50kg 50kg 50kg 110kg

Features of the Automatic Tapping Machine

  • Easily control a variety of materials, a wide range of applications. Steel tapping, aluminum tapping, copper tapping, iron tapping, wood tapping, plastic tapping, etc.

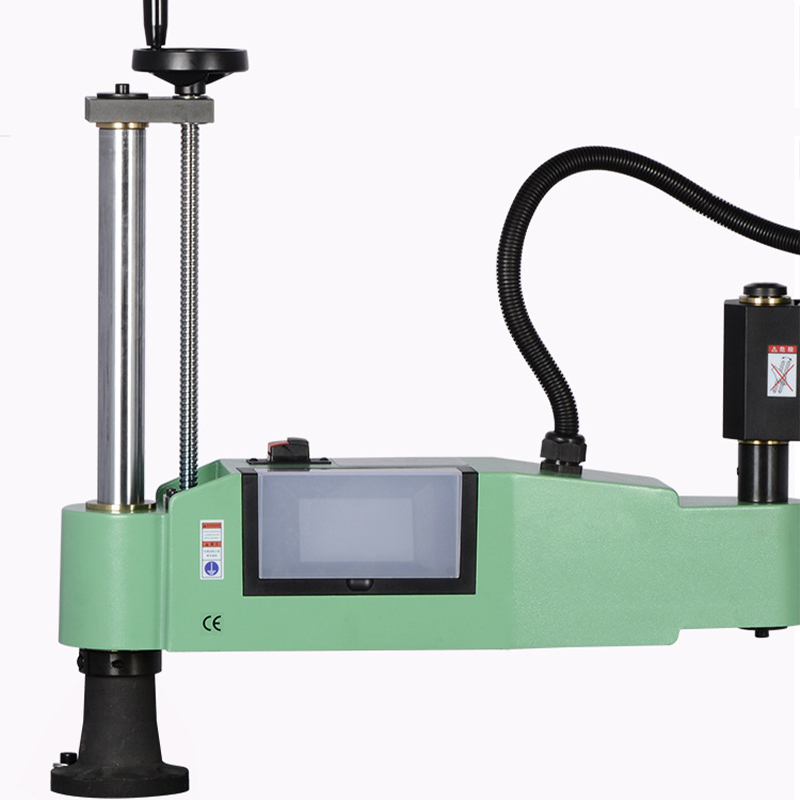

  • Intelligent control touch screen. Intelligent processing, fast sensing, simple setting and convenient operation.
  • High power servo motor. Fast heat dissipation, long running time, and one-time tapping.

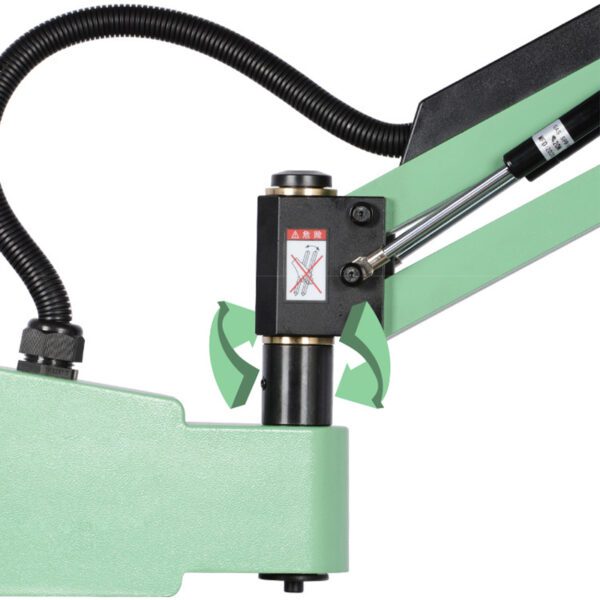

  • Flexible central axis, natural rotation. The double-layer wear-resistant graphite copper sleeve is adopted, the damping setting is comfortable, and it is not easy to slide and change.

  • Lift and lower the screw. Hand crank up and down, convenient and labor-saving.

SKU: N/A Category: Tags: ,
MODEL

M3-M10, M3-M12, M3-M16, M3-M18, M3-M20, M6-M24, M6-M33, M6-M36, M33-M40, M12-M48
