Automatic Grape Juice Production Line for Industrial Processing

Grape Juice Production Line Product Description

The Automatic Grape Juice Production Line for Industrial Processing is a complete fruit processing solution designed for converting fresh grapes into high-quality grape juice and related beverage products.

This industrial grape juice processing line integrates multiple production stages, including fresh grape receiving, sorting, washing, destemming, crushing, juice extraction, filtration, clarification, sterilization, storage, filling, and packaging. The equipment configuration can be customized according to grape varieties, processing capacity, final product requirements, and packaging methods.

The production line is suitable for producing NFC grape juice, clarified grape juice, cloudy grape juice, grape juice beverages, and other grape-based products. Different filtration, clarification, concentration, and filling systems can also be integrated according to the required production process.

Main product-contact components can be manufactured from food-grade stainless steel with hygienic piping and an automatic control system. The optimized processing design helps improve juice extraction efficiency, reduce unnecessary material loss, simplify cleaning, and provide reliable operation for commercial fruit juice production.

Working Process

1. Fresh Grape Receiving and Sorting
Fresh grapes are received and transferred to the sorting section. Leaves, damaged grapes, branches, and other unsuitable materials are removed manually or mechanically.Proper sorting helps maintain consistent raw material quality before juice extraction.

2. Grape Washing
Selected grapes enter the washing system to remove dust, soil, leaves, and surface impurities.Depending on the project requirements, the washing section can use water circulation, bubble washing, or spray cleaning to provide gentle and efficient fruit cleaning.

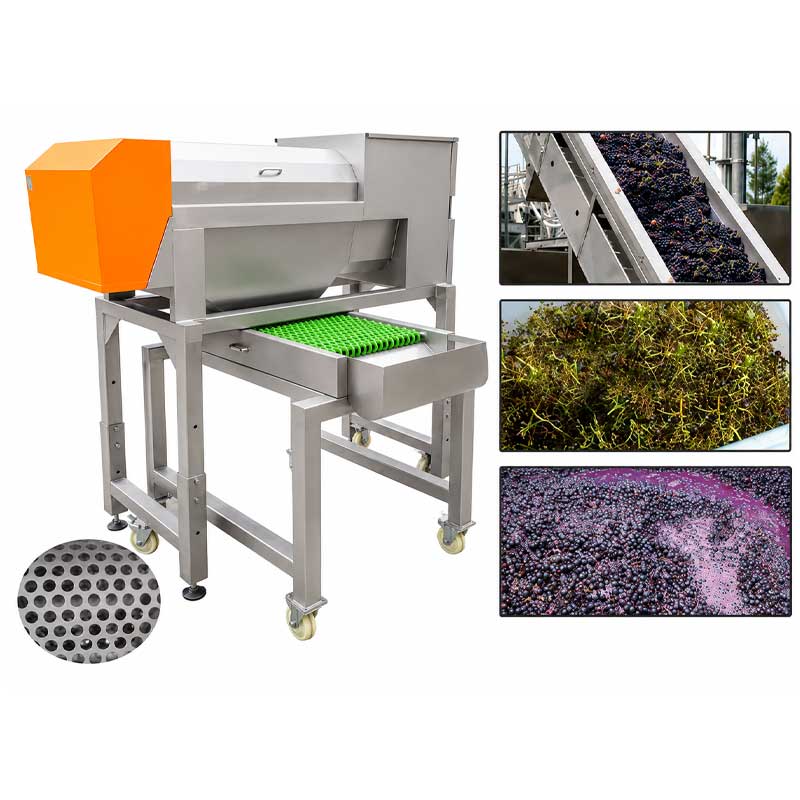

3. Grape Destemming
The cleaned grape bunches are transferred to the destemming machine, where stems are separated from the grapes before crushing.Removing stems helps prepare the raw material for subsequent juice extraction and reduces unwanted plant material entering the processing system.

4. Grape Crushing
After destemming, grapes are gently crushed to break the skins and release juice from the fruit.The crushing intensity can be adjusted according to the grape variety and required final product characteristics.

Product Features

Complete Grape Juice Processing Solution
The production line covers the major stages required for commercial grape juice manufacturing, from fresh grape receiving and washing to juice extraction, treatment, sterilization, and final filling.A complete line reduces the difficulty of integrating equipment from different processing stages and provides a coordinated solution for industrial production.

Efficient Grape Washing and Sorting
The pretreatment section removes impurities and unsuitable fruits before processing.Gentle conveying and washing help minimize unnecessary fruit damage while preparing clean grapes for subsequent processing.

Grape Destemming and Crushing System
Dedicated destemming and crushing equipment prepares grapes efficiently before juice extraction.The processing parameters can be adjusted according to different grape varieties and production requirements.

High-Efficiency Juice Extraction
The pressing system is designed to separate grape juice efficiently from skins, seeds, and other solids.Optimized extraction helps increase raw material utilization and reduce production waste.

Flexible Juice Clarification
Different filtration systems can be selected according to the required finished product.The line can be configured for cloudy grape juice or equipped with additional clarification equipment for producing clearer juice products.

Controlled Thermal Processing
The sterilization system provides controlled heating and holding conditions according to the selected juice process.

Technical Specifications



Why Choose Our Grape Juice Production Line

• Complete Turnkey Juice Processing Solution
  We provide complete grape juice processing solutions covering raw material receiving, washing, destemming, crushing, juice extraction, filtration, sterilization, storage, filling, and packaging.Customers can select a complete turnkey line or individual processing sections according to their existing factory equipment.
• Customized Production Capacity
  Different factories require different production capacities.The equipment configuration can be customized according to hourly grape input, expected juice output, working hours, and future production expansion plans.
• Customized Process Design
  Grape varieties and final juice products can require different processing technologies.We design the production process according to raw material characteristics, required juice clarity, packaging type, and final product specifications.
• High-Quality Food-Grade Equipment
  Product-contact parts use food-grade stainless steel and hygienic processing structures to provide reliable operation in commercial food and beverage production environments.
• Efficient Raw Material Utilization
  The optimized destemming, crushing, and pressing system helps improve grape utilization and reduce unnecessary juice loss during processing.

Applications

• Grape Juice Production Factory
  Suitable for commercial production of grape juice using fresh grapes as raw materials. The line provides continuous processing from fruit preparation through juice extraction and filling.
• NFC Grape Juice Production
  Can be configured for producing not-from-concentrate grape juice with appropriate juice extraction, treatment, pasteurization, and filling equipment.
• Clarified Grape Juice Processing Plant
  Additional clarification and filtration systems can be integrated when manufacturers require clear grape juice with reduced suspended solids.
• Cloudy Grape Juice Production
  The processing configuration can also be adjusted for naturally cloudy grape juice where part of the fine fruit components are retained.
• Fruit Beverage Factory
  Suitable for beverage manufacturers producing grape drinks, mixed fruit beverages, and other grape-based products.
• Grape Processing Factory
  The line can form part of a larger grape processing facility producing juice and other value-added grape products.
• Agricultural Processing Center
  Suitable for grape-growing regions seeking industrial processing solutions to convert harvested fruit into higher-value commercial products.

FAQ

1. What is the capacity of the grape juice production line?
The producton capacity can be customized according to customer requirements. Equipment selection depends on fresh grape input, required juice output, working hours, and packaging capacity.

2. Does the production line include a grape destemming machine?
Yes. A grape destemming system can be included before crushing and juice extraction to separate stems from the fruit.

3. Can this line produce both clear and cloudy grape juice?
Yes. Different filtration and clarification configurations can be selected according to whether clear or cloudy grape juice is required.

4. What material is used for the grape juice processing equipment?
Product-contact parts are generally manufactured from food-grade stainless steel, with the specific material selected according to the process and project requirements.

5. Does the line include juice sterilization?
Yes. Pasteurization or sterilization equipment can be integrated according to the required final product and filling method.

6. Can the grape juice production line include CIP cleaning?
Yes. A CIP cleaning system can be integrated to simplify cleaning of tanks, pipelines, and applicable processing equipment.

7. What packaging formats are available?
The line can be connected with filling equipment for PET bottles, glass bottles, cans, cartons, bag-in-box packages, and aseptic bags according to project requirements.
