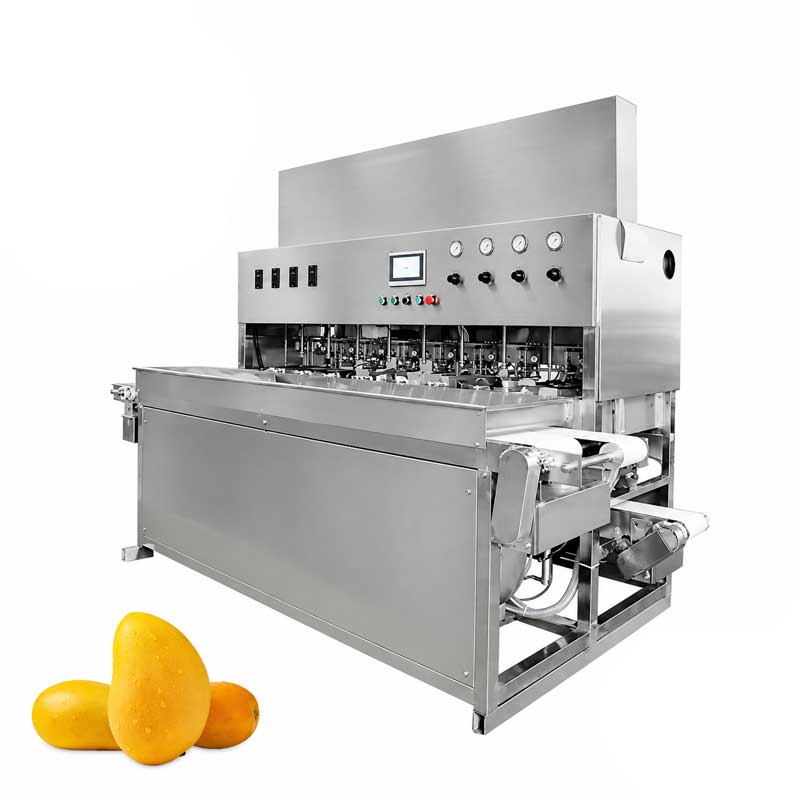

Automatic Fruit Peeling Machine for Food Processing

Fruit Peeling Machine Product Introduction

The Automatic Fruit Peeling Machine for Food Processing provides an efficient solution for commercial fruit preparation and industrial processing lines. It automatically removes fruit skin while minimizing unnecessary removal of edible flesh, helping processors improve productivity, product consistency, and raw material utilization.

Unlike manual peeling, the automatic system provides more consistent processing across large production batches. Its adjustable peeling mechanism can accommodate fruits of different sizes and shapes, making the machine suitable for processing mangoes, apples, oranges, persimmons, and other compatible fruits. The reference machine achieves a peeling rate of up to 98% and a processing capacity of approximately 1,200 pieces per hour.

The machine is manufactured from food-grade 304 stainless steel for durability, corrosion resistance, and convenient sanitation. Its modular construction also facilitates cleaning and routine maintenance. Optional coring and half-cutting functions can be incorporated according to the required finished product.

Whether used as standalone fruit preparation equipment or integrated into a complete washing, peeling, cutting, pulping, drying, freezing, or packaging line, the machine provides a flexible solution for modern fruit processing facilities.

Key Features

High Peeling Efficiency
The optimized peeling mechanism provides a peeling rate of up to 98%, helping reduce residual skin and the need for extensive manual trimming.

Adjustable Peeling System
The peeling mechanism can adapt to different fruit sizes and ripeness conditions. This helps achieve more consistent skin removal while limiting unnecessary flesh loss.

Up to 1,200 Pieces per Hour
The reference configuration processes approximately 1,200 pcs/h, making it suitable for commercial and industrial fruit-processing applications.

Reduced Fruit Loss
Controlled peeling removes the outer skin with greater precision than inconsistent manual cutting, helping improve usable fruit yield.

304 Stainless Steel Construction
Food-grade 304 stainless steel provides good corrosion resistance and durability while supporting hygienic operation in food-processing environments.

Optional Coring & Cutting
In addition to automatic peeling, coring and half-cutting functions can be configured according to the customer’s finished-product requirements.

Easy Cleaning & Maintenance
The modular structure allows convenient disassembly of relevant components, simplifying routine cleaning and sanitation.

How Does the Fruit Peeling Machine Work?

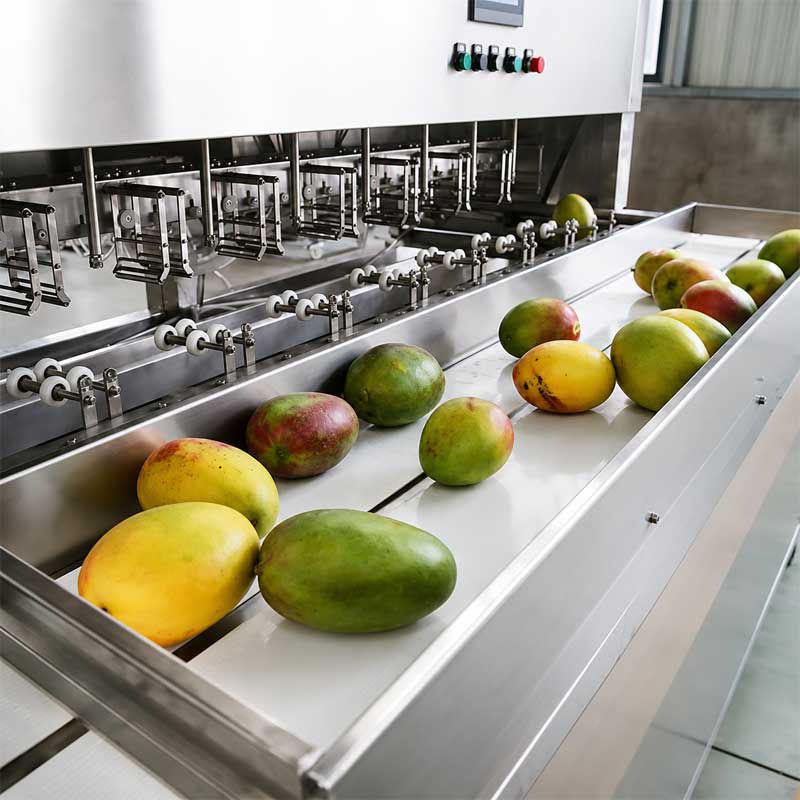

1. Fruit Feeding
Washed fruits are manually or automatically fed into the processing positions.For a complete production line, the machine can be connected directly to an upstream fruit washing and conveying system.

2. Fruit Positioning
Each fruit is positioned and held securely to maintain stability during peeling.Correct positioning is especially important for fruits with irregular or asymmetrical shapes.

3. Automatic Peeling
The peeling mechanism follows the contour of the fruit and removes the outer skin.The system can be adjusted according to fruit size, shape, and ripeness to achieve consistent peeling results. The reference manufacturer specifically highlights an adjustable blade system for accommodating different mango conditions.

4. Optional Coring & Cutting
Depending on configuration, peeled fruits can undergo additional processing such as coring or half-cutting.

5. Product Discharge
The peeled fruit is discharged and transferred to the next production stage, such as trimming, slicing, dicing, pulping, freezing, drying, or packaging.

Technical Specifications

Applications

• Frozen Fruit Processing
  Peeled fruits can proceed to cutting, dicing, and IQF freezing for frozen fruit production.
• Fruit Puree & Pulp Production
  Suitable for preparing mangoes, apples, and other fruits before crushing, pulping, refining, and pasteurization.
• Dried Fruit Production
  Automatically peeled fruit can proceed to slicing and drying for dried mango, dried apple, and other products.
• Jam & Sauce Production
  Suitable for preparing fruits before crushing, cooking, concentration, and filling. Jam production facilities are specifically listed among the applications of the reference equipment.
• Fresh-Cut Fruit
  The machine can reduce manual preparation requirements for fruit intended for fresh-cut and ready-to-eat processing.

Machine Structure

A typical automatic fruit peeling machine consists of:

• Fruit feeding system
• Fruit positioning mechanism
• Fruit holding system
• Adjustable peeling mechanism
• Peeling blades
• Drive system
• Fruit discharge section
• Peel collection area
• Stainless steel machine frame
• Motor and transmission system
• Electrical control system
• Safety protection components

Why Choose Our Fruit Peeling Machine?

Precise Peeling
The adjustable peeling mechanism follows the shape of the fruit to remove skin while limiting excessive pulp loss.

High Processing Efficiency
A reference capacity of up to 1,200 pieces per hour provides an efficient alternative to manual peeling.

Up to 98% Peeling Rate
Optimized processing helps achieve consistent skin removal and reduce secondary manual trimming.

Multi-Fruit Capability
The machine can process mangoes, apples, oranges, persimmons, and other suitable fruits with appropriate configuration.

Hygienic Stainless Steel Design
Food-grade 304 stainless steel construction provides durability and facilitates daily sanitation.

Easy Maintenance
Modular components and accessible processing areas simplify routine inspection, cleaning, and maintenance.

Flexible Processing Functions
Peeling can be combined with optional coring and half-cutting according to the final product.

FAQ

What is an automatic fruit peeling machine?
An automatic fruit peeling machine is industrial food-processing equipment designed to mechanically remove the outer skin of fruits while minimizing damage and unnecessary flesh loss.

What fruits can this machine peel?
The reference equipment is suitable for mangoes, oranges, apples, persimmons, and other compatible fruits. Machine configuration can be adjusted according to fruit size and variety.

What is the processing capacity?
The reference configuration has a processing capacity of approximately 1,200 pieces per hour. Actual output depends on fruit type, size, condition, and machine configuration.

What is the peeling rate?
The reference machine achieves a peeling rate of up to 98% under suitable processing conditions.

Will the machine remove too much fruit flesh?
The adjustable peeling mechanism is designed to follow the fruit contour and control peeling depth, helping minimize unnecessary pulp loss.

Can it process different mango sizes?
Yes. The reference machine can handle different mango sizes and varieties, including oval and round fruits, with customized adjustments where necessary.

Can the machine also remove fruit cores?
Yes. Coring and half-cutting are available as optional functions according to the reference configuration.

What material is the machine made from?
The reference machine is manufactured from food-grade 304 stainless steel
