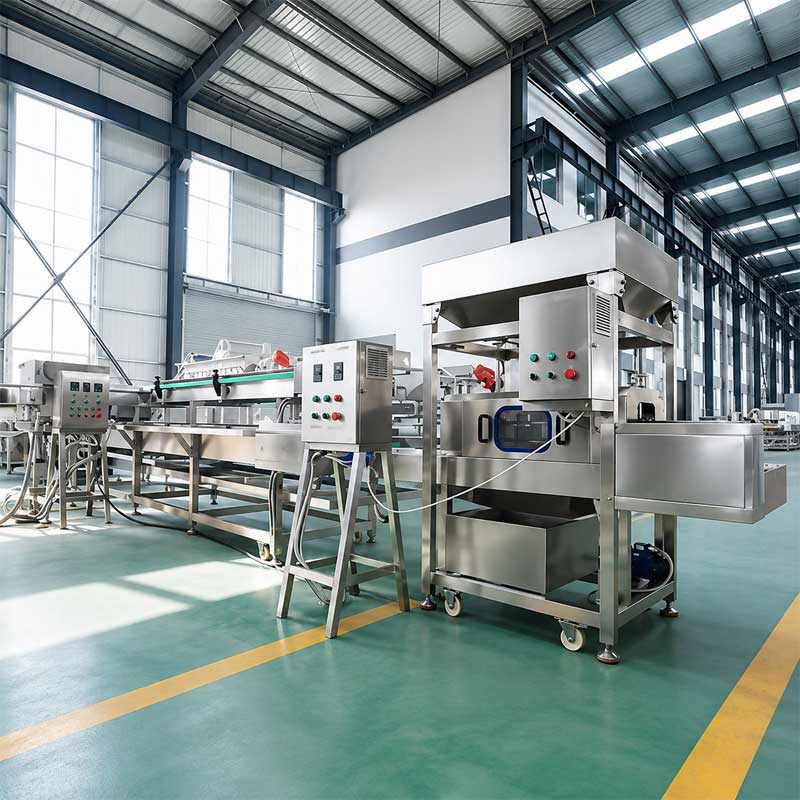

Automatic Cucumber Pickle Canning and Processing Line

Cucumber Pickle Canning and Processing Line Product Introduction

The Automatic Cucumber Pickle Canning and Processing Line provides an integrated solution for converting fresh cucumbers into commercially packaged pickled cucumber products. The system combines raw material preparation, thermal treatment, filling, brine dosing, sealing, and sterilization to achieve efficient and consistent industrial production.

Fresh cucumbers first pass through a washing system to remove soil and surface contaminants. Depending on the required process, brush washing and bubble washing can be combined to provide thorough yet gentle cleaning. The cucumbers then undergo controlled blanching followed by secondary washing or cooling before entering the packaging section.

Empty jars, cans, or other suitable containers are cleaned before filling. Prepared cucumbers are loaded into the containers, followed by accurate dosing of vinegar brine, salt solution, or seasoned pickling liquid. The containers are then securely sealed and transferred to the thermal processing section.

The complete line can be customized according to cucumber size, finished-product style, production capacity, container format, brine recipe, sterilization requirements, and available factory space. The reference configuration supports whole and sliced cucumbers and multiple packaging formats.

Key Features

Complete Pickle Processing Solution
Combines cucumber preparation, washing, blanching, filling, brine dosing, sealing, and sterilization in a coordinated production process.

Gentle Cucumber Cleaning
Brush rollers, water circulation, bubbles, and spray washing can effectively remove surface dirt while reducing unnecessary damage to the cucumbers.

Controlled Blanching Process
Temperature and conveying speed can be controlled according to cucumber characteristics and the required product process.

Dual Filling System
Cucumbers and pickling liquid are handled separately, allowing better control of solid product quantity and brine filling volume.

Flexible Brine Formulations
The liquid filling system can accommodate suitable vinegar-based, saltwater, and seasoned pickling solutions according to the product recipe.

Reliable Container Sealing
Suitable capping or can-seaming equipment can be configured according to whether the product uses glass jars, metal cans, or other compatible containers.

Controlled Thermal Processing
The final thermal treatment can be configured according to product formulation, packaging type, container dimensions, and required shelf-life process.

Processing Flow

1. Cucumber Sorting & Inspection
Fresh cucumbers are received and inspected before processing. Damaged, overripe, undersized, or otherwise unsuitable raw materials can be removed manually or through a grading system.

2. Primary Washing
Cucumbers enter the washing section to remove soil, dust, agricultural residues, and other surface impurities. Brush washing can also help clean the textured cucumber surface.

3. Blanching
The cleaned cucumbers pass through a controlled blanching system. The reference equipment provides adjustable thermal treatment within an 80–100°C operating range. Actual temperature and residence time should be established according to the product formulation and desired texture.

4. Secondary Washing & Cooling
After blanching, cucumbers can undergo secondary washing or cooling to remove remaining surface residues and control product temperature before filling.

5. Container Washing
Empty glass jars, bottles, cans, or suitable containers are cleaned before entering the filling section to provide hygienic packaging conditions.

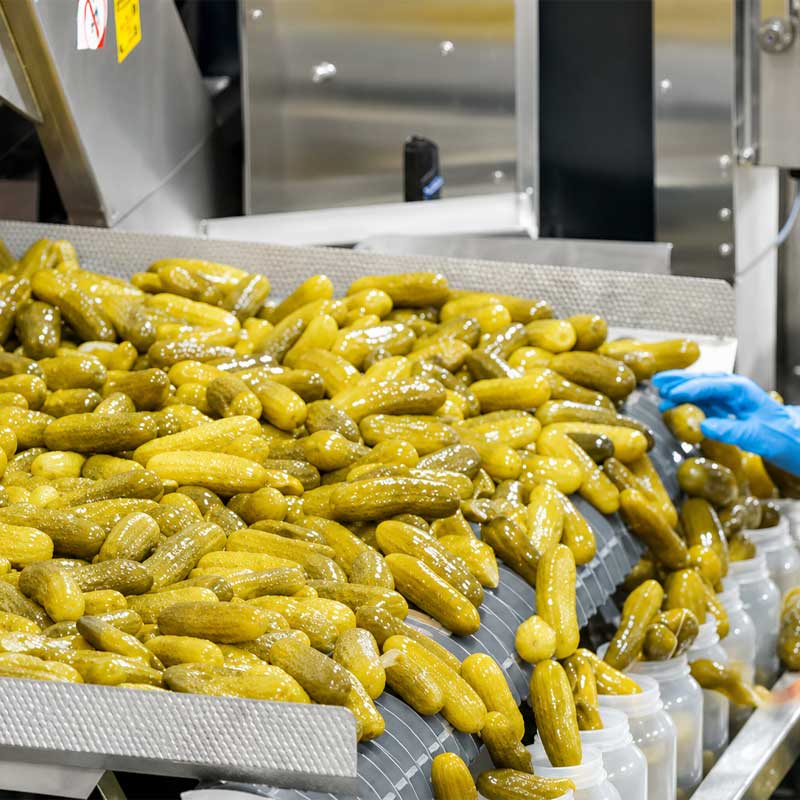

6. Cucumber Filling
Whole or sliced cucumbers are transferred into the prepared containers. Filling equipment can be selected according to cucumber dimensions, container opening, and required fill weight.

7. Brine Filling
Pickling liquid is accurately dosed into each container. Depending on the recipe, this can include vinegar-based brine, saltwater, or suitable seasoned solutions.

8. Capping or Sealing
Filled containers are closed using an appropriate sealing system. Glass jars can use compatible capping systems, while metal cans require suitable can-seaming equipment.

9. Thermal Processing
Sealed containers undergo the specified pasteurization or sterilization process. The correct process depends on factors such as product pH, formulation, container type and size, and required shelf life.

10. Cooling & Packaging
After thermal processing, containers are cooled before entering downstream drying, labeling, date coding, case packing, and storage operations.

Technical Specifications



Main Equipment

A complete cucumber pickle processing line can include:

• Cucumber receiving hopper
• Feeding conveyor
• Sorting and inspection conveyor
• Cucumber grading machine

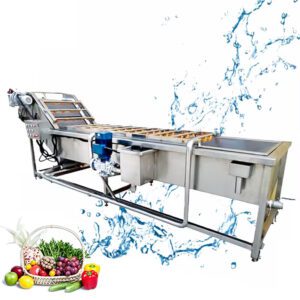

• Brush roller washing machine
• Bubble washing machine
• Spray rinsing system
• Continuous blanching machine
• Cooling or secondary washing machine
• Empty container washing machine
• Cucumber filling machine
• Brine preparation tank
• Brine mixing system
• Brine filling machine
• Jar capping machine
• Can sealing machine
• Thermal processing system
• Cooling system
• Container drying machine
• Labeling machine
• Date coding machine
• Case packing equipment

Finished Products

• Whole Pickled Cucumbers
  Whole cucumbers can be packed into jars or cans with vinegar, salt brine, spices, and other ingredients according to the required recipe.
• Sliced Pickled Cucumbers
  A cutting section can be added to produce sliced cucumber products for retail, food-service, burger, sandwich, and catering applications.
• Brined Cucumbers
  Suitable for cucumber products preserved in controlled saltwater formulations before subsequent packaging or processing.
• Spiced Pickles
  Garlic, chili, dill, herbs, spices, and other suitable flavor ingredients can be incorporated according to the manufacturer’s recipe.
• Different Pickle Sizes
  The raw material sorting and filling sections can be adapted for different cucumber diameters and lengths to support different finished-product specifications.

Why Choose Us?

Complete Pickle Processing System
We can configure the complete production process from fresh cucumber receiving and washing through filling, sealing, thermal processing, and final packaging, reducing compatibility issues between individual machines.

Designed for Delicate Cucumbers
The washing, conveying, and filling sections can be configured to minimize excessive mechanical impact, helping preserve cucumber shape and appearance during processing.

Separate Cucumber and Brine Filling
Dedicated solid and liquid filling systems allow the cucumber quantity and brine volume to be controlled independently, providing greater flexibility for different recipes and container sizes.

Flexible Recipe Production
The line can accommodate different suitable pickling formulations, allowing manufacturers to produce classic vinegar pickles, salt-brined cucumbers, dill pickles, spicy pickles, and other product varieties.

Multiple Packaging Formats
Equipment can be configured for glass jars, metal cans, and other suitable containers, providing flexibility for retail and food-service product formats.

Hygienic Stainless Steel Construction
Food-contact sections use food-grade stainless steel, while accessible equipment structures facilitate cleaning, sanitation, drainage, inspection, and routine maintenance.

Customized Factory Layout
Production line arrangement can be designed according to workshop dimensions, production direction, water supply, drainage, steam source, packaging area, and other site conditions.

FAQ

What products can this cucumber processing line produce?
The line can be configured for whole pickled cucumbers, sliced pickles, brined cucumbers, dill pickles, spicy cucumber products, and other preserved cucumber products.

Can both whole and sliced cucumbers be processed?
Yes. The reference filling system supports whole and sliced cucumber products. A cutting section can be added when sliced pickles are required.

Why are cucumbers washed before processing?
Fresh cucumbers can carry soil and other surface contaminants. Brush, bubble, and spray washing help clean the raw material before subsequent processing.

Why is blanching used?
Controlled blanching can be incorporated to modify texture and stabilize product characteristics before filling. Temperature and residence time should be adjusted according to cucumber variety and the intended product.

Can the line fill brine automatically?
Yes. A dedicated liquid filling system can automatically dose vinegar brine, saltwater, or suitable seasoned solutions into containers.
