Automatic Cosmetic Bottle Capping Machine for Packaging

Automatic Cosmetic Bottle Capping Machine Product Introduction

Automatic Cosmetic Bottle Capping Machine for Packaging is an advanced automatic sealing solution designed for cosmetic, perfume and personal care product manufacturers. The machine is specially developed for automatic cap feeding, bottle positioning and capping operations, helping improve packaging efficiency and sealing consistency.

This automatic capping machine is suitable for various cosmetic containers, including perfume bottles, essential oil bottles, spray bottles, lotion bottles and other small packaging containers. Equipped with a servo-controlled capping system and automatic cap sorting device, it ensures accurate positioning and stable sealing performance during continuous production.

With a stainless steel structure, intelligent PLC control and flexible adjustment system, the equipment provides a reliable packaging solution for cosmetic factories requiring high efficiency, precision and hygienic production standards. The machine can be customized according to different bottle sizes, cap types and production requirements.

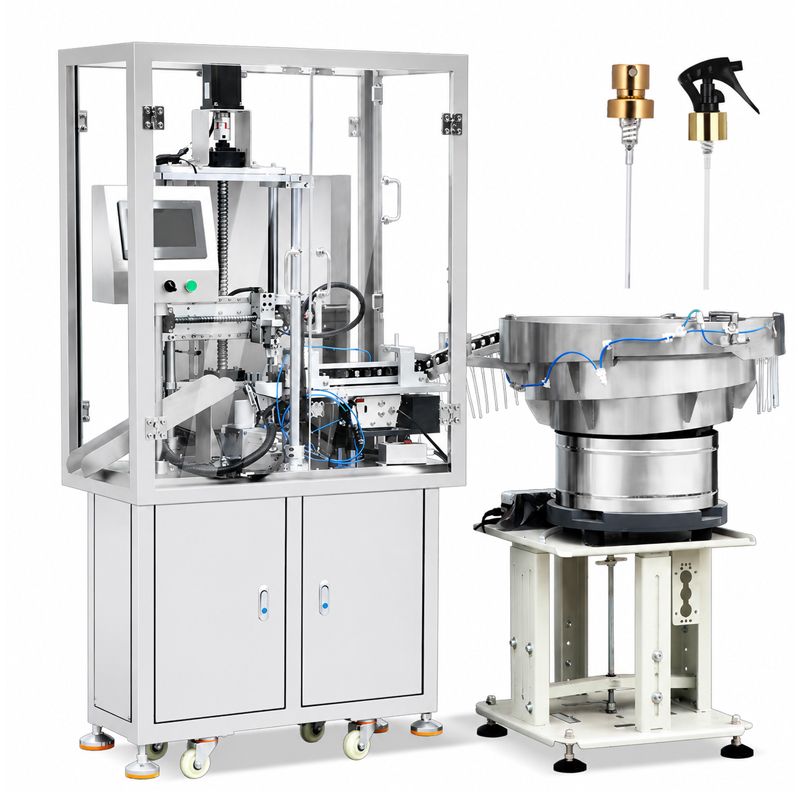

System Overview

The Automatic Cosmetic Bottle Capping Machine integrates automatic cap sorting, bottle positioning and sealing functions into one compact packaging system.

The complete machine mainly consists of:

• Automatic cap feeding system
• Vibratory bowl sorter
• Bottle positioning mechanism
• Servo capping unit
• PLC touch screen control system
• Bottle conveying system

The equipment automatically completes the cap supply, bottle positioning and sealing process, reducing manual operation and improving production efficiency.

Working Principle

The bottles are transferred into the capping station through the conveyor system.

The vibratory bowl feeder automatically arranges and supplies caps in the correct direction. The cap gripping mechanism picks up the cap and accurately places it onto the bottle.

The servo-driven capping system then applies controlled force to complete the sealing process. Finished bottles are automatically discharged for the next packaging step.

The entire process is controlled by PLC, ensuring stable operation and consistent sealing quality.

Packaging Process

Bottle Feeding → Cap Sorting → Cap Feeding → Bottle Positioning → Cap Gripping → Servo Capping → Finished Bottle Output

Detailed Process:

1. Bottle Feeding
   Empty bottles are transferred into the capping station automatically.
2. Cap Sorting
   Caps are arranged into the correct position through the vibratory bowl feeder.
3. Cap Feeding
   The feeding system delivers caps accurately to the capping mechanism.
4. Bottle Positioning
   Bottles are fixed precisely to avoid movement during sealing.
5. Automatic Capping
   The servo-controlled mechanism completes accurate and stable sealing.
6. Finished Product Output
   Sealed bottles are transported to the next packaging process.

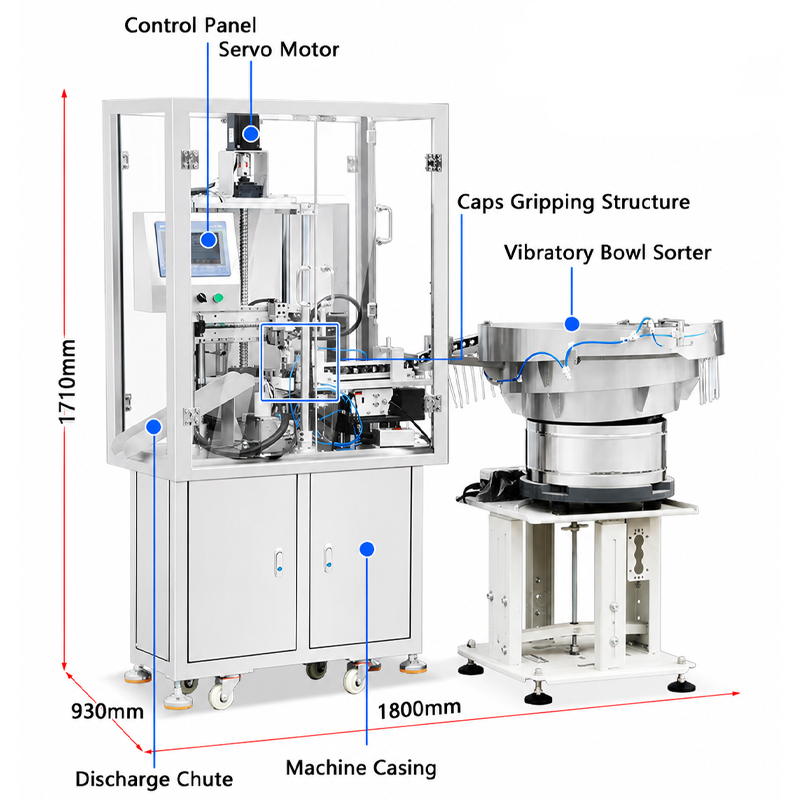

Main Equipment Components

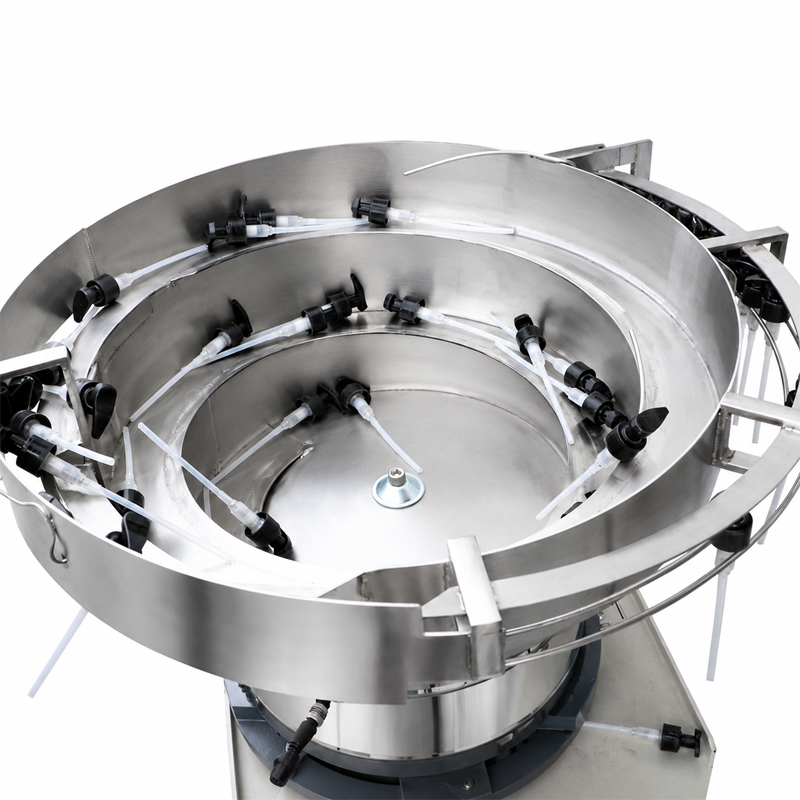

Vibratory Bowl Sorter

Automatically organizes bottle caps into the correct direction and provides continuous cap supply.

Cap Gripping Structure

Precisely picks up and places caps onto bottles before sealing.

Servo Capping Unit

Controls the capping process with high accuracy and stable sealing force.

Bottle Positioning System

Keeps bottles stable during the sealing process to improve capping accuracy.

PLC Touch Screen

Provides simple operation, parameter adjustment and production monitoring.

Main Features & Advantages

Automatic Cap Feeding System

The vibratory bowl feeder automatically sorts and supplies caps, ensuring continuous and stable cap feeding without manual placement.

Servo-Controlled Capping System

The servo motor provides precise control of capping speed and force, helping prevent loose caps or excessive tightening.

High Packaging Efficiency

The automatic operation reduces labor requirements and improves production speed for cosmetic packaging lines.

Wide Application Range

Suitable for different types of cosmetic containers, including perfume bottles, essential oil bottles, spray bottles and personal care packaging.

Intelligent PLC Control

The touch screen control system allows convenient parameter adjustment and real-time operation monitoring.

Stainless Steel Hygienic Design

The machine adopts stainless steel construction, providing durability, corrosion resistance and easy cleaning.

Flexible Customization

The equipment can be customized according to bottle dimensions, cap styles and production capacity requirements.

Technical Parameters

Parameter	Specification
Equipment Type	Automatic Cosmetic Tube Processing Machine
Applicable Tube Diameter	4–9.5 mm
Tube Length Before Cutting	65–330 mm
Tube Length After Cutting	60–320 mm
Cutting Length Range	5–270 mm
Working Speed	15–25 pieces/min
Machine Voltage	110V / 220V, 50–60Hz
Main Machine Size	1800 × 930 × 1710 mm (L×W×H)
Main Machine Package Size	1100 × 560 × 1850 mm (L×W×H)
Vibratory Bowl Sorter Size	1400 × 950 × 750 mm (L×W×H)
Main Machine Package Weight	Approx. 210 kg
Vibratory Bowl Sorter Weight	Approx. 220 kg
Control System	Automatic Control System
Feeding Method	Vibratory Bowl Feeding

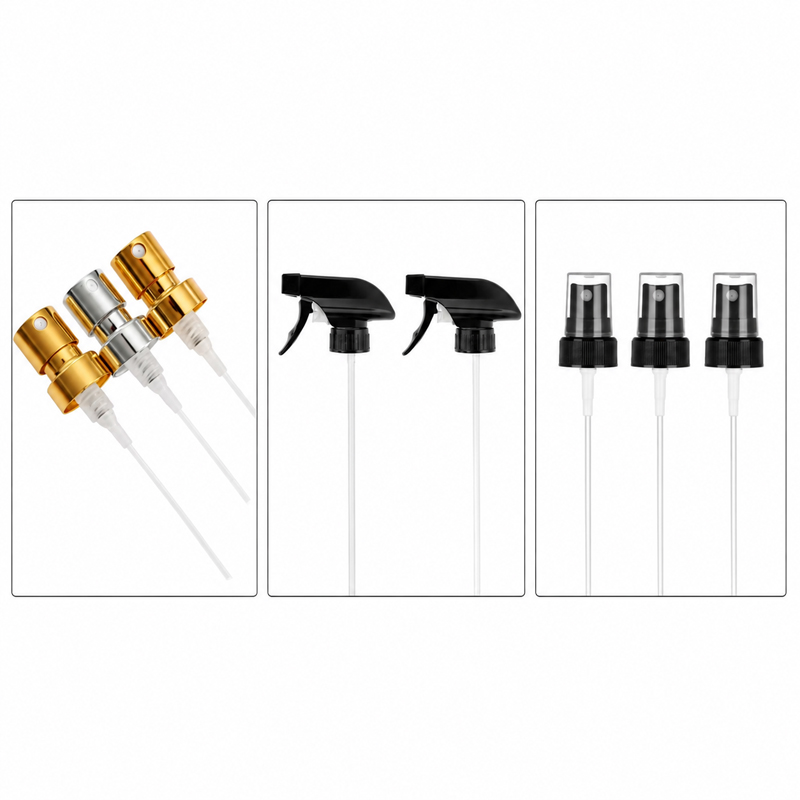

Application	Cosmetic Bottle, Perfume Bottle and Personal Care Packaging

Application Scenarios

Cosmetic manufacturers use this automatic capping machine for sealing perfume bottles, skincare containers and personal care products.

Essential oil producers apply the equipment for automatic sealing of small glass bottles and liquid fragrance packaging.

Perfume factories use the machine for high-speed bottle capping operations after filling processes.

Beauty product manufacturers utilize the equipment for packaging lotions, serums and other cosmetic products.

Small bottle packaging companies use this machine to improve production efficiency and reduce manual labor.

Contract packaging factories integrate this equipment into complete cosmetic filling and packaging lines.

Personal care product suppliers apply the machine for standardized bottle sealing and mass production.

Industry Applications

Cosmetics Industry: Used for automatic sealing of perfume bottles, skincare bottles and beauty product containers.

Perfume Industry: Provides efficient capping solutions for fragrance bottles and spray packaging.

Essential Oil Industry: Suitable for sealing essential oil bottles and aromatherapy product containers.

Personal Care Industry: Supports packaging of lotions, serums and other personal care products.

Healthcare Product Industry: Used for small bottle packaging applications requiring stable sealing.

Chemical Product Industry: Suitable for packaging small liquid containers and specialty products.

Contract Packaging Industry: Provides flexible automatic capping solutions for various brands.

Why Choose This Automatic Cosmetic Bottle Capping Machine?

• Professional solution for cosmetic bottle sealing
• Automatic cap feeding and positioning
• High precision servo control
• Compatible with different bottle types
• Hygienic stainless steel construction
• Easy operation with PLC system
• Suitable for small and large-scale production
• Custom configurations available

FAQ

1. What products can this Automatic Cosmetic Bottle Capping Machine handle?

This machine is suitable for various cosmetic packaging containers, including perfume bottles, essential oil bottles, spray bottles, lotion bottles, serum bottles and other small liquid containers.

2. What is the main function of this cosmetic capping machine?

The machine is designed for automatic cap sorting, cap feeding, bottle positioning and capping operations, helping manufacturers achieve efficient and stable bottle sealing.

3. Can this machine be used for perfume and essential oil bottles?

Yes. The equipment is widely used for perfume bottles, fragrance containers and essential oil packaging, providing accurate positioning and reliable sealing performance.

4. How does the automatic cap feeding system work?

The vibratory bowl feeder automatically arranges caps in the correct direction and continuously supplies them to the capping station, reducing manual operation and improving production efficiency.

5. Can the capping force be adjusted?

Yes. The servo-controlled capping system allows adjustment of capping speed and sealing force according to different bottle materials and cap requirements.

6. Can this machine be integrated with a filling machine?

Yes. The automatic capping machine can be connected with filling machines, labeling machines and other packaging equipment to create a complete cosmetic bottle packaging line.

7. What materials are suitable for this capping machine?

The machine can handle different types of glass and plastic cosmetic bottles, depending on bottle size, shape and cap design.

8. Is the machine easy to operate?

Yes. The machine is equipped with a PLC touch screen control system, allowing operators to easily adjust parameters and monitor the production process.

9. Can the machine be customized for different bottle sizes?

Yes. The equipment can be customized according to bottle dimensions, cap types, production speed and specific packaging requirements.

10. What industries can use this automatic bottle capping machine?

This machine is widely used in cosmetics, perfume, essential oil, personal care, healthcare and other industries requiring automatic small bottle sealing solutions.
