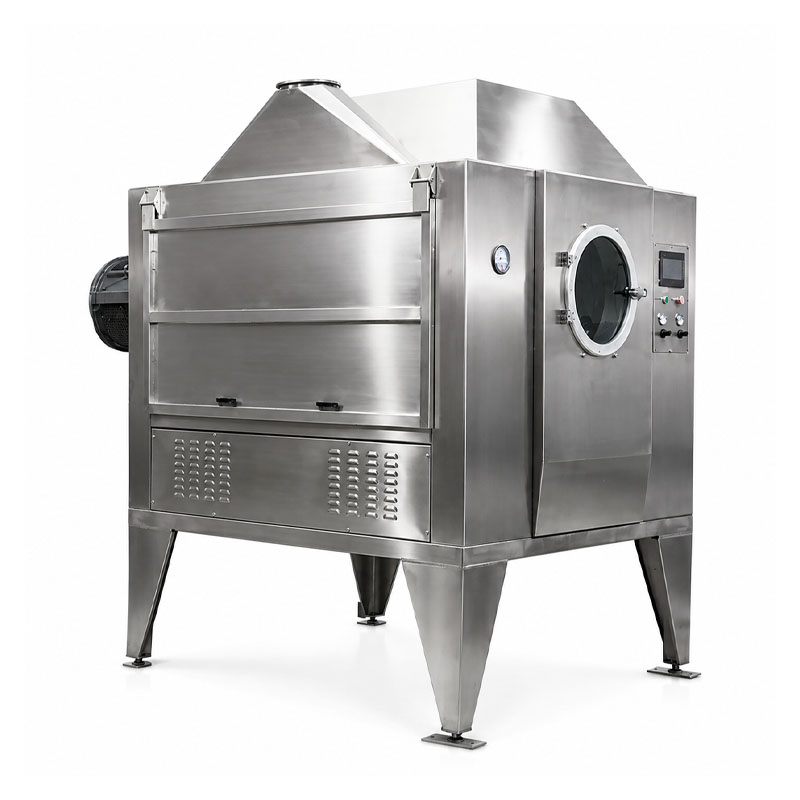

Automatic Chocolate Coating Equipment for Puffed Snacks

Product Introduction of Automatic Chocolate Coating Equipment

The automatic chocolate coating equipment is an advanced solution for producing high-quality coated puffed snacks and food products. It is designed to apply smooth and consistent layers of chocolate, sugar, or other coating materials onto product surfaces, improving flavor, texture, and visual appeal.

The equipment integrates automatic feeding, coating control, and product handling systems to achieve continuous and stable operation. Its optimized internal structure allows gentle processing of delicate snacks while maintaining product integrity during coating.

The coating process can be customized according to different product requirements, including chocolate coating, sugar coating, and decorative finishing. Optional systems such as syrup supply, chocolate storage, powder distribution, and automatic dosing devices can further enhance production flexibility.

Suitable for puffed snacks, extruded foods, coated chips, cereal snacks, and confectionery products, this automatic coating machine helps food manufacturers improve efficiency, reduce labor requirements, and achieve consistent product quality.

Working Principle

The automatic coating machine works by continuously feeding puffed snacks into the coating chamber, where products rotate or move under controlled conditions. Coating materials such as melted chocolate, syrup, or sugar solution are evenly distributed onto the product surface.

During operation, the machine controls coating speed, material flow, and product movement to achieve consistent coverage. Additional systems can supply coating materials, distribute powders, or apply decorative ingredients according to production requirements.

After coating, products continue through the discharge section for further cooling, drying, or packaging. The automated process reduces manual handling while improving coating quality and production efficiency.

Process Flow:

feeding → coating material supply → product mixing and coating → surface finishing → discharge → cooling/packaging

Equipment Structure

Automatic Feeding System

Ensures continuous and stable product input.

Coating Chamber

Provides controlled product movement and coating application.

Material Supply System

Delivers chocolate, syrup, or other coating materials accurately.

Powder Distribution System

Allows additional powder or seasoning application.

Control System

Provides convenient operation and parameter adjustment.

Cleaning System

Supports hygienic operation and easier maintenance.

Product Parameter Table

Parameter	Specification
Machine Capacity	400–600 kg/batch
Drum Volume	500 L
Total Power	12 kW
Rotary Drum Speed	2–12 rpm
Feeding Inlet Diameter	450 mm
Rotary Drum Diameter	1600 mm
Rotary Drum Length	1500 mm
Air Cylinder Pressure	0.4 MPa
Powder Tank Capacity	100 L
Hot Water Tank Capacity	300 L with 6 kW Heating
Power Supply	380V, 50Hz or Customized

Key Features

• Automatic coating process improves production efficiency and product consistency
• Suitable for chocolate, sugar, and various coating materials
• Gentle processing protects delicate puffed snack structures effectively
• Adjustable coating parameters meet different product requirements easily
• Uniform coating improves snack appearance and consumer appeal
• Automatic feeding system reduces manual operation requirements significantly
• Flexible configuration supports different coating production solutions
• Hygienic design simplifies cleaning and daily maintenance operations
• Stable operation ensures continuous food processing performance
• Compatible with complete snack production line integration

Applications

Chocolate Coated Puffed Snacks

Provides smooth chocolate layers for puffed snacks with enhanced taste and appearance.

Sugar Coated Snack Production

Applies even sugar coating for sweet snack products.

Extruded Food Processing

Suitable for coating various shapes of extruded snack products.

Puffed Rice Snack Manufacturing

Creates attractive coated rice-based snack products.

Cereal Snack Processing

Used for adding flavor coatings to cereal-based products.

Confectionery Production

Supports coating applications for candy and specialty snack products.

Decorative Snack Manufacturing

Allows additional finishing with powder, color, or flavor materials.

Advantages

Multiple Coating Applications

Supports chocolate coating, sugar coating, and decorative finishing processes.

Improved Product Value

Enhances snack flavor, texture, and visual appearance.

Flexible Production

Suitable for different puffed snack shapes and coating requirements.

Reduced Labor Cost

Automatic operation decreases manual intervention during production.

Consistent Quality

Precise control ensures stable coating thickness and product quality.

FAQ

1. What products can be processed by this automatic coating machine?

This machine is suitable for coating puffed snacks, extruded foods, cereal snacks, chips, confectionery products, and other food items requiring surface coating.

2. What types of coating materials can be used?

The machine can apply different coating materials, including chocolate, sugar syrup, sugar-free coating, seasoning powder, and other suitable food coatings.

3. How does the machine achieve uniform coating?

The equipment controls product movement, coating material supply, and processing parameters to ensure even distribution and consistent coating thickness on product surfaces.

4. Is this machine suitable for delicate puffed snacks?

Yes. The optimized internal structure allows gentle product handling, helping protect fragile puffed snacks during the coating process.

5. Can the coating amount be adjusted?

Yes. Coating speed, material flow, and processing settings can be adjusted according to different products and coating requirements.

6. Can the machine add different flavors or decorative materials?

Yes. Optional systems can be equipped for powder distribution, flavor addition, color decoration, and other finishing processes.

7. Can this equipment be integrated into a complete snack production line?

Yes. The coating machine can be connected with feeding, cooling, drying, and packaging equipment to form an automated snack production line.

8. What are the advantages of automatic coating compared with manual coating?

Automatic coating provides more stable quality, higher production efficiency, reduced labor requirements, and better consistency between batches.
