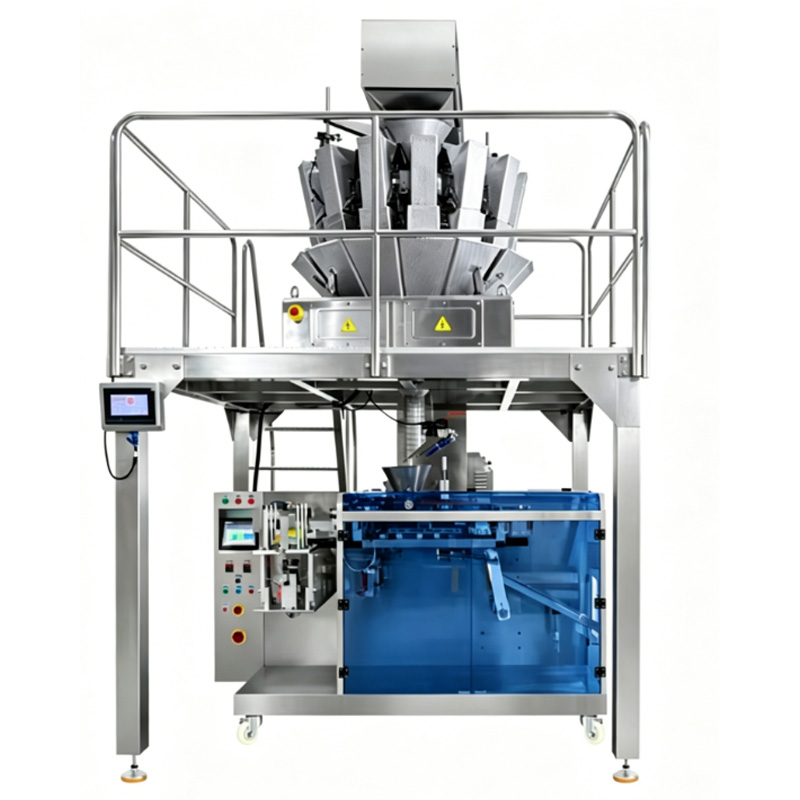

Automatic Candy Chocolate Bean Packaging Production Solution

Automatic Candy Chocolate Bean Packaging Product Introduction

This automatic candy chocolate bean packaging production solution is designed for high speed packaging of small granular products such as chocolate beans, chewing gum, candies and coated snacks. It integrates feeding, weighing, bag forming, filling, sealing and finished product output into one complete automatic packaging system.

The system is based on vertical form fill seal technology combined with multihead weigher, ensuring high speed operation, accurate weighing and stable performance. It is widely used in snack food production lines where efficiency, flexibility and consistency are critical.

Compared with traditional packaging machines, this solution improves production efficiency, reduces labor cost and ensures uniform packaging quality.



Production Process Description

The candy packaging process includes the following steps:

1. Feeding System
Products are transported to the weighing system through bucket elevator or conveyor

2. Multihead Weighing
High precision multihead weigher measures the candy or chocolate beans accurately

3. Film Forming
Packaging film is formed into bags by the vertical packaging machine

4. Filling Process
Measured products are filled into the formed bags automatically

5. Sealing Process
The bag is heat sealed to ensure secure packaging

6. Cutting and Output
Finished products are cut and discharged for collection or further processing



Technical Specifications

Machine type	Automatic candy packaging production solution
Application	Chocolate beans, chewing gum, candy, coated snacks
Packaging type	Pillow bag, gusset bag, quad seal bag
Packaging method	Vertical form fill seal (VFFS)
Weighing system	Multihead weigher
Feeding system	Bucket elevator or conveyor
Capacity	30–120 packs/min
Filling range	5–1000 g
Weighing accuracy	±0.5–1.5 g
Bag size range	Width 50–300 mm, length 80–400 mm
Film material	OPP, PET, laminated film
Sealing type	Heat sealing
Control system	PLC with touch screen
Material	SS304 food grade stainless steel
Power supply	220V / 380V / 415V
Total power	3–7 kW
Air consumption	0.4–0.7 m³/min
Air pressure	0.6–0.8 MPa
Optional functions	Nitrogen flushing, date coding, metal detector, check weigher
Integration	Compatible with snack production line

Note:
All specifications can be customized based on product characteristics, packaging format and production requirements.

Industry Applications

This candy packaging production solution is widely used in:

Chocolate bean production lines
Candy and confectionery manufacturing
Chewing gum packaging plants
Snack food processing factories
Coated food and small particle packaging

Solution Composition

This packaging production solution typically includes:

. Vertical form fill seal packaging machine

. Multihead weighing system

. Bucket elevator feeding system

. Platform for weighing equipment

. Finished product conveyor

. Optional inspection and coding system

Main features

. High speed vertical packaging system based on VFFS technology suitable for continuous and large scale candy production

. Multihead weighing system ensures accurate and consistent portion control for chocolate beans, chewing gum and small granular products

. Fully automatic process integrates feeding, weighing, bag forming, filling, sealing and output to reduce labor cost and improve efficiency

. Wide compatibility with different packaging formats including pillow bag, gusset bag and quad seal bag

. Stable heat sealing system ensures strong sealing quality and protects product freshness during storage and transportation

. SS304 food grade stainless steel construction ensures hygienic production and long service life

. Flexible configuration supports different product sizes, shapes and densities with stable weighing performance

. Intelligent PLC control system with touch screen allows easy operation, real time monitoring and quick parameter adjustment

. Energy efficient design reduces power consumption while maintaining high production capacity

. Modular system design allows integration with feeding conveyors, inspection systems and downstream packaging equipment

. Low maintenance structure with easy cleaning design suitable for food industry environments

. Suitable for small and irregular shaped products with high precision and stable packaging performance





Application Scenarios

. Chocolate bean packaging for confectionery manufacturers and food brands

. Chewing gum packaging for retail, wholesale and export markets

. Candy packaging for supermarkets, convenience stores and e commerce distribution

. Snack food packaging for chips, coated products and small packaged foods

. Nut and dried fruit packaging for food processing and export industries

. Mixed snack packaging such as candy mix and coated nut products

. High speed production lines requiring continuous and automated packaging systems

. OEM and contract manufacturing packaging lines for multiple product types

. Small granular product packaging requiring accurate weighing and stable sealing

. Automated packaging upgrades for factories replacing manual or semi automatic systems

Why Choose This Machine

. Complete packaging production solution instead of a single machine

. High speed and stable operation for continuous industrial production

. Accurate weighing system ensures consistent product quality

. Flexible configuration supports different candy and snack types

. Easy integration with upstream feeding and downstream inspection systems

With extensive experience in food processing equipment, we have successfully delivered packaging solutions to customers worldwide.

FAQ

What products can this system handle?
This system is suitable for chocolate beans, chewing gum, candy and various snack products

What is the packaging speed?
The speed typically ranges from 30 to 120 packs per minute

What type of bags are supported?
It supports pillow bags, gusset bags and quad seal bags

How does the machine ensure weighing accuracy?
It uses a multihead weigher to achieve precise and stable weighing

Can the system be customized?
Yes, the production solution can be customized based on product and capacity requirements

Is the system suitable for continuous production?
Yes, it is designed for stable and continuous operation

Can nitrogen flushing be added?
Yes, nitrogen flushing can be added to extend shelf life
