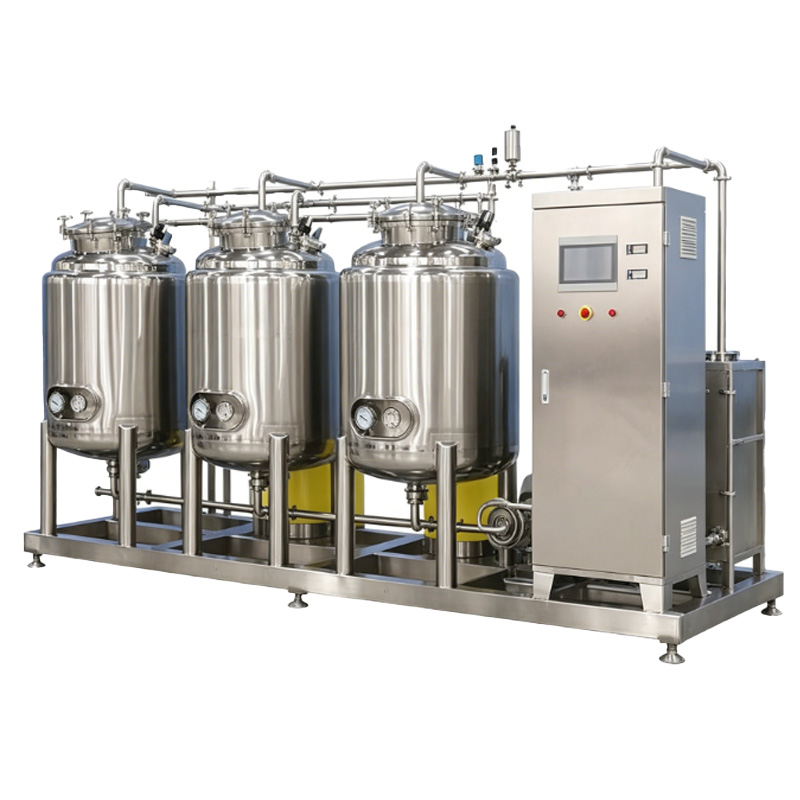

900L Automatic CIP Cleaning System for Wide Industrial Use

900L Automatic CIP Cleaning System Product Introduction

The 900L automatic CIP cleaning system provides a versatile and reliable solution for wide industrial applications. Suitable for beverage plants, juice factories, dairy production, soft drinks, and other food industries, this system automates the cleaning of tanks, pipelines, valves, and fittings. High-efficiency pumps circulate cleaning solutions such as caustic soda, acids, or sanitizers, while integrated heaters maintain precise temperatures. PLC control allows programmable cleaning sequences, monitoring of flow, pressure, and temperature, ensuring thorough cleaning, consistent hygiene, and minimal downtime. Its modular stainless steel construction allows easy installation, maintenance, and scalability for varying industrial layouts.

Working Principle：

The 900L automatic CIP cleaning system provides a versatile and reliable solution for wide industrial applications. Suitable for beverage plants, juice factories, dairy production, soft drinks, and other food industries, this system automates the cleaning of tanks, pipelines, valves, and fittings. High-efficiency pumps circulate cleaning solutions such as caustic soda, acids, or sanitizers, while integrated heaters maintain precise temperatures. PLC control allows programmable cleaning sequences, monitoring of flow, pressure, and temperature, ensuring thorough cleaning, consistent hygiene, and minimal downtime. Its modular stainless steel construction allows easy installation, maintenance, and scalability for varying industrial layouts.

Technical Specifications：

Tank capacity	900L
Material	Stainless steel 304
Cleaning flow rate	5–15 m³/h
Pump type	High-efficiency centrifugal pump
Heater type	Electric immersion heater
Max temperature	95°C
Control system	PLC with HMI interface
Power supply	AC 380V, 50/60Hz, three phase
Cleaning solution types	Caustic, acid, sanitizer
Inlet/outlet diameter	50 mm
Pressure range	0.2–0.6 MPa

Main features：

• Fully automated CIP system reduces manual labor and improves cleaning efficiency
  Automates the cleaning process for tanks, pipelines, valves, and fittings, minimizing manual intervention and labor costs.
• PLC-controlled programmable sequences with real-time flow, pressure, and temperature monitoring
  Operators can set customized cleaning cycles and monitor all parameters to ensure optimal cleaning performance.
• Integrated heaters maintain precise cleaning solution temperature for consistent sanitation
  Temperature control ensures caustic, acid, or sanitizer solutions operate at peak effectiveness, guaranteeing hygiene compliance.
• High-efficiency pumps ensure rapid circulation through tanks, pipes, and valves
  Rapid circulation reduces cleaning time and ensures uniform cleaning across all system components.
• Modular stainless steel design allows easy installation, maintenance, and scalability
  The design supports plant layout flexibility, simplifies maintenance, and allows expansion for larger production requirements.

Application Scenarios：

• Breweries for automated cleaning of fermentation, storage, and mixing tanks
  Ensures complete sanitation of tanks and pipelines in beer production, improving product quality.
• Juice factories ensuring sanitary conditions for pipelines, filling, and storage lines
  Maintains high hygiene standards across fruit juice production, reducing contamination risks.
• Dairy plants cleaning milk storage, pasteurization, and processing equipment
  Supports automated cleaning of sensitive dairy equipment to comply with food safety standards.
• Soft drink production lines maintaining high hygiene standards
  Automates tank and piping cleaning, ensuring consistent quality for carbonated and non-carbonated beverages.
• Food processing facilities including sauces, syrups, liquid foods, and concentrates
  Provides versatile cleaning for multiple products with different viscosity and chemical properties.



FAQ

Q: What cleaning solutions are compatible with this system?
A: The system works with caustic soda, acids, sanitizers, and other food-grade chemicals.

Q: Can the system clean complex pipeline networks?
A: Yes, it efficiently circulates cleaning solutions through tanks, valves, fittings, and piping.

Q: How is temperature controlled during cleaning cycles?
A: Integrated heaters maintain precise temperatures for caustic, acid, or sanitizer solutions.

Q: Is the system suitable for continuous industrial operation?
A: Yes, designed for continuous operation with minimal supervision, ideal for high-volume plants.

Q: Can this CIP system be expanded for larger facilities?
A: Yes, its modular design allows for easy scalability and integration with additional tanks or lines.
