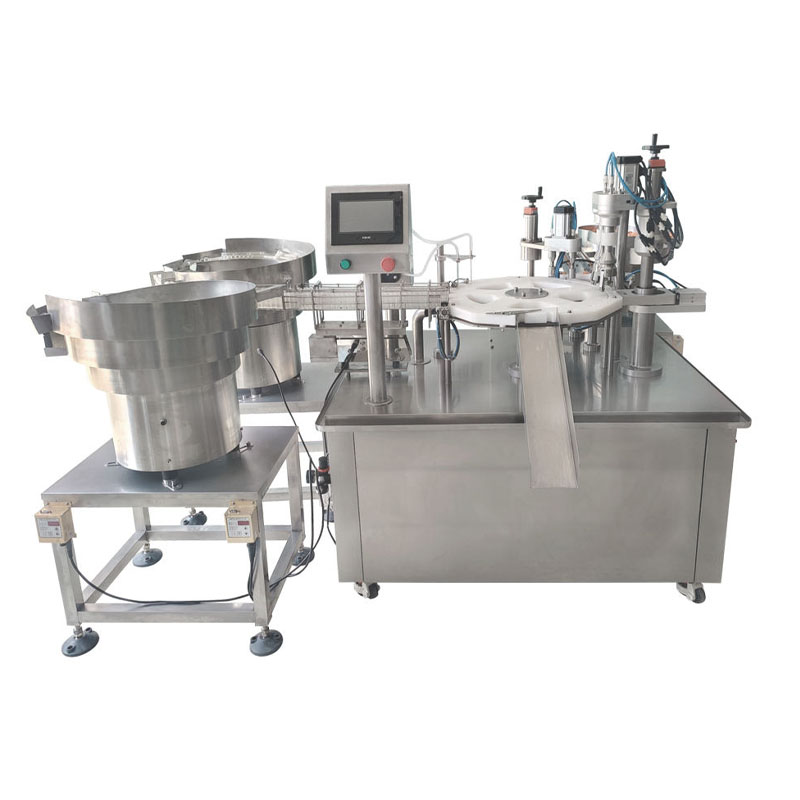

60-70 Bottles/Min Filling Capping Machine for Small Bottle Line

Product introduction of Filling Capping Machine

This filling and capping machine is an automated packaging system designed for precise liquid and colloid filling, plug placement, and sealing processes. It typically supports controlled dosing into cartridges or small containers made from plastic or composite materials. The equipment addresses challenges such as inconsistent manual filling, contamination risks, and low production efficiency. By integrating a rotary worktable, transmission mechanism, and assisted feeding system, it ensures stable operation. It is widely used by manufacturers in industries such as adhesives, sealants, chemicals, and industrial packaging requiring accurate and repeatable filling processes.

Working Principle

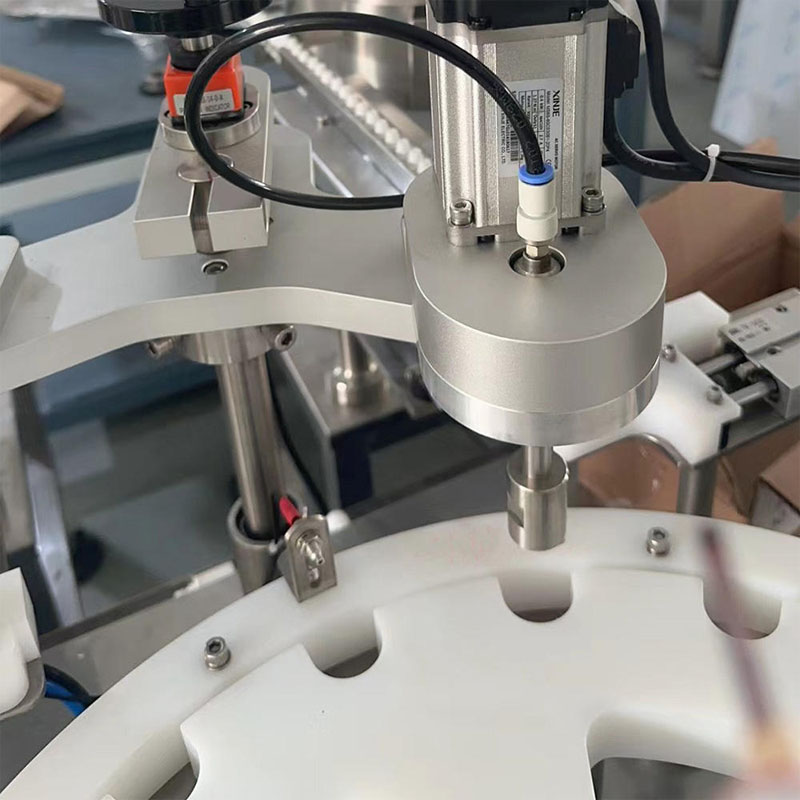

The machine operates through a coordinated mechanical and automated system. Containers are first fed into the worktable via the feeding device and positioned on the rotary turntable. As the turntable rotates, each station performs a specific function, including filling, plug insertion, and capping. The transmission device drives the synchronized movement, while the filling tube ensures precise material delivery. A mechanical suction cup assists in handling plugs, and the cylinder system provides additional feeding support. The operation panel allows parameter control, ensuring consistent and efficient automated production.

Product Parameter Table

Power	1.5 kW
Machine weight	400 kg
Filling capacity	1-10 ml
Working speed	60-70 bottles/min
Filling accuracy	≤±1%

Main Features

• The integrated rotary turntable design ensures synchronized movement of containers, improving positioning accuracy and reducing manual intervention during continuous production cycles.
• The coordinated filling and capping system enables sequential operations, minimizing material exposure and reducing the risk of contamination or spillage during processing.
• Equipped with a stable transmission device, the machine maintains consistent mechanical motion, ensuring reliable filling performance across extended production runs.

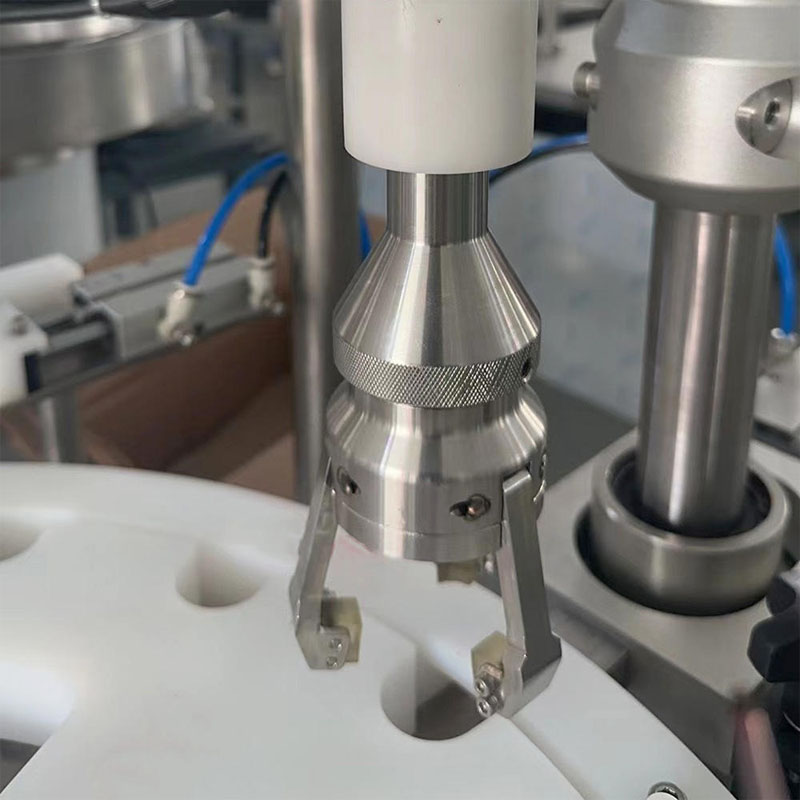

• The mechanical suction cup and stopper mechanism provide precise plug handling, ensuring consistent insertion and alignment for cartridge-based filling applications.
• The cylinder-assisted feeding device enhances automation by stabilizing material delivery, reducing operator workload and improving overall production efficiency.
• The modular structure allows easy maintenance and flexible adjustment, supporting different container sizes and various industrial liquid and adhesive applications.

Application Scenarios

• Cartridge adhesive filling for epoxy, silicone, and polyurethane sealing materials in industrial manufacturing environments
• Chemical packaging lines for controlled filling of sealants, coatings, and other viscous or semi-liquid materials
• Small-batch and continuous production of industrial cartridges requiring precise dosing and capping processes
• Assembly line applications in electronics, construction, and automotive industries for material dispensing and sealing
• Packaging of colloid-based products where contamination control and consistent output are essential for quality assurance

FAQ

Q1: What materials can this machine handle?
It is suitable for adhesives, sealants, colloids, and various industrial liquids with controlled viscosity.

Q2: Does it support different cartridge sizes?
Yes, the machine can be adjusted to accommodate different cartridge and vial specifications.

Q3: Is the filling process automated?
Yes, the system integrates feeding, filling, plugging, and capping in a semi or fully automated workflow.

Q4: How is accuracy ensured?
Precision transmission and controlled filling mechanisms ensure consistent and accurate material dosing.

Q5: Is it suitable for industrial production?
Yes, it is designed for continuous industrial use with stable operation and repeatable performance.
