6 Head Liquid Filling Machine for Juice Beverage Production

Product introduction of 6-Head Liquid Filling Machine

This 6 head liquid filling machine is an automatic multi-nozzle filling system designed for filling liquids, including aqueous solutions, essential oils, and chemical products into bottles. Constructed with high-quality stainless steel, it provides corrosion resistance and durability for long-term use. The machine addresses issues such as manual filling inconsistency, low efficiency, and material contamination. It is suitable for manufacturers in food, beverage, cosmetic, and chemical industries who require accurate, hygienic, and scalable liquid filling solutions for medium to high-volume production environments.

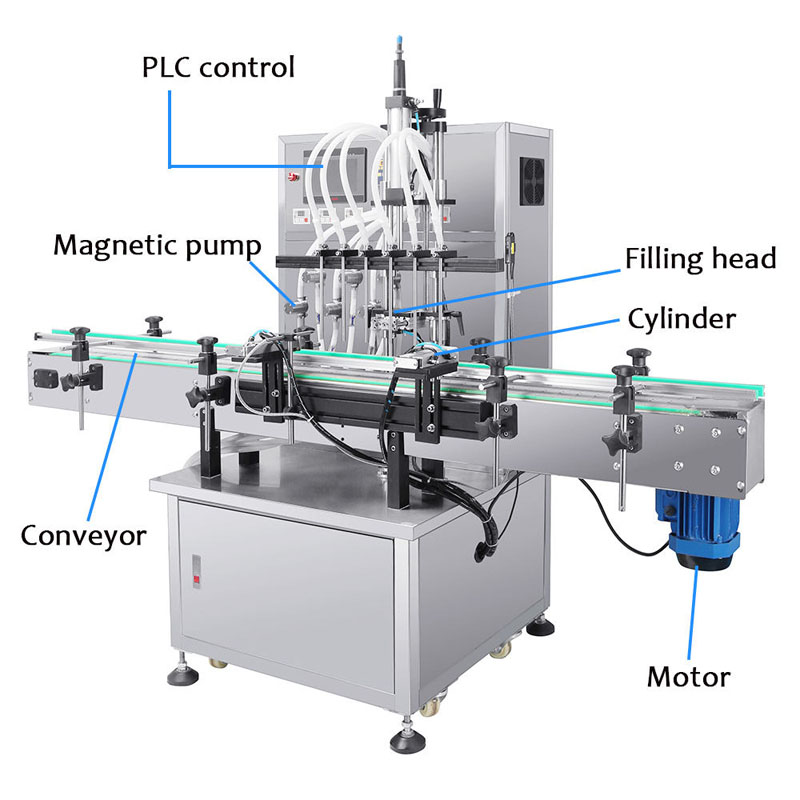

Working Principle

The machine operates by first transporting bottles onto the conveyor belt, where an electric eye sensor detects their position. Once the bottles are aligned, the system activates the six filling heads simultaneously. The magnetic pump draws liquid from the storage tank and delivers it through each nozzle into the bottles with controlled flow. The filling volume is precisely managed by the control system. After filling, the bottles are conveyed to the next process. The combination of sensors, pumps, and automated controls ensures accurate, efficient, and consistent liquid filling.

Product Parameter Table

Power	1.2 kW
Power supply	220 V,50 Hz
Filling range	5-5000 ml
Number of filling heads	6 (can be customized)
Bottle height	20-300 mm
Bottle diameter	20-120 mm
Filling accuracy	±0.5%

Main Features

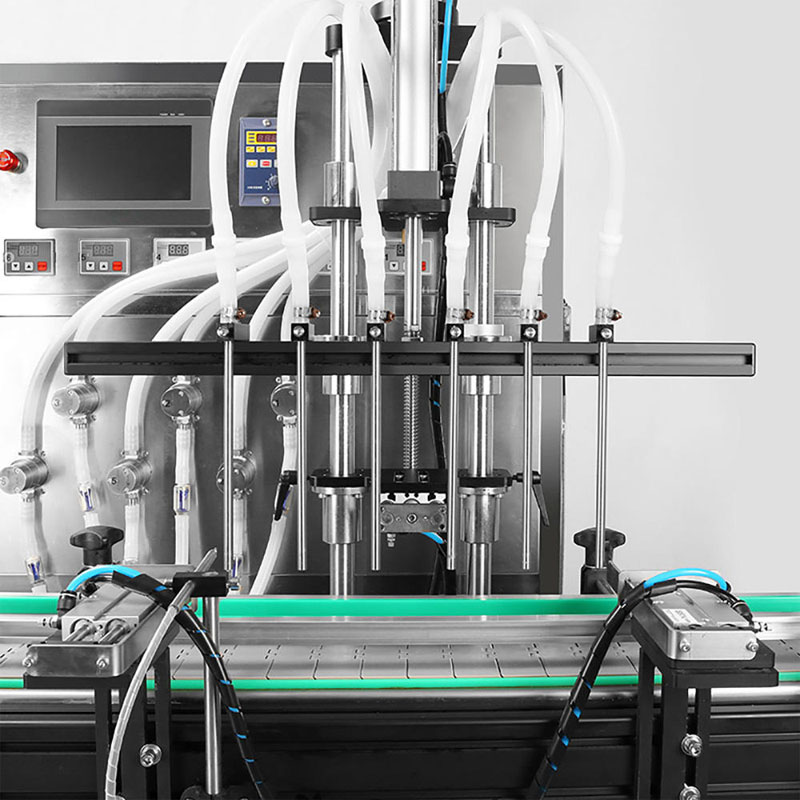

• Multi-head filling design allows six bottles to be filled simultaneously, significantly improving production efficiency and reducing overall filling time.
• Magnetic pump system made of 316 stainless steel provides strong corrosion resistance and stable performance for handling various liquid materials.
• Electric eye detection system ensures precise bottle positioning, reducing operational errors and improving consistency during automated filling processes.
• Thickened conveyor belt structure enhances durability and ensures stable transport of bottles during continuous production operations.
• High-quality materials provide resistance to corrosion, high temperature, and chemical wear, extending the service life of the equipment.
• Low vibration and noise design improves working environment while maintaining smooth and stable machine operation over long production cycles.

Application Scenarios

• Filling essential oils, fragrances, and cosmetic liquids in daily chemical production lines
• Bottling mineral water, juice, and other beverage liquids in food and beverage industries
• Filling chemical liquids such as cleaning agents, detergents, and industrial solutions
• Packaging toner, makeup remover, and skincare liquids in cosmetic manufacturing
• High-precision liquid filling in pharmaceutical and laboratory production environments

FAQ

Q1: What types of liquids can this machine handle?
It is suitable for low-viscosity liquids such as essential oils, water, beverages, and certain chemical solutions.

Q2: How does the 6-head system improve efficiency?
The six filling heads operate simultaneously, allowing multiple bottles to be filled at the same time and reducing production time.

Q3: Is the machine resistant to corrosion?
Yes, it is made with 316 stainless steel and high-quality materials, offering excellent corrosion resistance.

Q4: Can the machine handle different bottle types?
Yes, it can be adjusted to accommodate various bottle sizes and shapes depending on production needs.

Q5: Is it suitable for automated production lines?
Yes, it integrates well into automated production lines with conveyor systems and sensor-based controls.
