500LPH RO Water Purification System for Drinking Water
This 500LPH RO water purification system is designed to produce clean and safe drinking water by removing bacteria, viruses, heavy metals, and dissolved impurities. Equipped with multi-stage pre-filtration and high-precision RO membranes (0.0001 micron), it ensures stable water quality and efficient operation. Ideal for homes, restaurants, and small commercial facilities, it delivers fresh, purified water with reliable performance and easy maintenance.
Compare

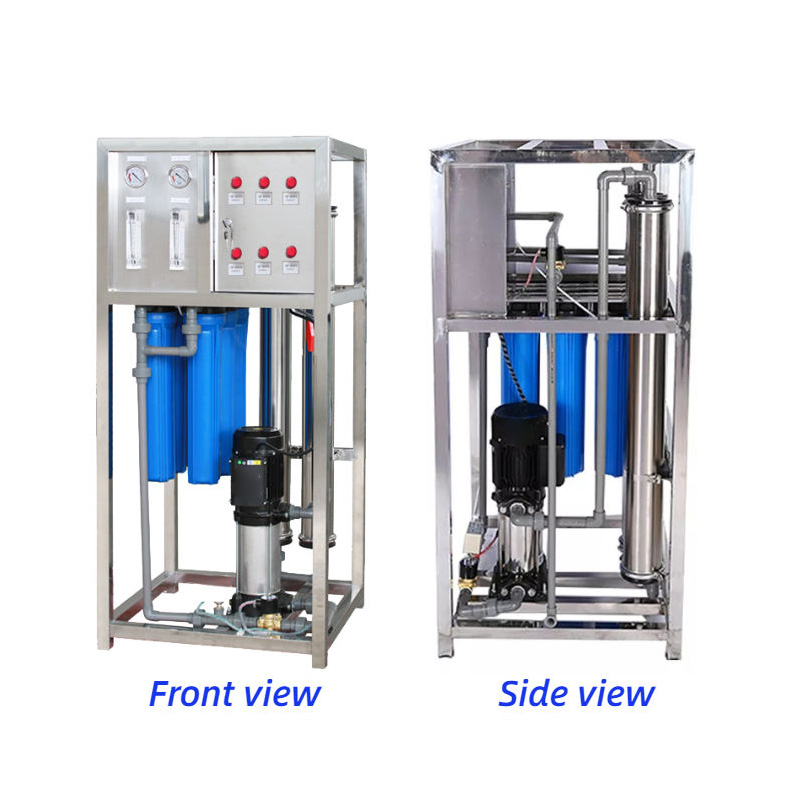

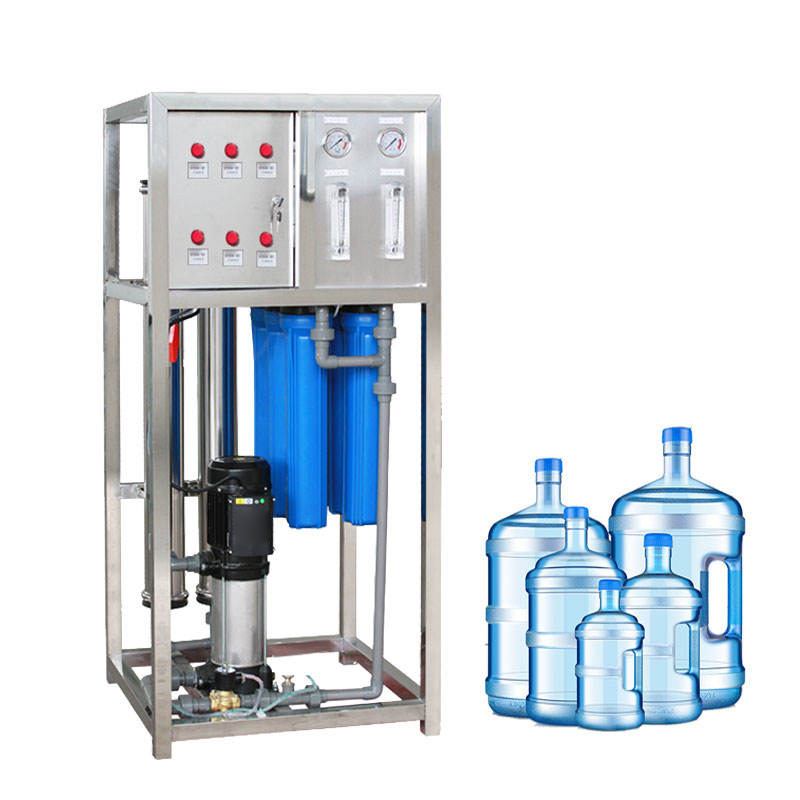

Product Introduction for 500LPH RO Water Purification System
The 500LPH reverse osmosis (RO) water purification system is designed for drinking water treatment in residential and small commercial applications. With a production capacity of 500 liters per hour, it effectively removes impurities such as bacteria, viruses, heavy metals, and dissolved solids from raw water.
This system provides a reliable purification process through multi-stage filtration and membrane separation, ensuring stable and safe water quality. It is suitable for homes, restaurants, offices, and small-scale facilities requiring clean drinking water. The system offers consistent performance and supports continuous water supply for daily consumption and light commercial use.
Technical Specifications：
| Item | Parameter |
|---|---|
| Product Name | 500L Water Treatment Unit |
| Production Capacity / Flow Rate | 500 liters/hour (0.5 T/H) |
| Power Supply | 220V/380V 50Hz |
| Operating Pressure | 0.1–0.4 MPa |
| High-pressure Pump | 1.1 kW |
| Core Components | Pump, PLC |
| PP Filter (5μm) | 20 inches × 2 pcs |
| UDF Filter | 20 inches × 2 pcs |
| CTO Filter | 20 inches × 2 pcs |
| Reverse Osmosis Membrane | Vontron Membrane |
| Membrane Housing | SS304 |
| Disinfection Device | UV or Ozone |
| Function | Pure Water |
| Features | Reverse Osmosis Water Filtration |
| Weight | 140 kg |
| Dimensions | 70×150 cm |
| Application | Factory / Outdoor / Garage / Commercial |

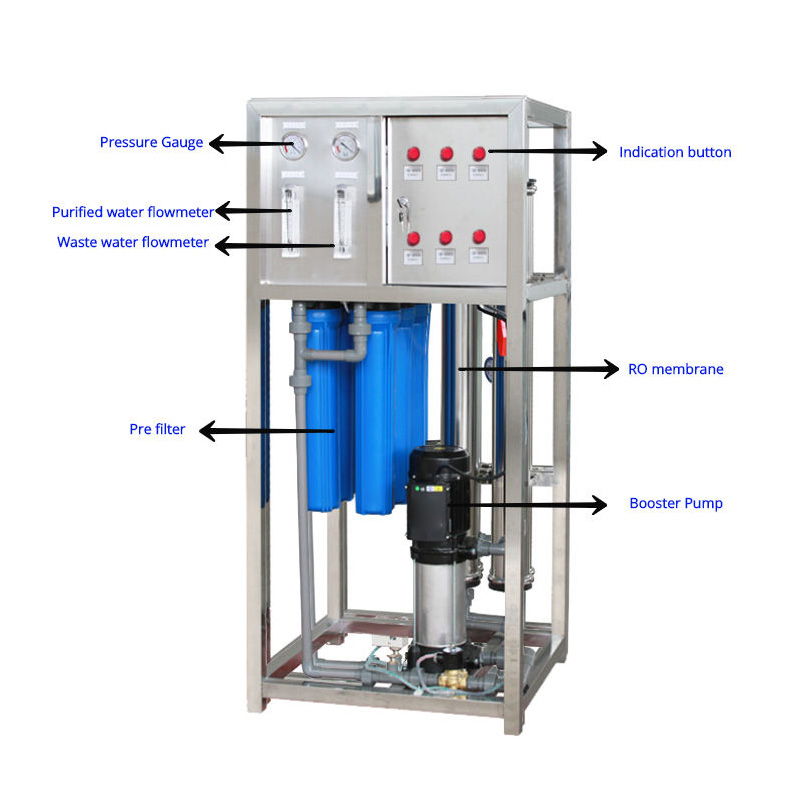

Main features：
• High-precision RO membrane with 0.0001 micron filtration effectively removes bacteria, viruses, and dissolved impurities

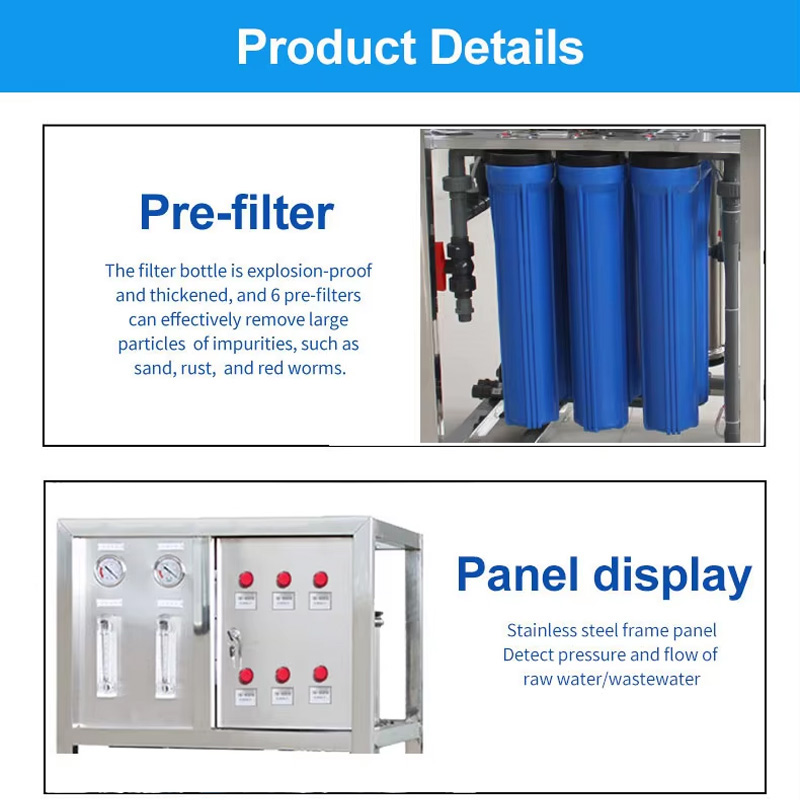

• Multi-stage pre-filtration system removes sand, rust, and large particles to protect the RO membrane
• Stainless steel frame structure ensures durability, corrosion resistance, and hygienic operation
• Intelligent control panel monitors pressure and flow for stable and safe system performance

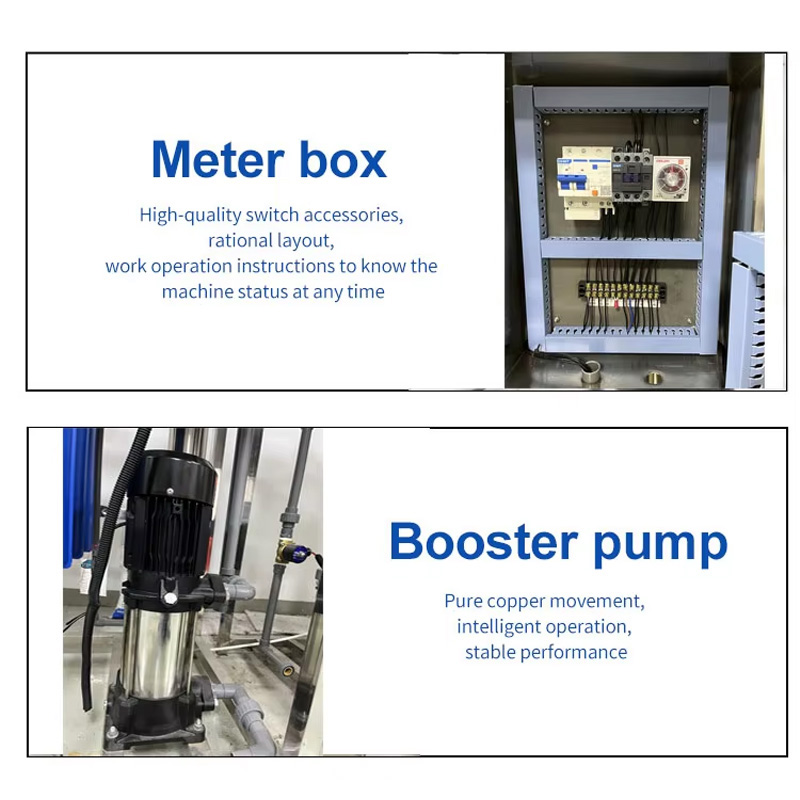

• High-quality booster pump with copper motor provides stable pressure and reliable operation
Working principle：
The system first uses multiple pre-filters to remove large particles such as sand, rust, and suspended solids from raw water. Activated carbon filters further reduce chlorine, odors, and organic contaminants.
The water is then pressurized by a booster pump and passes through the RO membrane with a filtration accuracy of 0.0001 microns. Dissolved salts, bacteria, viruses, and heavy metals are rejected, while purified water is collected for use. The system continuously monitors pressure and flow to ensure stable and efficient operation.
Application scenarios：
• Household drinking water purification systems for safe daily water consumption
• Restaurants, cafes, and food service facilities requiring clean water supply
• Small commercial water purification applications in offices and retail spaces
• Drinking water systems for schools, dormitories, and public facilities
• Bottled drinking water preparation for small-scale production
FAQ
A: Its capacity is 500 liters per hour.
A: Yes, it is designed for both home and commercial use.
A: Yes, it can provide clean and safe drinking water.
A: Yes, it supports fully automatic operation.
A: It uses stainless steel and food-grade materials.
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
Related products
-
Reverse Osmosis (RO) Systems

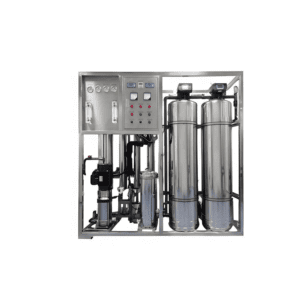

Industrial Fully Automatic Water Purifier For Water Purification
The industrial fully automatic water purifier is equipped with a complete water purification process, forming a closed loop from raw water input to finished water output. The process is as follows: raw water → raw water pump → mechanical filter (quartz sand filter) → activated carbon filter → antiscalant addition → precision filter → RO high-pressure pump → RO reverse osmosis membrane element → finished water, with multiple layers of purification to ensure the water quality meets standards.
SKU: n/a -
Reverse Osmosis (RO) Systems
4000kg Seawater Desalination Equipment For Factories
The operating parameters of the seawater desalination equipment are precisely controllable, with an operating pressure stable at 0.2~0.3 Mpa. The desalination rate can reach 95~99%, efficiently retaining 95%~99% of the dissolved salts in seawater, while also blocking chemical ions, bacteria, fungi, viruses, and other pollutants, allowing only water molecules and solvents smaller than 0.0001 microns to pass through, producing water that meets purity standards.
SKU: n/a -
Reverse Osmosis (RO) Systems

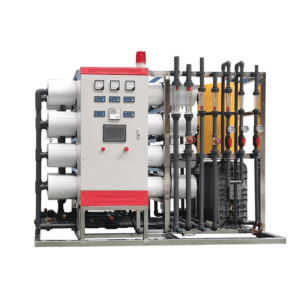

1500kg Seawater To Freshwater Purification Machine
