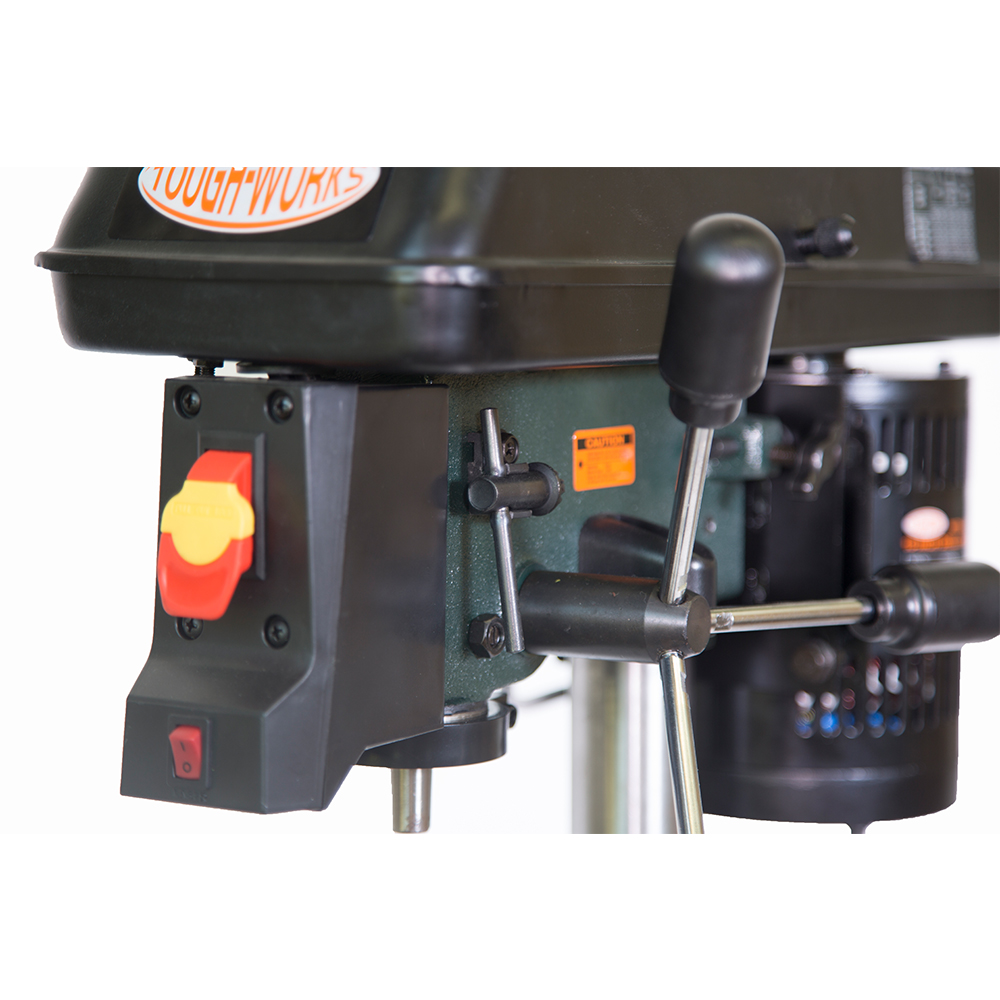

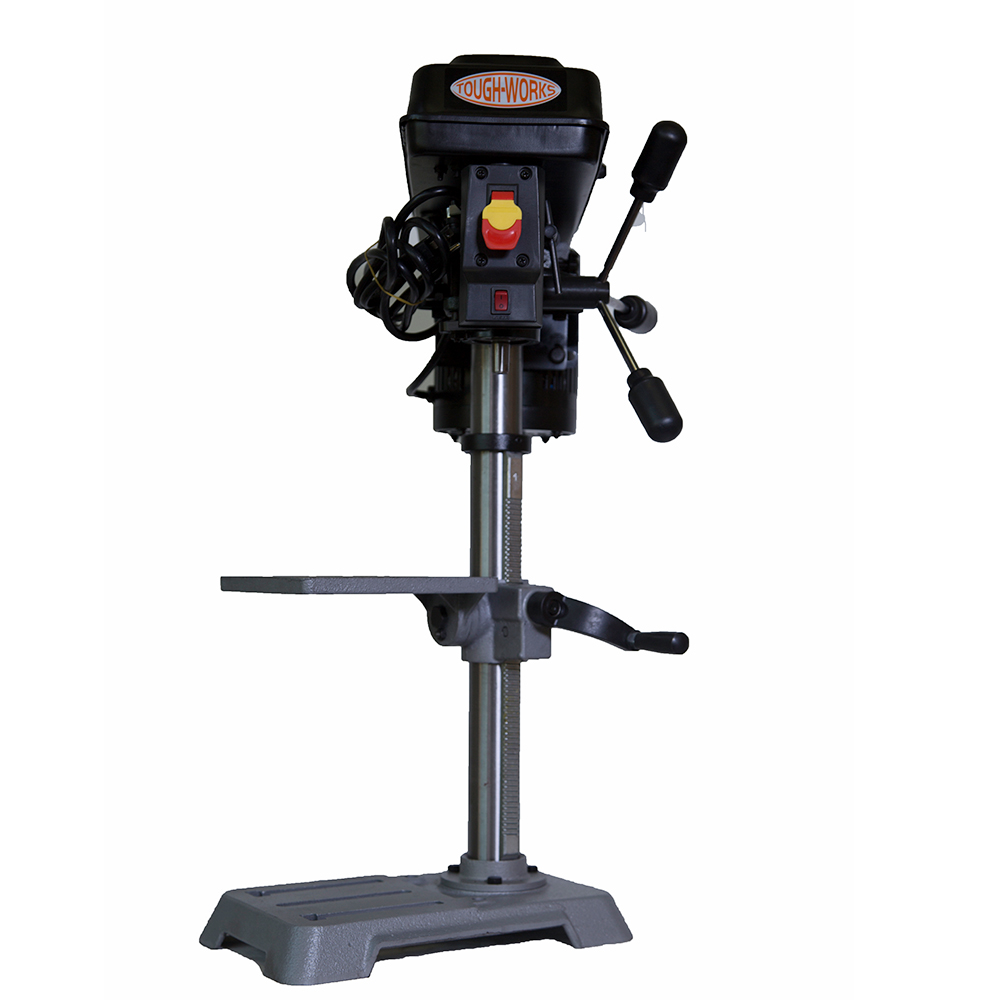

5 speed 10″ Bench Drill press with LED 120V (CSA listed)
1. 120V, 60Hz, 3.2Amp, 5 speed: 620~2800 RPM.
2. Table Size: 7-41/64 × 6-1/2.
3. Base Size: 10-5/8 × 7-3/32.
4. Spindle Travel: 1-31/32″.
5. Max. Drill Capacity: 5/8″ (16 mm).
$99.00
Compare
Product Information
Technical Details
| Item | Drill Press |
| Product Diemension (Inch) | 7-1/2 × 22-29/32 × 11 |
| Horse Power (HP) | 1/3 |
| Amperage (Amps) | 3.2 |

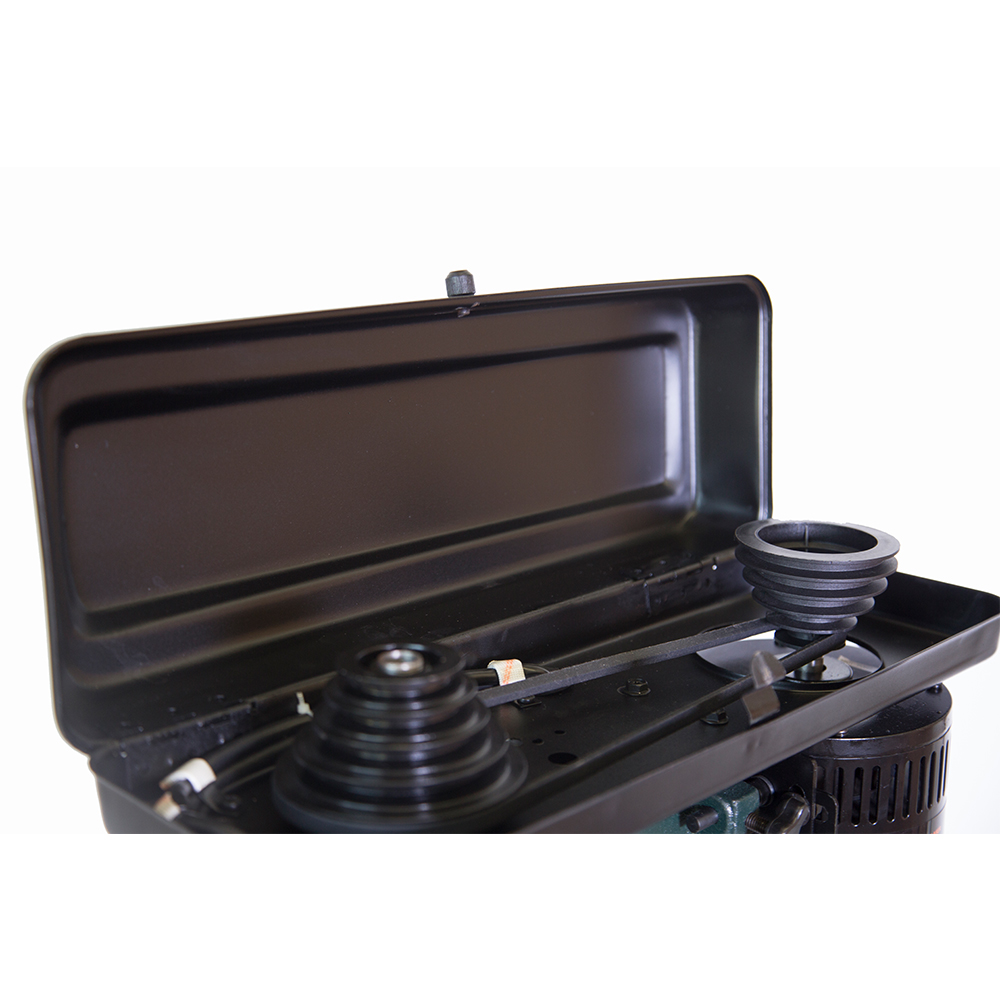

| Drive Type | Belt |
| Swing (Inch) | 10″ |
| Spindle Taper | JT33 |
| Chuck Included | Yes |
| Chuck Capacity (Inch) | 1/2 |
| Laser Light | Yes |
| Spindle Travel | 1-31/32 |
| Base Size (Inch) | 10-5/8 × 7-3/32 |

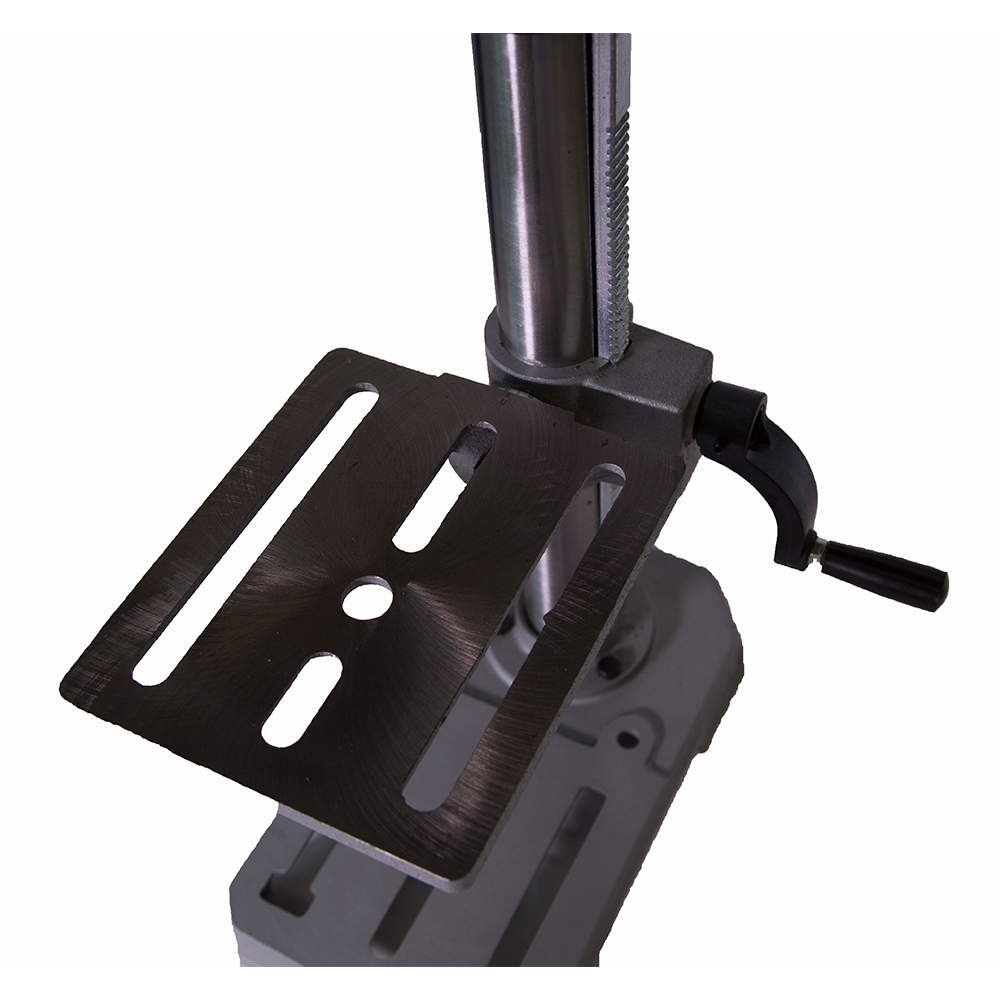

| Table Size (Inch) | 7-41/64 × 6-1/2 |
| Drill Capacity (Inch) | 5/8 |
| Number of T-slots | N/A |
| Table Slot Size (Inch) | N/A |
| Column Diameter (Inch) | 5/8 |
| Tilting Angle | ’-45~+45 |
| Max Spindle to Base (Inch) | 7-43/64 |
| Spindle to Table (Inch) | 8-15/32 |
| Spindle Speed (RPM) | 620~2800 |
| Number of Speeds | 5 |
| Product Weight (lb.) | 31.96 |
| Voltage | 120V, 60Hz |
| Illumination | N/A |
| Standards | CSA Listed |
