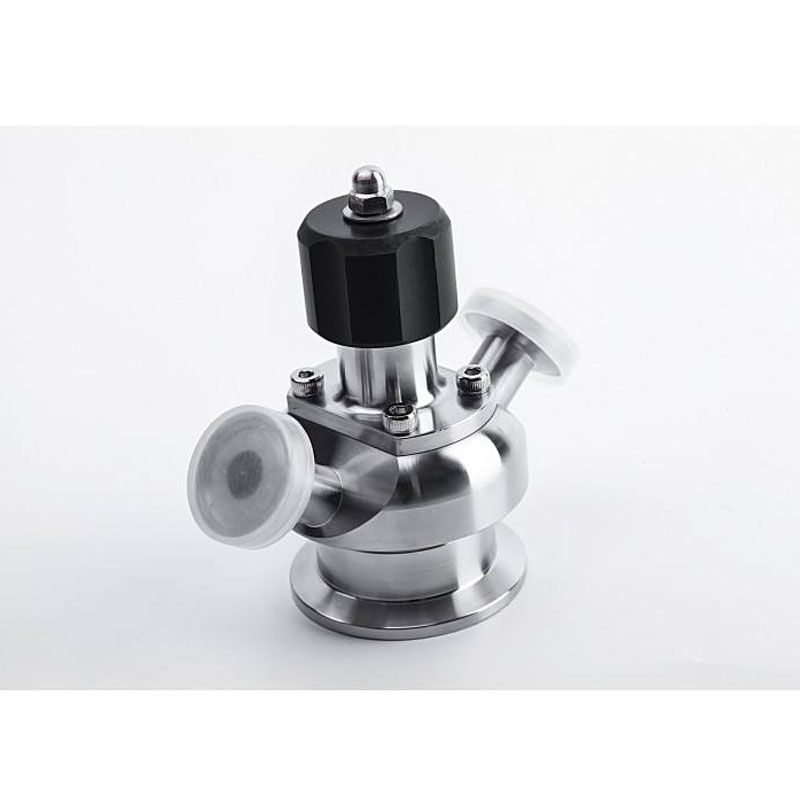

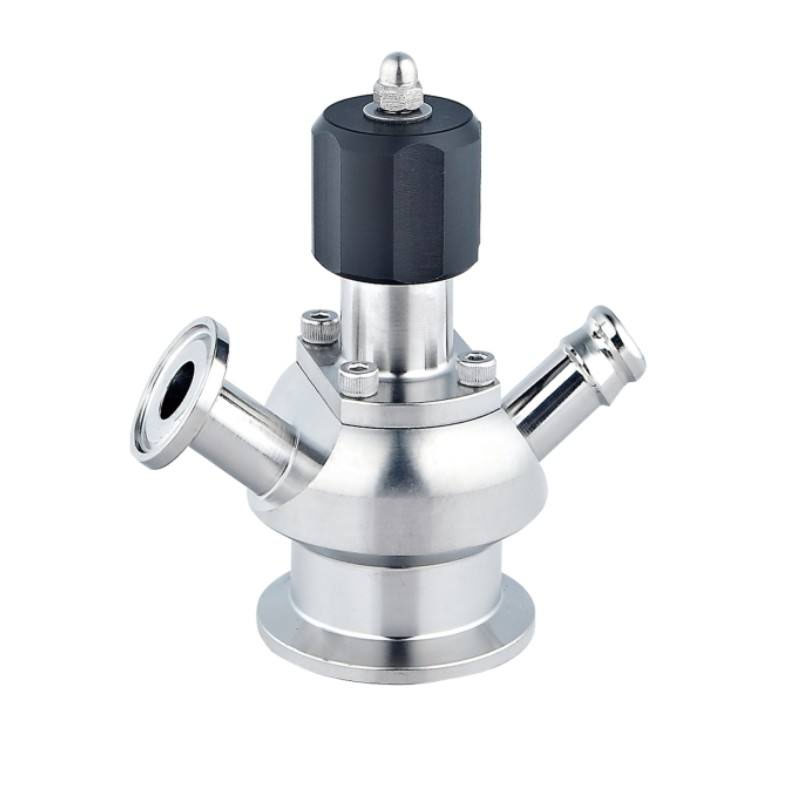

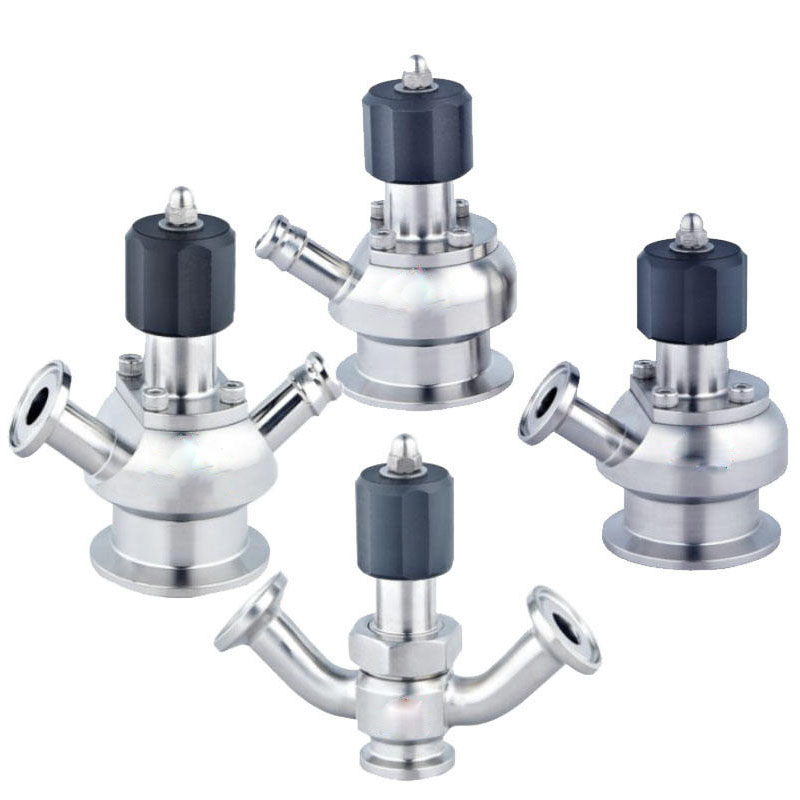

316 Stainless Steel Sanitary Sampling Valve for Milk and Beer
This SS316 stainless steel aseptic sampling valve is designed for hygienic and contamination-free sampling in food, dairy, beverage, and fermentation processes. Featuring a no dead-corner structure and an internal taper design, it ensures complete liquid discharge with zero residue. The one-piece valve body construction eliminates cracks and improves sanitation, making it ideal for strict quality control and aseptic processing environments.
Compare
Product parameters of Sanitary Sampling Valve
| Size | DN6-DN40 |
| Body Material | SS 316L / 304 (CF8M / CF8) |
| Seal Material | PTFE or Others |
| Pressure | 1.0 MPA(10 Bar /PN 10) |
| Temperature | – 30 ºC ~ 150 ºC (PTFE normal temperature type) |
| Operation | Manual /Pneumatic |
| Available Standard | ASME BPE /3A /DIN /ISO /IDF,SMS etc. |
| Certification | 3A-54-02/1580, PED97/23 EC, FDA177.2600 |
Main features of Sanitary Sampling Valve
-
Aseptic, contamination-free design
Ensures clean and hygienic sampling for dairy, beverage, fermentation, and food processing applications. -
No dead-corner structure
The internal flow path is optimized to eliminate stagnant areas, preventing bacterial growth and ensuring safer sampling. -
Internal taper for complete discharge
The tapered interior allows full liquid drainage after sampling, leaving no residue and improving sanitation. -
One-piece valve body construction
The valve body and connection are made from a single solid piece, avoiding cracks and weak points that could trap contaminants. -
High-grade 316L stainless steel
Excellent corrosion resistance and durability, suitable for sanitary and CIP/SIP environments. -
Easy operation and cleaning
Smooth internal surfaces support quick rinsing and efficient maintenance. -
Widely applicable
Ideal for milk, beer, wine, beverages, fermentation tanks, laboratory sampling, and other hygienic processing lines.
Contact us to get your quotation now.
Related products
-
Accessories & Supplies, Sanitary Valves
Stainless steel 2 inch tri clamp clover ball valve two way weldless for sanitary home brew flow tube fitting
Accessories & Supplies, Sanitary ValvesStainless steel 2 inch tri clamp clover ball valve two way weldless for sanitary home brew flow tube fitting
The O.D. of the tube is 2″.
The tri-clamp O.D. is 2-1/2 inches on both ends, connecting to another 2-1/2″ tri-clamp with silicone gaskets and single pins.
INSTALL: Tri clamp connecting, weldless and convenient.
Maximum working pressure 1.6 Mpa.
Working Temperature: -100 to +660 degrees
Application: Industrial, Heating, Hydraulic, Dry/Liquid, Food Processing, Home brew, Steam, Vacuum, Water/Oil/Gas, etc.SKU: n/a -
Sanitary Valves
1.5 Inch Tri Clamp Sanitary Butterfly Valve with Pull Handle Stainless Steel 304 Tri Clamp Clover (1.5″ Tri Clamp Butterfly Valve)
Sanitary Valves1.5 Inch Tri Clamp Sanitary Butterfly Valve with Pull Handle Stainless Steel 304 Tri Clamp Clover (1.5″ Tri Clamp Butterfly Valve)
The 304 stainless steel of the sanitary butterfly valve makes the valve with high toughness and high hardness. Besides, our butterfly valve has passed the 100% pressure hydraulic reliability test, with a rubber ring inside to ensure the sealing, so the liquid is not easy to leak.
The rotary handle of the stainless butterfly valve can meet the needs of locking three different valves positions. Different valves positions have different flow rates. You only need to turn the handle. The nylon sleeve on the handle can reduce friction and make the rotation more smooth.
SKU: n/a -
Sanitary Valves

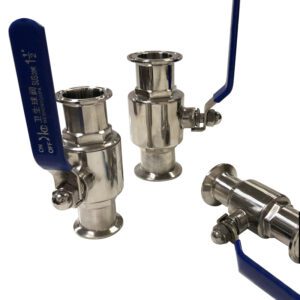

Straight-through stainless steel 304/316L quick-loading ball valve
