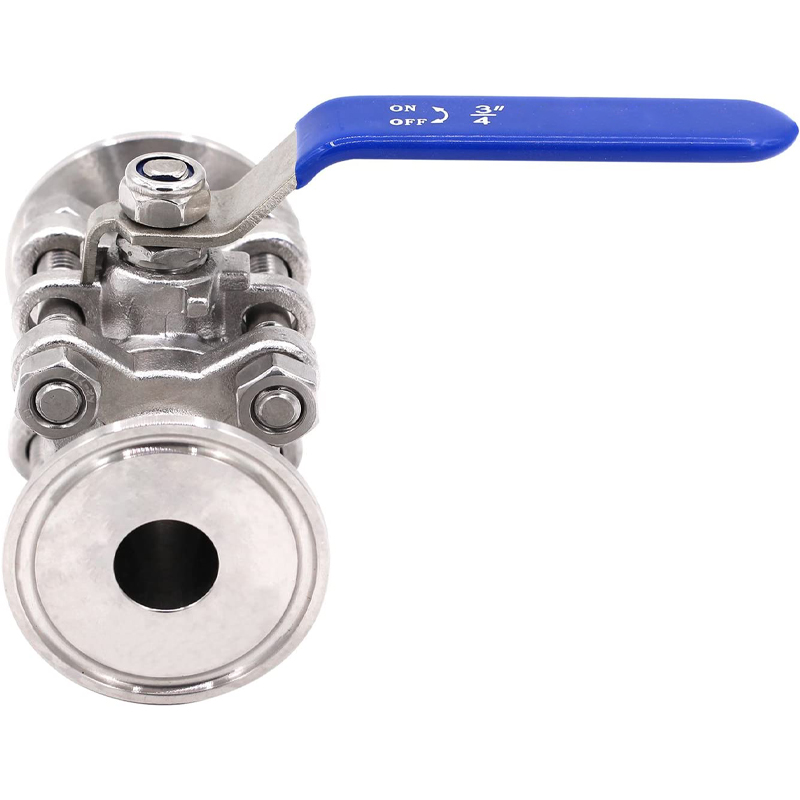

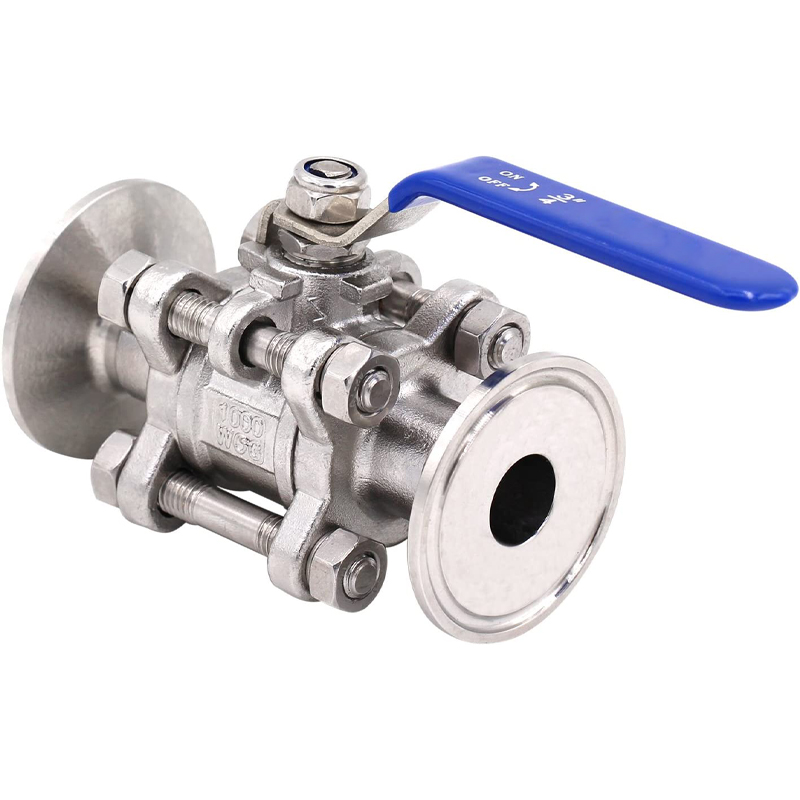

3/4″ Sanitary Ball Valve Fits 1.5″ Tri-Clamp Clover Stainless Steel 304, PTFE Lined , Two Way & Three Piece (3/4 Inch Tube OD Quick Clamp)
【 Sanitary Ball Valve Material and Function 】Sanitary Ball Valve is made of FOOD GRADE LEVEL MATERIAL stainless steel 304 which have high strength and great corrosion resistance
【 Sanitary Ball Valve Advantage 】Quick clamp connection for disassembling and cleaning in place
【 Great Design 】Non-Retention Sanitary Ball: 2-Way & 3-Piece Contruction, Lockable oval handle for manual on/off control
$25.99 – $80.99
CompareThe Sanitary Ball Valves series stainless steel 304 three-piece inline sanitary ball valve offers excellent corrosion resistance for most applications. Stainless steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali’s and acids, biodiesel, fuels and alcohols.
This tri clamp ball valve has a lockable lever handle for manual on/off control. PTFE seats reduce the risk of leakage. The valve is full port for reduced friction
Its inner diameter is the same as the inner diameter of the connecting pipe for maximum operating efficiency. This valve has tube OD quick clamp connections for disassembling and cleaning in place. The maximum pressure rating is 1000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and the maximum working temperature is 300 degrees Fahrenheit.
| Item Weight | 1.98 pounds |
|---|---|
| Package Dimensions | 7.13 x 4.65 x 3.7 inches |
| Item model number | DERNORD-319 |
| Is Discontinued By Manufacturer | No |
| Size | 3/4 Inch Tube OD Quick Clamp |
| Material | Stainless Steel |
| Item Package Quantity | 1 |
| Measurement System | Inch |
| Batteries Included? | No |
| Batteries Required? | No |
| Size | 1 Inch Tube OD Quick Clamp, 1/2 Inch Tube OD Quick Clamp, 1.25 Inch Tube OD Quick Clamp, 1.5 Inch Tube OD Quick Clamp, 2 Inch Tube OD Quick Clamp, 3/4 Inch Tube OD Quick Clamp |
|---|
Based on 0 reviews
Be the first to review “3/4″ Sanitary Ball Valve Fits 1.5″ Tri-Clamp Clover Stainless Steel 304, PTFE Lined , Two Way & Three Piece (3/4 Inch Tube OD Quick Clamp)”
Related products
-
Sanitary Valves

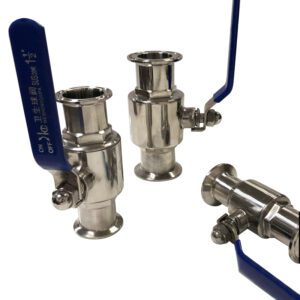

Straight-through stainless steel 304/316L quick-loading ball valve
