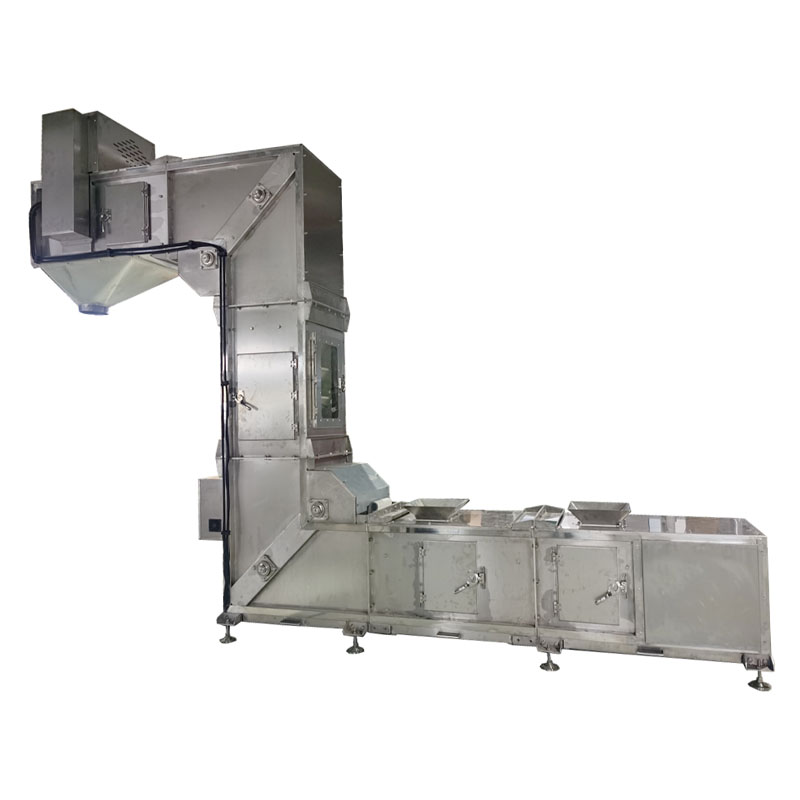

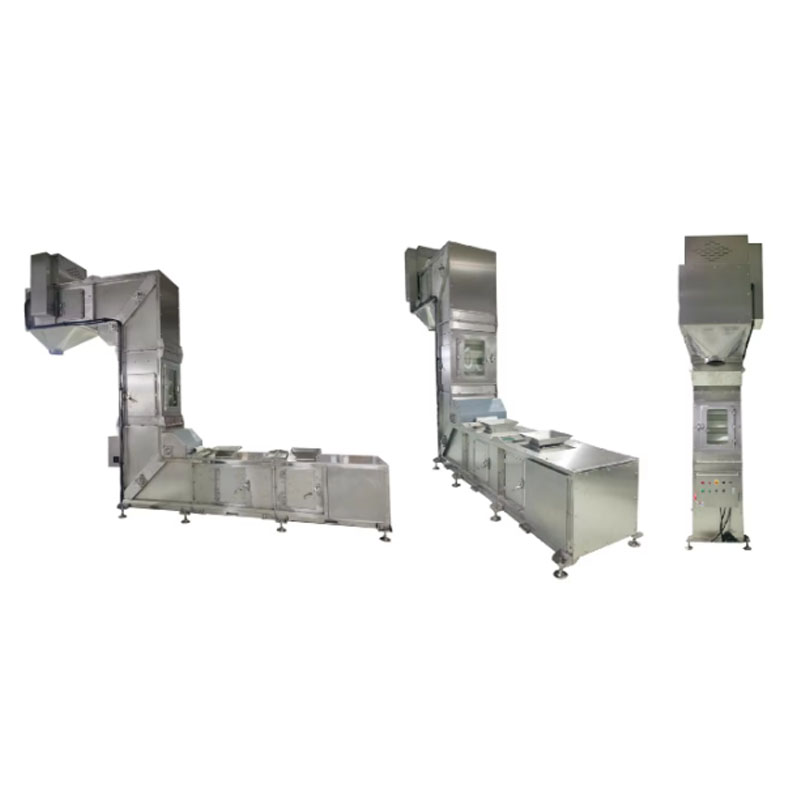

20–30 m³/h Rubber Chain Bucket Elevator for Food Grade Use

Rubber Chain Bucket Elevator Product Introduction

The Rubber Chain Bucket Elevator is a modern vertical conveying system engineered to transport powders, granules, and bulk materials efficiently in industrial production lines. Featuring a durable rubber chain drive and removable buckets, the system ensures smooth and stable material movement with minimal noise and vibration. Its hygienic design eliminates the need for lubricants, making it suitable for food-grade and contamination-sensitive applications.

The equipment supports continuous conveying in harsh, dusty environments while maintaining reliable capacity and precise bucket positioning. It is widely used in food processing, chemicals, building materials, recycling, plastics, and advanced industries such as lithium battery and semiconductor material production.

Working Principle

The Rubber Chain Bucket Elevator uses a continuous rubber chain drive to move a series of buckets vertically inside an enclosed casing. Materials are loaded into the buckets at the inlet and transported upward as the chain rotates. At the discharge point, centrifugal or gravity action releases the materials into the next processing stage. The rubber chain ensures smooth movement without metal contact, reducing noise, vibration, and wear while maintaining accurate bucket positioning.

Product Parameter Table

Voltage	220/380 V,50/60 Hz
Power	1.75 kW
Dimension(L×W×H)	Custom size
Machine frame	304 stainless steel
Chain material	Rubber
Gear material	Nylon
Bucket material	Food grade plastic
Bucket volume	6.7 L
Capacity	20-30 m³/h

Main Features

• Rubber chain drive system ensures quiet, vibration-free conveying without lubricant contamination.

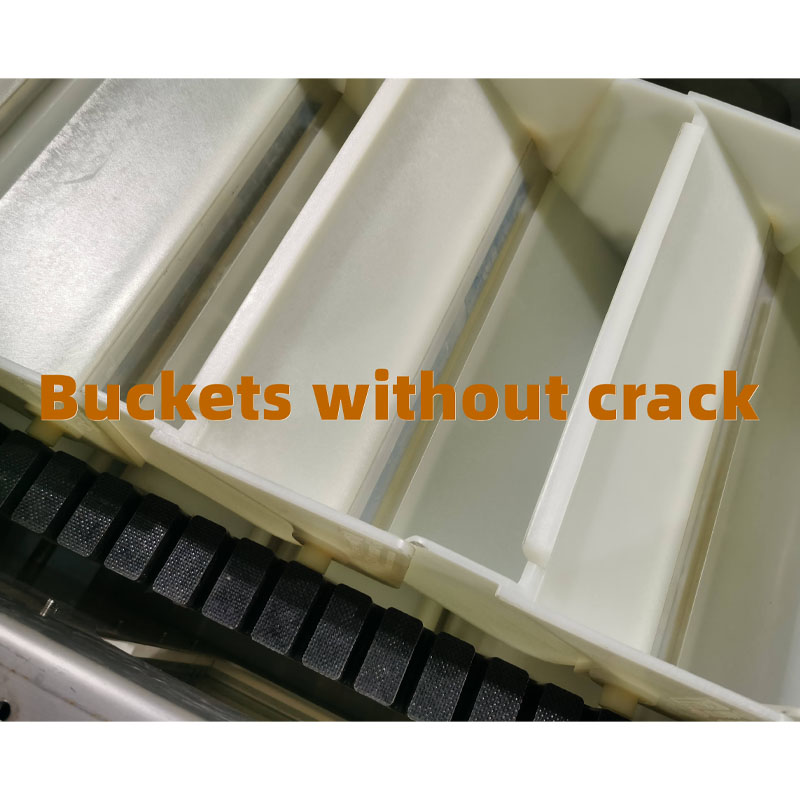

• Tool-free removable buckets allow fast cleaning and easy maintenance in hygienic environments.

• Abrasion-resistant design handles dusty, abrasive, and high-wear bulk materials reliably.

• Stable conveying performance maintains accurate bucket positioning and consistent material flow.

• Dust-tight and hygienic structure suitable for food processing and sensitive production lines.

• Custom configuration options including multiple discharge points and different capacity requirements.

Application Scenarios

• Food processing: conveying powders, grains, snacks, and food ingredients hygienically.

• Chemical industry: transporting granules, additives, and industrial powders.

• Building materials: handling abrasive materials such as mineral powder and ceramics.

• Recycling and plastics: conveying plastic pellets and recycled materials.

• Advanced industries: suitable for lithium battery materials, semiconductor powders, and non-ferrous metal granules.

FAQ

Q1: What materials can the rubber chain bucket elevator handle?
A: It can convey powders, granules, chemicals, plastics, grains, and abrasive bulk materials.

Q2: Why use a rubber chain instead of a metal chain?
A: Rubber chains operate quietly, require no lubrication, and reduce contamination risks in food or hygienic applications.

Q3: Can the buckets be removed for cleaning?
A: Yes, the buckets feature a tool-free design for fast removal and external cleaning.

Q4: Is the system suitable for dusty environments?
A: Yes, dust-tight versions are available and designed for harsh industrial environments.

Q5: Can the elevator be customized?
A: Yes, custom sizes, multiple discharge points, and specialized configurations can be designed.
