2 inch 3 inch 4 inch 8inchwater liquid flow measurement turbine flow meter

Add to wishlist
Compare

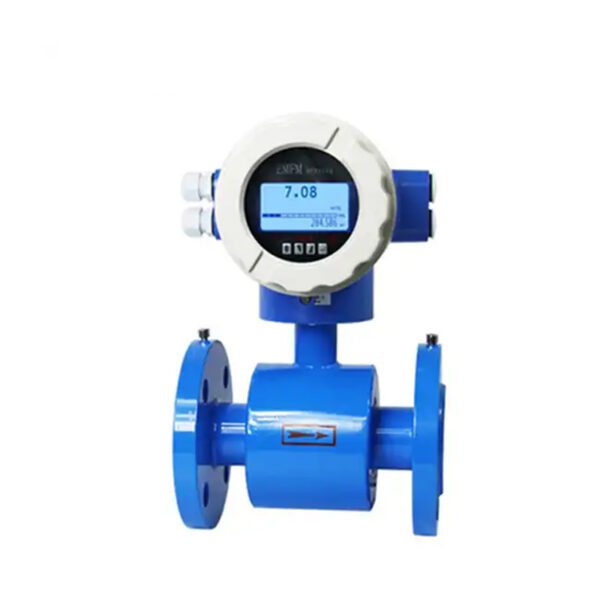

Intelligent electromagnetic flowmeter consists of two parts, the sensor and converter. It is based on the work of Faraday’s law of electromagnetic induction, used to measure the conductivity is greater than 5μS / cm conductive liquid volumetric flow rate, is a measure of the volume flow of conductive medium for induction meter.

$699.00

Compare
Conductivity Range The measured fluid condutivity≥5μs/cm
Load Resistance 0 ~ 10mA 0 ~ 1.5KΩ
Current Output 4 ~ 20mA 0 ~ 750KΩ
Digital Frequency Output Transistor output frequency limit can be set with optical isolation within 1~5000Hz bidirectional open-collector output. External power supply is turned ≤35V maximum collector current of 250mA
Power Supply AC 220V Or DC 24V
Length Of Straight Pipe Requirements Up Stream≥5DN, Down Stream≥2DN
Connection are used between the meter and piping flange connection, flange dimensions shall comply with the provisions of GB11988
Explosion Levels Exd II BT4
Protection Class IP65, Special Order up to IP68
Ambient Temperature -25℃ ~ +60℃
Relative Humidity 5% ~ 95%
Total Power Consumption Less Than 20W
