2 In 1 Printing And Scanning Mall Restaurant Payment Thermal Printer NFC Reader 1D 2D Barcode Scanner

Add to wishlist
Compare

Easy to install paper
70mm/s high-speed precision printing
Jagged ticket outlet design,easy to tear off tickets
Using high-speed Seiko thermal printing head,the handwriting is clearer,the printing speed is increased by 16.5%,and the ticketing is faster.

$50.00

Compare

1D 2D Barcode Scanner Thermal Printer Specification:

Print Configuration
Weight 65g
Size 200*82*50mm

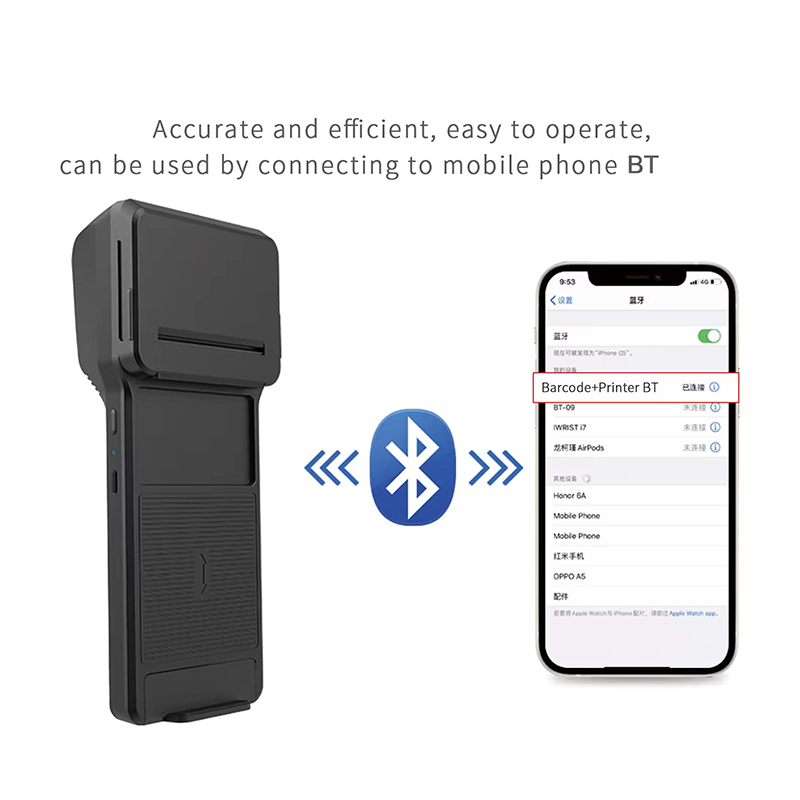

Transmission module BT
Print page Thermal paper
Paper size 57*40mm
1D barcode CORD39, CORD128A/B/C, EAN13
2D barcode image
Charging voltage 5V
Material ABS
Working voltage DC 7.4V, 3.0A
Reading mode Manual mode,
Interface support USB
Scanning parameters
Sensor 640*480 CMOS
Lighting white led
Focus red led
Scan angle 1 +/- 30 degrees
Print contrast ≥25%
Oblique viewing angle 2+/-55°
Scanning accuracy ≥5mil/0.1mm(PCS90%,CODE39)
Oblique viewing angle 3+/-60°
Working voltage DC 3.3V
Working currency 150mA
Standby currency 70mA
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Relative humidity 20% to 95% (non-condensing state)
High and low temperature test 30 minutes for high Temp., 30 minutes for low Temp.,
Decode Capacity All 1D 2D Bar code and Screen Code
Scanning range Invoices
Application Supermarket, Warehouse, Store, Logistics
Transmission Distance 30m indoor, 150m outdoor
Battery DC 7.4V, 3000mA
