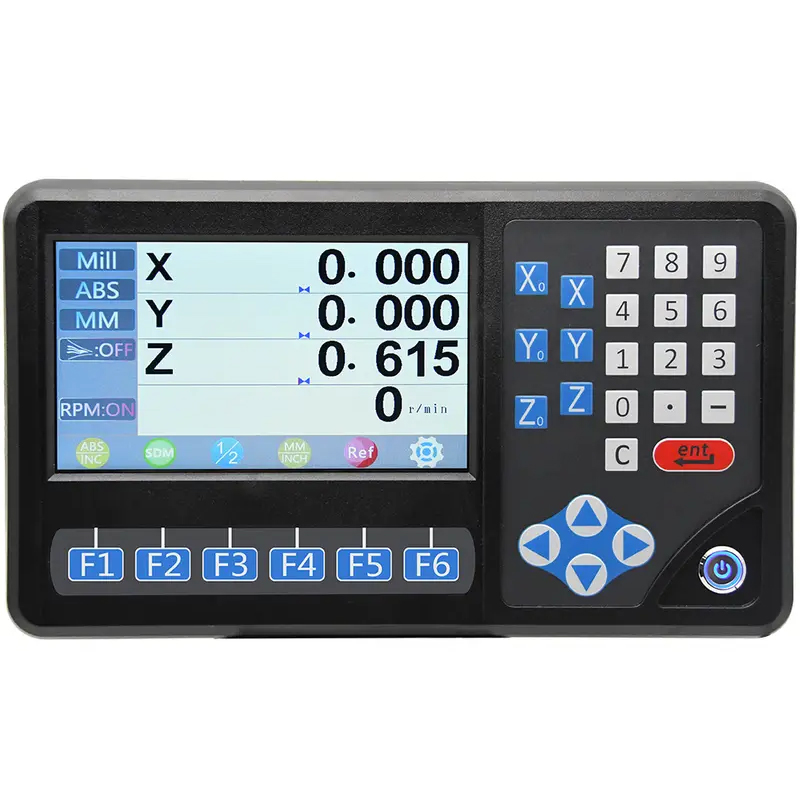

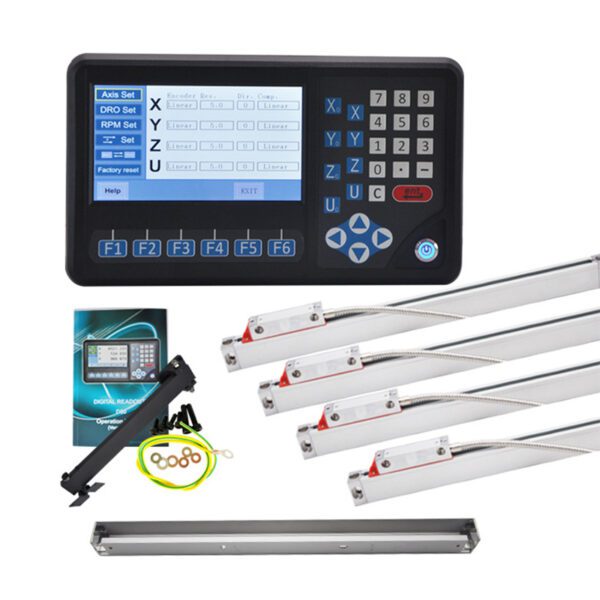

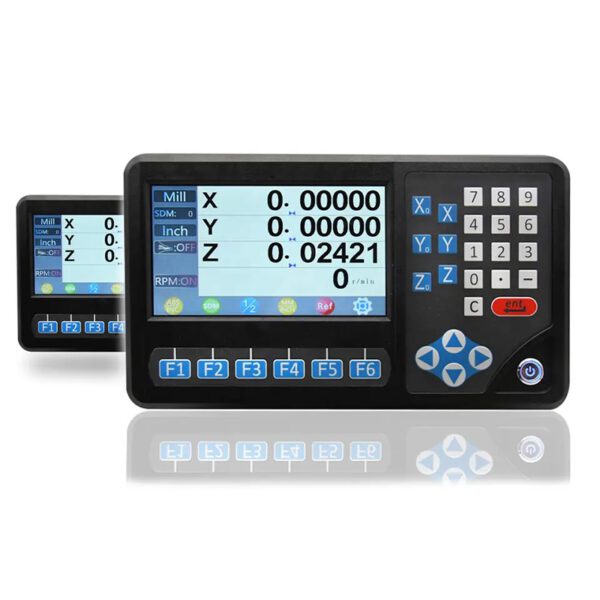

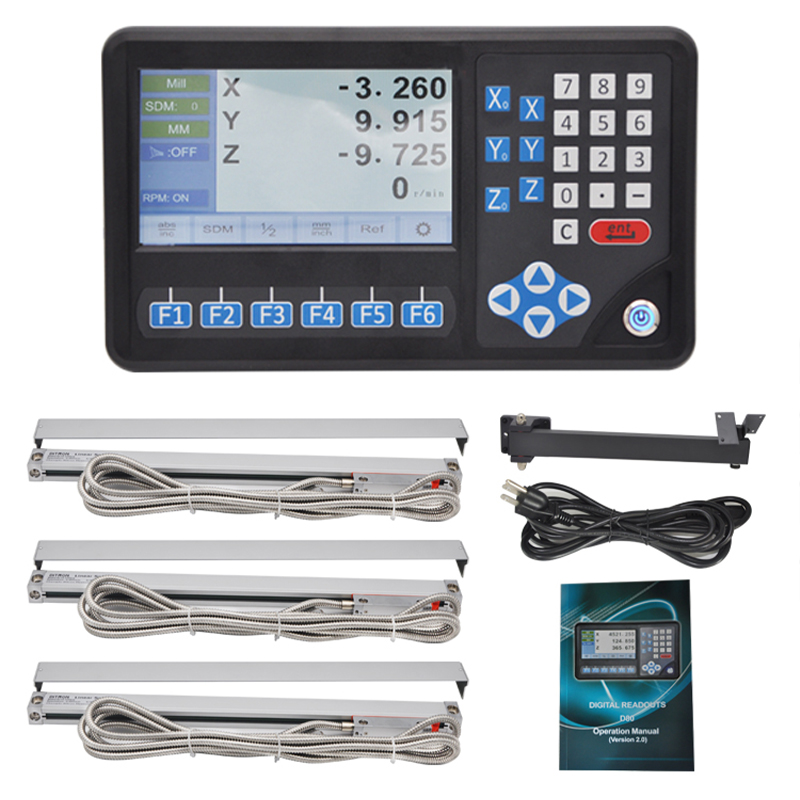

2/3/4/5 Axis DRO Digital Readout Display System with 5μm/1μm Linear Glass Scale Encoder for Mill Milling Lathe Machine

Digital Readout Parameters

Product Feature

• 7″ super LCD screen, easy to recognize
• Up to 5 axis input to work for high precision tool machining.
• More than 10 drawings for different tools can be selected to make the machining much more convenient.
• Special previewing the drawing function,after setting well the parameter ,the Dro will display the machined well effect which makes the operating be ,ore visual
• Custom setting for the shortcut keys,operate can set the shortcut keys according to his operating habit

Basic Functions

1. Zeroing, Data Recovery
2. lnput Coordinate
3. Display in Metric British Units
4. Power Off Memory Function
5. ABS/INC Coordinate
6. Ref Ruler Storage Function
7. Encoder Selection
8. Resolution Setting
9. Linear Compensation
10. Counting Direction Selection
11. 200 sets of SDM Coordinate
12. Non-linear Compensation
13. Calculator
14. 1/2 Function
15. Sleeping Function

Special Functions

1. PLD Function
2. PCD Function
3. Simple R Function
4. Smooth R Function
5. Bevel Machining Function
6. Rectangle Chambering Function
7. Preview Drawing
8. Tool Location Display
9. Tool offsets
10. Preview Function
11. 200 sets of Tools
12. Radius/Diameter Conversion
13. Y+Z Function (special for 3 axis lathes) Digital Filtering Taper Measuring Function
