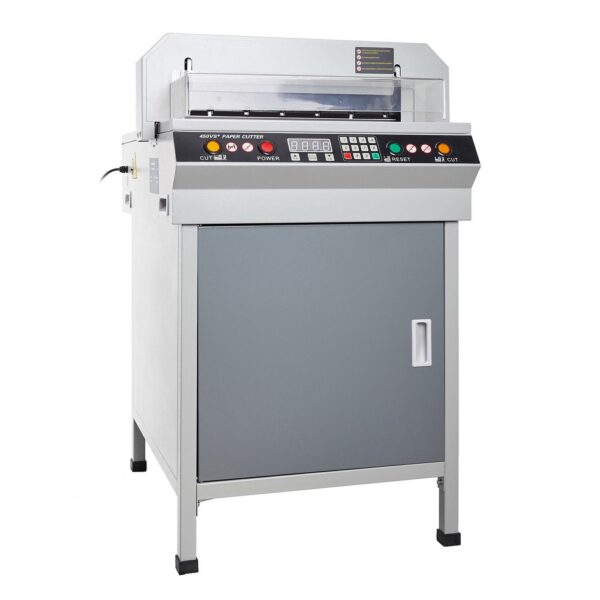

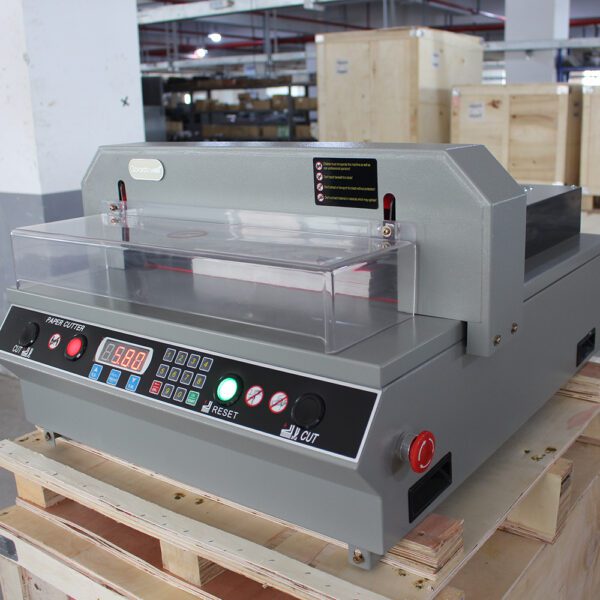

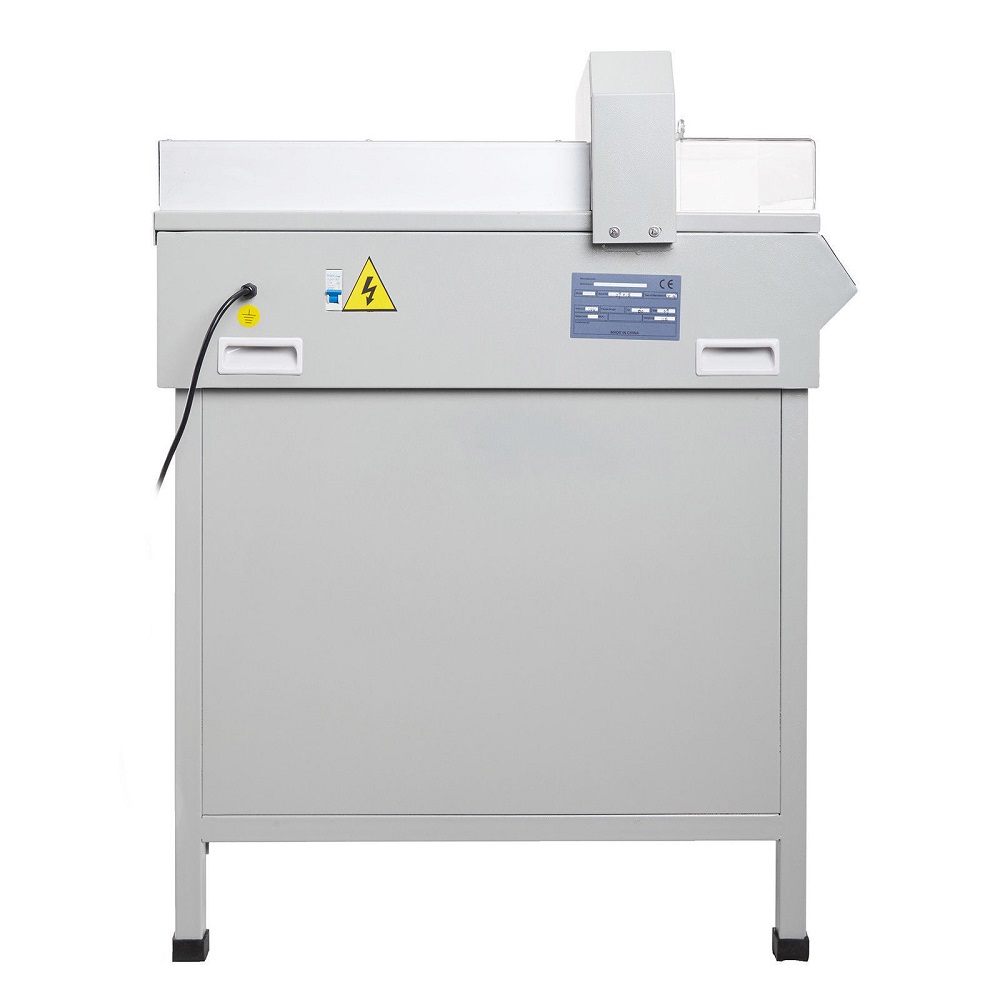

17-3/4″ Automatic Electric Paper Cutter

1. Paper cutter ISO9001 certification, high quality products

2. Electric paper cutter quality assurance — overall cast body

3. Automatic cutting machine automatic paper clamping and cutting

4. Front and rear protection cover and safety system, double guarantee operation safety

5. Use high quality cutting blade, sharp blade, can cut thickness of 1-9/16″

6. Guillotine optical cutting line, easy to operate, cutting accuracy up to 0.5mm

7. Guillotine safety protection structure conforms to international standards



Widely used

Electric paper cutters are mainly used for cutting paper in order before a lot of document binding finished. They are extensively applied in modern digital quick print, school offices, libraries, national official business institutions, small and medium-sized printing shops, etc.

This fully automatic electric cutter offers precise cutting with an electro-mechanical blade drive, automatic paper pushing and automatic paper clamping. For safety, the machine is equipped with front safety shield and double hand operation system.


1.Front protective cover     2.Infrared Grating    3/4.Paper Cutting Key   5.Power   6.Digital keys   7.LCD        8.Cabinet   9.Safety lock
10.Air Switch    11.Power    12.Button: Fast forward  13.Button: Proofread    14.Button: Fast reverse




Ⅰ.Double switch design

Emergency Stop Switch

Safer operation, can be

closed at any time

Air switch

Short circuit automatically

cut off, protect the main board


Ⅱ.High quality steel knife

sharp steel knife
Diagonal cutting is smoother and fits more paper

Ⅲ.Safety protection

Photoelectric sensor system
Automatically stop cutting when abnormal detection occurs

Operating steps

Plug in(110V)


Open air switch


Open the abrupt stop switch


Put in the cutting material


Enter the cutting size


Cover the front guard


Two handed CUT keyboard


Cutting completed



Product Information

Technical Details
Max. Cutting Width

17-3/4″ (450 mm)

Max. Cutting Height

1-9/16″ (40 mm)

Max. Cutting Depth

17-3/4″ (450 mm)

Narrow Cut

2″ (50 mm)

Cutting Accuracy

± 0.5 mm

Length In Front Of Blade

7-7/8″ (200 mm)

Cutting Speed


Cutting Style


Clamping Style


Back Gauge Adjustment


Digital Display



AC110V ±10%


60 Hz


0.8 kw

Additional Information

Packaging Method

Wooden Crate

Machine Dimension

 30″ L × 26-1/2″ W × 40-1/8″ H

(760 mm × 670 mm × 1,020 mm)

Machine Weight

231 lbs (105 kg)

Package Dimension

34″ L × 30″ W × 26″ H

(860 mm × 760 mm × 660 mm)

Package Weight

286 lbs (130 kg)

Product packaging

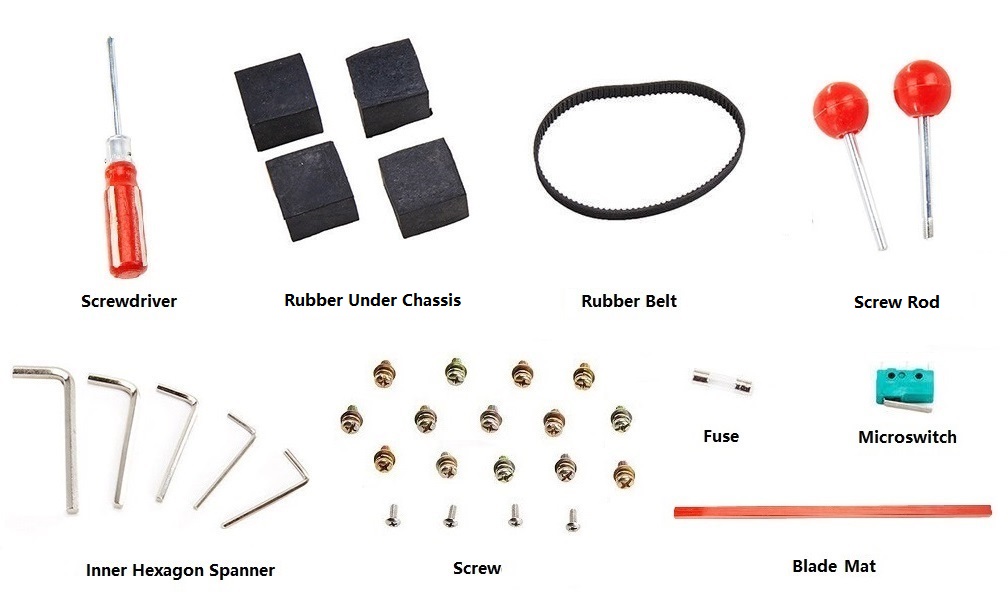

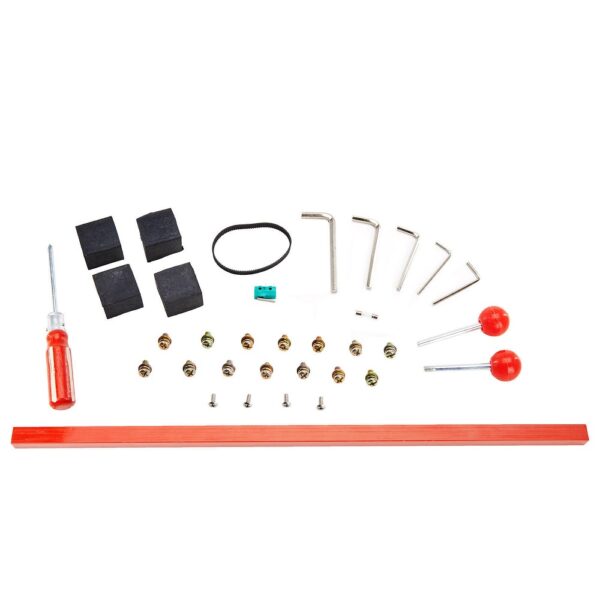

Package Included:

1. Paper Cutting Machine × 1
2. Machine Chassis × 1
3. Screw Rod × 2
4. Screwdriver × 1
5. Blade Mat × 1
6. Rubber Under Chassis × 4
7. Operation Manual × 1
8. Internal Hexagonal Wrench × 5
9. Fuse × 1

10. Rubber Belt × 1

11. Microswitch × 1

12. Screws
