15mm Indexable Carbide Inserts for H7354, Cutterhead 15 x 15 x 2.5mm 4″ R – 10 Pack

Add to wishlist
Compare

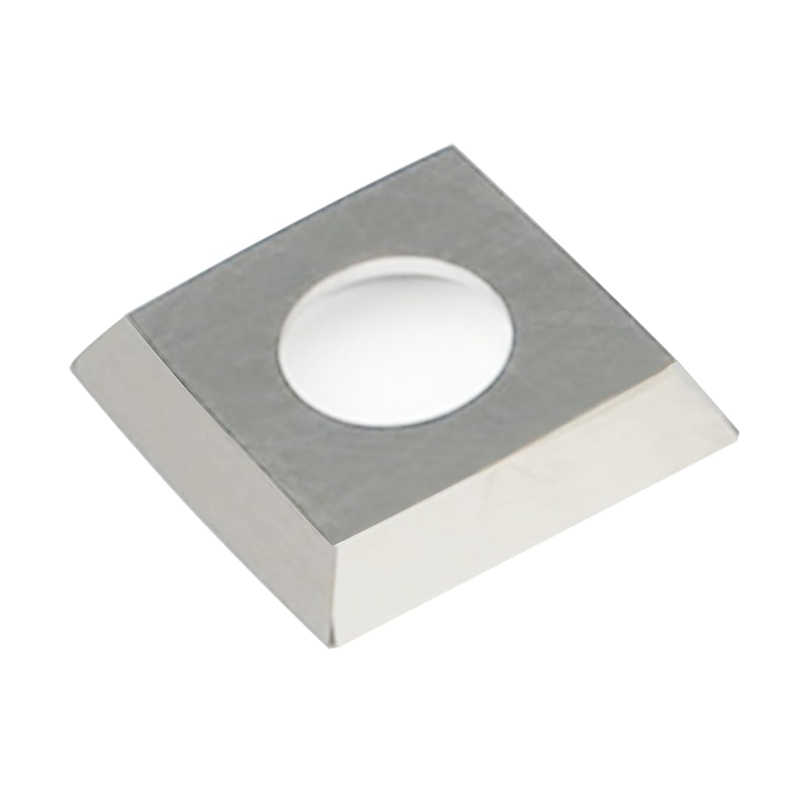

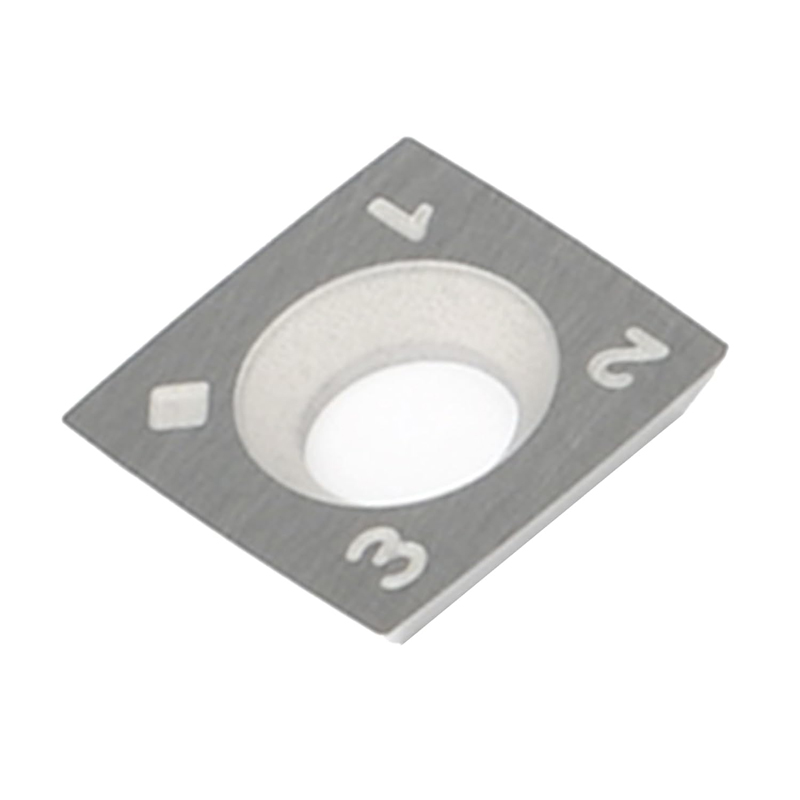

  • Indexable solid carbide inserts measures 15 x 15 x 2.5mm 4-edge radius 100mm. 4 cutting edges
  • When replacing or rotating inserts, the seat should be as clean as possible. This will prevent breakage of inserts and ensure proper insert alignment. To properly align the insert, press the insert away from the seat while tightening to approximately 55 inch pounds torque. This allows the countersink in the tip and the taper of the head on the flathead screw to slide the tip into its proper position.

$41.00

Compare
  • 15x15x2.5mm 4″ R (R100) carbide insert compatible with Grizzly Byrd H7764 H7765 H7768 H7769 H8803 H8803 H9218 H9291 Shelix Cutterhead and all of Byrd Tool SHELIX heads
  • Replacement for Grizzly H7354 Shelix Indexable Carbide Inserts
  • These replacement carbide inserts are specifically designed to for fit all DeWalt, Delta, Shop Fox, JET and Powermatic jointers and planers that utilize for the Byrd Shelix cutterhead.
  • Indexable solid carbide inserts measures 15 x 15 x 2.5mm 4-edge radius 100mm. 4 cutting edges
  • When replacing or rotating inserts, the seat should be as clean as possible. This will prevent breakage of inserts and ensure proper insert alignment. To properly align the insert, press the insert away from the seat while tightening to approximately 55 inch pounds torque. This allows the countersink in the tip and the taper of the head on the flathead screw to slide the tip into its proper position.

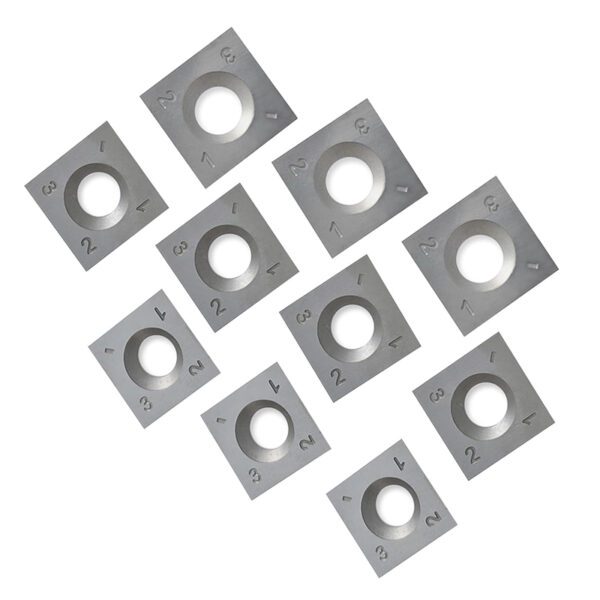

  • Plastic Case Includes 10 knives.
