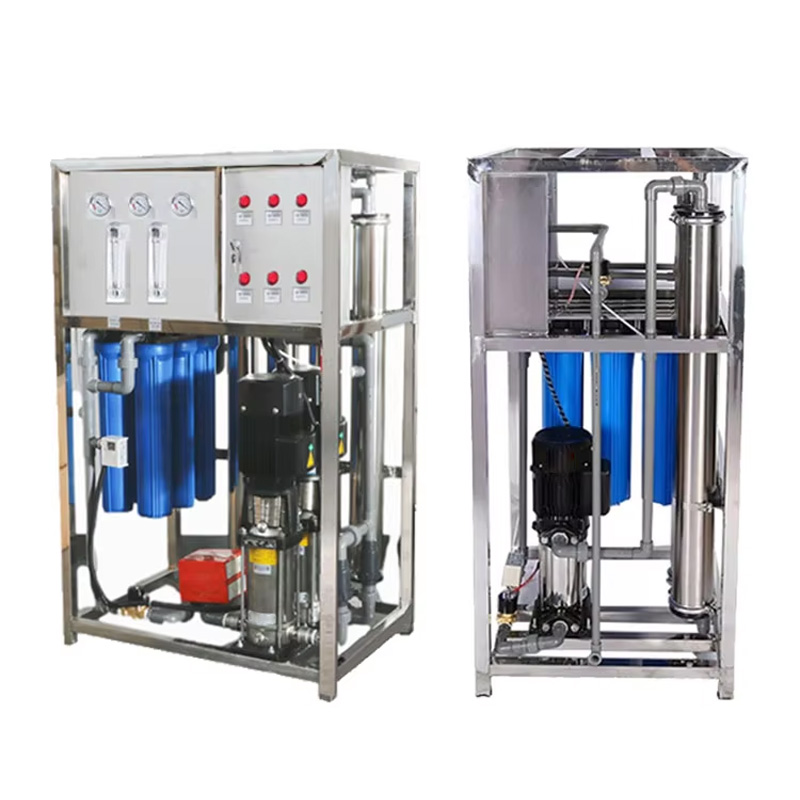

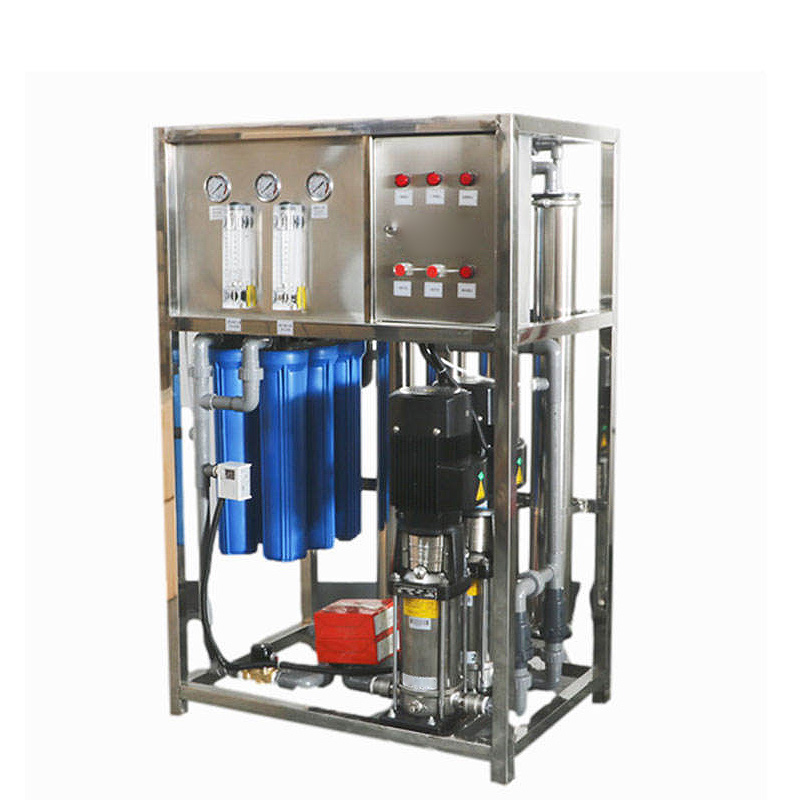

1000LPH Reverse Osmosis System for Industrial Water Treatment

Product Introduction for Reverse Osmosis System

The 1000LPH reverse osmosis system is an industrial water purification unit designed for medium-scale purified water production. With a treatment capacity of 1000 liters per hour, the system integrates multi-stage pretreatment filtration and reverse osmosis membrane technology to deliver stable and efficient water purification performance.

This equipment removes suspended solids, dissolved salts, microorganisms, and organic contaminants from raw water sources, significantly improving water quality for industrial processes. The system structure is compact and designed for reliable continuous operation.

It is widely used in food processing plants, beverage production lines, laboratories, industrial cleaning systems, and various manufacturing processes requiring purified water supply.

Technical Specifications：

Item	Parameter
Product Name	Reverse Osmosis Water Treatment Machine
Technology	Reverse Osmosis Membrane Filtration
Production Capacity	1000 liters per hour
Power Supply	220V/380V 50Hz
Polypropylene Filter (5μm)	20 inches × 2 pieces
UDF Filter	20 inches × 2 pieces
CTO Filter	20 inches × 2 pieces
High-Pressure Pump	1.5 kW
Reverse Osmosis Membrane	ULP31-4040 × 2
Membrane Housing	SS304
Sterilizer Unit	UV or Ozone
Dimensions (L×W×H)	70×100×150 cm

Working principle：

Raw water first passes through a series of pretreatment filters that remove large particles such as sand, rust, and suspended impurities. These filters protect the reverse osmosis membrane and improve system stability.

The water is then pressurized by a booster pump and delivered into the RO membrane module. The semi-permeable membrane allows water molecules to pass while rejecting dissolved salts, bacteria, organic substances, and other contaminants.

Purified water is collected for industrial use, while concentrated impurities are discharged through the wastewater outlet, ensuring continuous and stable purification performance.

Main features：

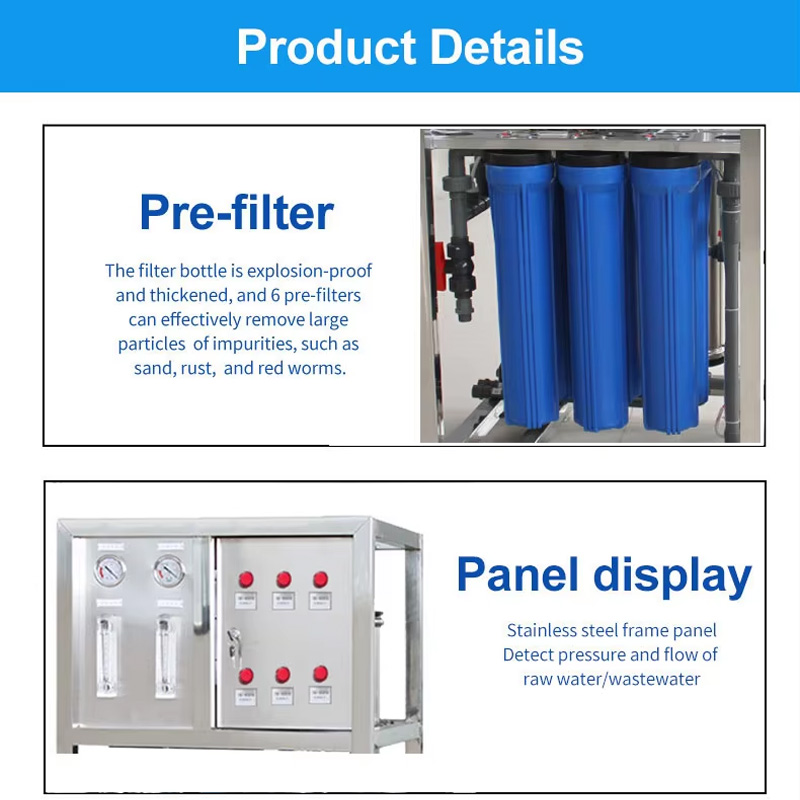

• Multi-stage pretreatment filtration system effectively removes sand, rust, and suspended impurities from raw water

• High-efficiency 4040 reverse osmosis membrane provides high precision filtration and stable purification performance

• Durable stainless steel frame structure ensures strong corrosion resistance and long equipment service life

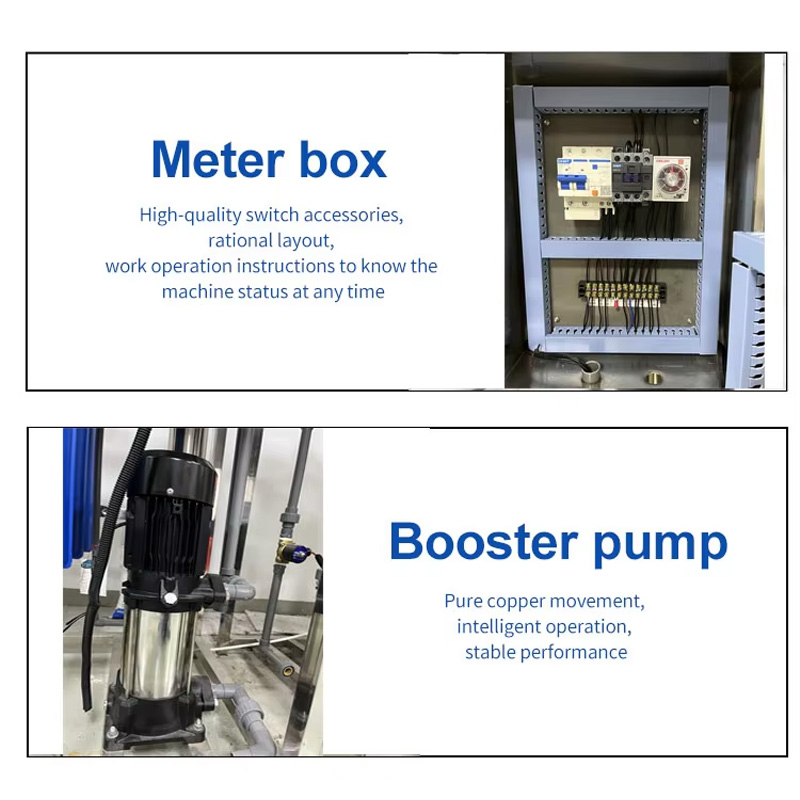

• Integrated booster pump with stable operation ensures consistent pressure for efficient RO membrane filtration

• Panel display system allows convenient monitoring of raw water pressure, wastewater pressure, and system operation





Application scenarios：

• Bottled drinking water production systems

• Beverage and food processing water purification lines

• Laboratory purified water supply systems

• Industrial equipment cleaning and washing water treatment

• Electronics manufacturing process water purification

• Chemical processing and solution preparation water treatment

FAQ

Q1: What is the hourly water output of this RO system?

A: It can stably produce 1000 liters of purified water per hour for industrial use.

Q2: Is this RO system made of stainless steel material?

A: Yes, it adopts 304 stainless steel for corrosion resistance and long service life.

Q3: Is this equipment designed for industrial water treatment?

A: Yes, it is specially built for various industrial water treatment scenarios.

Q4: Does this reverse osmosis system support automatic operation?

A: Yes, it features fully automatic operation and intelligent fault monitoring.
