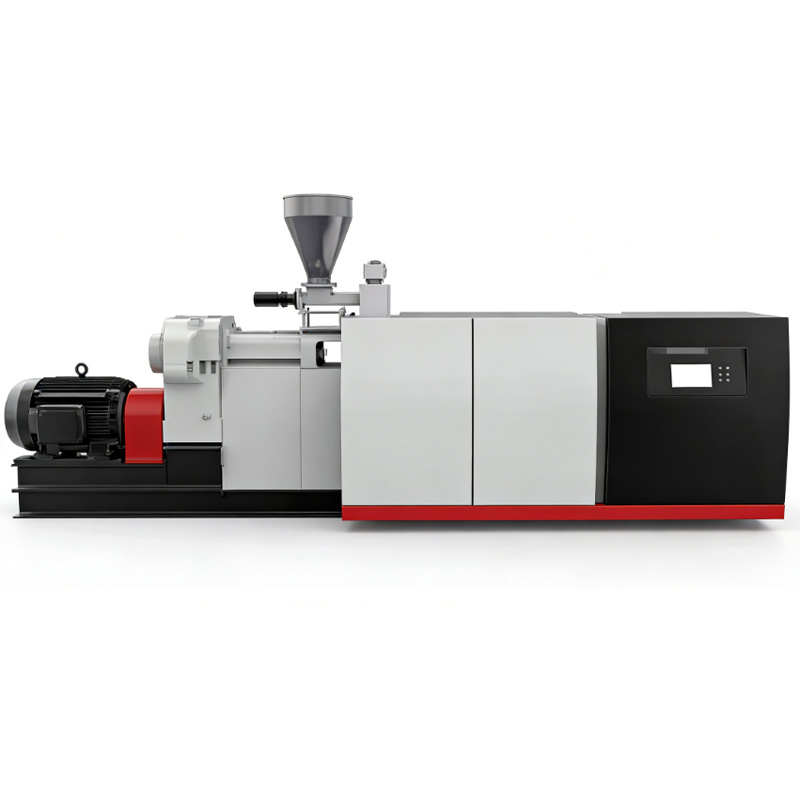

1000kg/h Conical Twin Screw Extruder for Rigid Plastic Waste

Extruder for Rigid Plastic Waste Product Introduction

The 1000kg/h Conical Twin Screw Extruder for Rigid Plastic Waste is designed for high-capacity recycling and re-granulation of rigid plastics. The 1000kg/h system melts and plasticizes PP, PE, ABS, PS, PVB, and PA scraps, then removes trapped air through vacuum degassing and filters impurities.

Its conical twin-screw design ensures uniform melting and high throughput, while modular dies enable processing of various polymer types. The system delivers continuous, stable operation, producing clean and uniform granules suitable for reuse in injection molding, extrusion, and other plastic processing applications.

Working Principle：

Plastic scraps are fed into the hopper of the conical twin-screw extruder. The screws melt and homogenize the material while conveying it forward. A vacuum degassing section removes trapped air and moisture. The molten plastic passes through a filtration system to remove contaminants, and finally, the extruded material is pelletized into uniform granules. PLC controls synchronize screw speed, temperature, and pelletizing process for consistent quality.

Technical Specifications：

Production capacity	1000 kg/h
Screw type	Conical twin screw
Screw diameter	150 mm / 200 mm
L/D ratio	36:1
Motor power	90 kW
Heating zone	6 zones, PID control
Vacuum degassing	Integrated vacuum system, adjustable
Filtration system	Automatic screen changer
Pelletizer type	Strand pelletizer, adjustable granule size
Control system	PLC with touch screen interface
Machine dimensions (L×W×H)	6200 × 1800 × 2200 mm

Main features：

• Conical twin-screw design – Ensures uniform melting and high throughput.
• Vacuum degassing system – Removes trapped air for quality granules.
• Integrated filtration system – Filters impurities and contaminants.
• PLC control system – Synchronizes extrusion, temperature, and pelletizing.
• Continuous high-capacity operation – Suitable for industrial recycling plants.

Application Scenarios：

• Rigid plastic recycling – PP, PE, ABS, PS, PVB, PA scraps.
• Re-granulation for injection molding – Produces clean polymer granules.
• Recycled extrusion feedstock – Suitable for extrusion and profile production.
• Industrial waste management – Efficiently handles high-volume plastic waste.
• Pilot or large-scale recycling plants – Ensures continuous stable operation.

FAQ

• Q: What materials can be processed?
  A: PP, PE, ABS, PS, PVB, and PA rigid plastics.
• Q: Is the system capable of continuous operation?
  A: Yes, it is designed for stable 24/7 high-capacity production.
• Q: How does it remove trapped air?
  A: Through a dedicated vacuum degassing section.
• Q: Can it filter impurities automatically?
  A: Yes, the integrated filtration system removes contaminants during extrusion.
• Q: Are different pellet sizes possible?
  A: Yes, pelletizer settings can adjust granule size according to requirements.
