1 m³ Hydraulic Scrap Handling Grapple for Excavator
The Hydraulic Scrap Handling Grapple is designed for efficient handling of scrap metal, ferrous materials, and mixed debris. Combining hydraulic clamping force with an integrated magnetic system, it ensures strong adhesion and stable lifting performance. The 360 degree rotary disk provides flexible positioning control, improving operational accuracy. Ideal for recycling plants, demolition sites, landscaping projects, agriculture, and forestry operations, this grab enhances material sorting, loading efficiency, and overall work productivity.
Compare
Hydraulic Scrap Handling Grapple Product Introduction
The Hydraulic Scrap Handling Grapple is a 1 m³ capacity excavator attachment designed for efficient handling of ferrous materials in industrial and outdoor environments. Equipped with a built-in magnetic system and durable alloy steel structure, it combines hydraulic clamping force with strong magnetic adhesion to improve material pickup accuracy. This equipment solves the challenge of lifting scattered scrap metal, steel debris, and ferrous waste by ensuring firm contact and stable control during operation. It is suitable for recycling plants, demolition contractors, forestry operators, and agricultural users who require reliable material handling with enhanced gripping stability and operational flexibility.
Product Parameter Table
| Weight | 2900 kg |
| Max jaw opening | 3300 mm |
| Closing height | 2500 mm |
| Working pressure | 260-320 bar |
| Oil flow | 160-200 L/min |
| Magnet diameter | 1015 mm |
| Magnetic lifting capacity | 2-3 T |
| Bucket capacity | 1 m³ |
| Number of jaw | 4 |
| Suitable excavator | 20-45 T |
Main Features
-
Integrated strong magnetic system enhances gripping efficiency for ferrous materials.
-
360 degree rotary disk enables precise clockwise and counterclockwise positioning control.
-
Wear resistant steel grabbing teeth reduce breakage and extend service life.
-
Lightweight alloy steel body improves elasticity while maintaining structural durability.
-
Hydraulic and magnetic dual gripping design increases handling stability.
-
Optimized for excavator compatibility with stable hydraulic performance output.

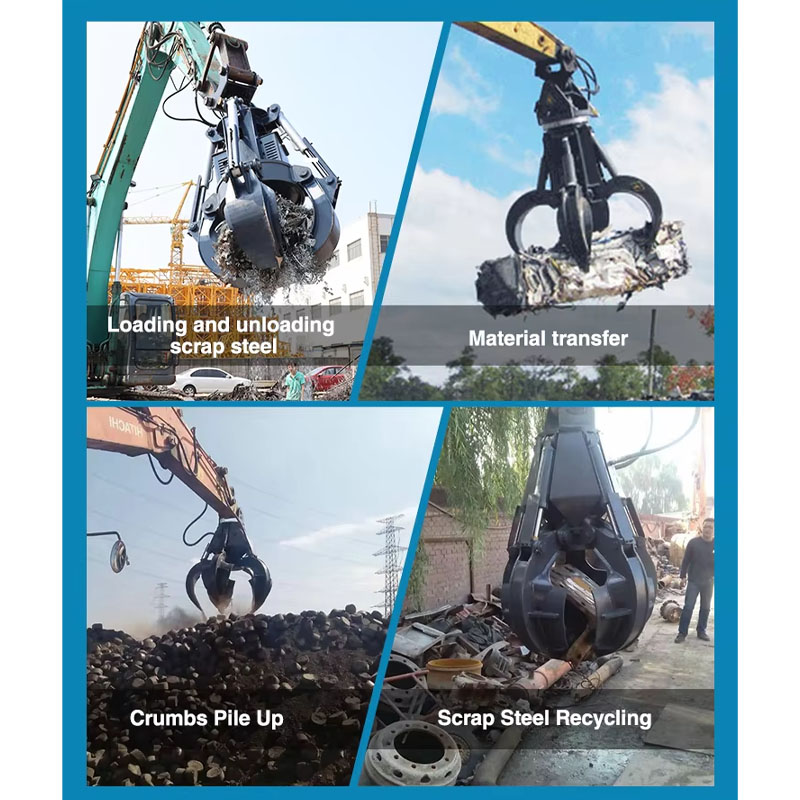

Application Scenarios
-
Scrap metal recycling plants for ferrous material sorting and loading operations
-
Construction and demolition sites handling steel debris and structural waste
-
Landscaping projects for clearing metal scraps and mixed site debris
-
Agricultural farms for equipment yard cleanup and metal waste collection
-
Forestry operations managing timber yards and steel component handling
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
