Air Valve, Pneumatics
1/4″ NPT 5 Way 2 Position Pneumatic Hand Lever Operated Valve Pneumatic Solenoid Valve Manual Control Push Pull

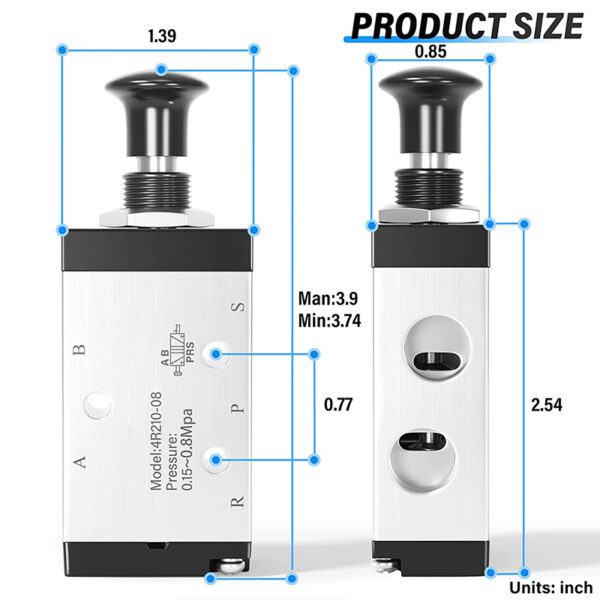

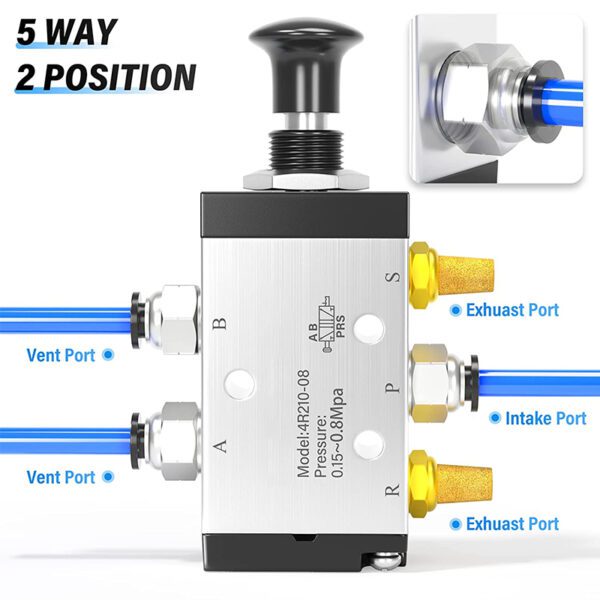

- 【Product Name】 5 Way 2 Position Hand Pull Valve 4R210-08
- 【Size】1/4″NPT 【Working Medium】Air
- 【Working Pressure Range】25Psi~116Psi
- 【Product Features】Controls Air Flow On or Off

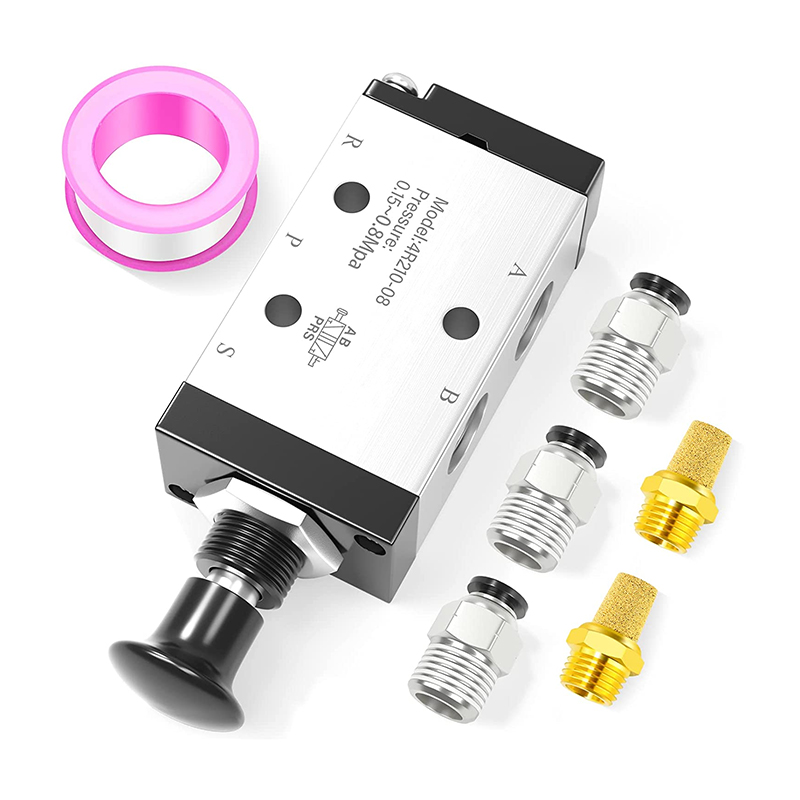

- 【Fittings】We provide matching fittings,You can connect directly to your 1/4 “or 6mm tube
$53.00
Compare- Only 25psi Can Start the Solenoid Valve, Which is Easy to Operate, Easy to Install and Easy to Remove.
- The Valve Body is Made of High Precision Aluminum with High Hardness and Long Service Life.
- Air Inlet Port with 0.04mm Filter Screen, Can Filter Most Impurities and Dust, Keep the Valve Body Clean, Prolong Service Life
- Each Thread is Finely Processed, No Burrs, Smooth and Easy to Install.
- The Valve Body Contains a High Concentricity Seal Ring, Which is Not Easy to Leak, and the Rubber Pad with Lubricating Oil Reduces Friction.
- Each Product Comes with Fittings That Can Be Used Directly. No Need to Buy Additional Accessories, Just Insert 6mm or 1/4″tube.
